8361SRM38.10

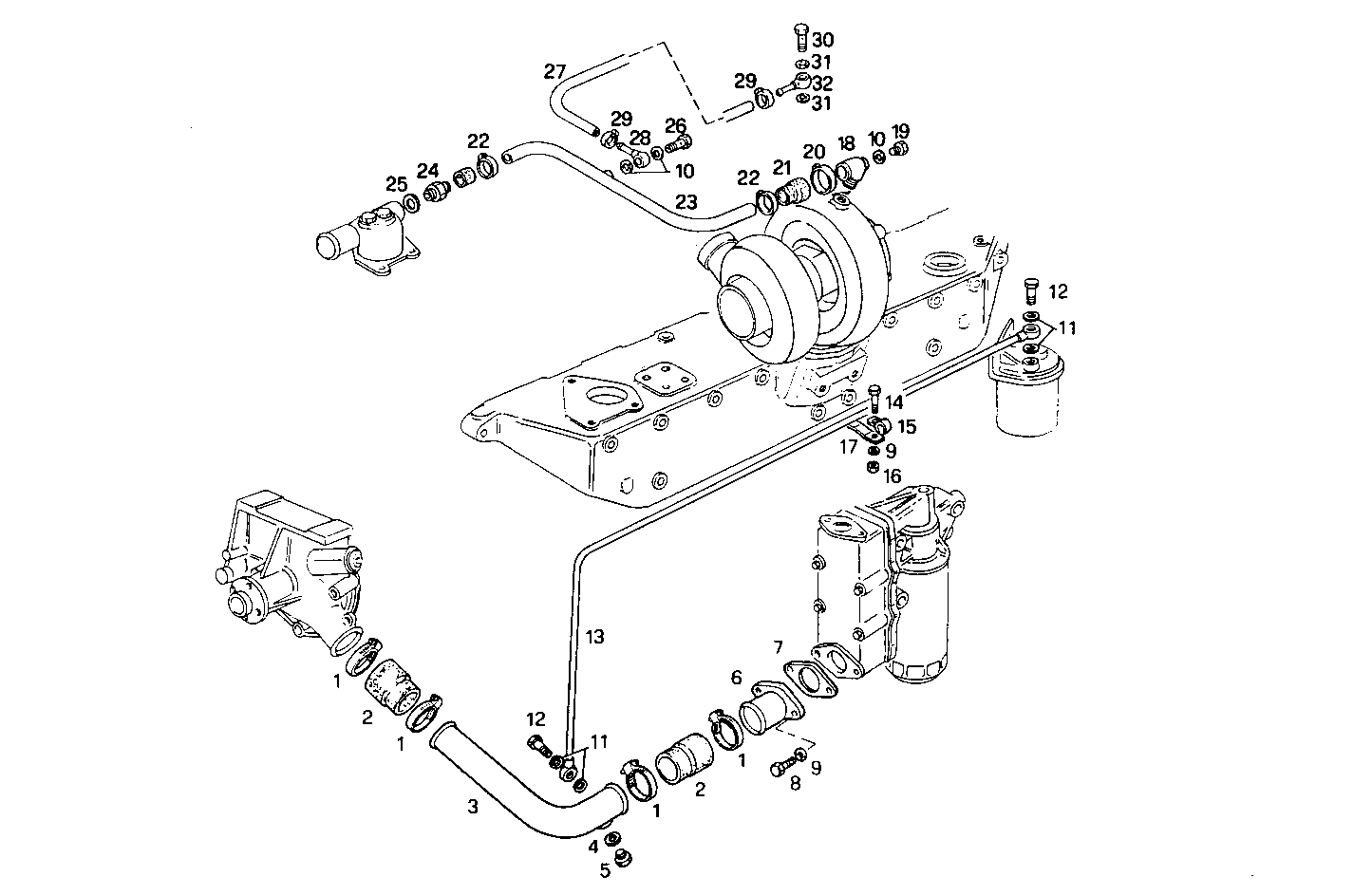

3210.048/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 17764993 CLIP Ø50/70 MM
2 98432897 WATER HOSE
3 8105538 WATER PIPE
4 4858609 WASHER Ø16X22 MM SP=1,5 MM
5 16992440 THREADED PLUG M16X1,5
6 8012033 WATER PIPE
7 98412396 GASKET
8 16046221 HEXAGON BOLT M8X1,25X150 MM
9 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
10 4858606 GASKET Ø10X14X1 MM
11 4858608 SEAL GASKET dia.14x19,5x1,5
12 4864083 SCREW CONNECTOR M14X1,5X30 MM
13 8013889 WATER PIPE
14 16605424 SCREW M8X16 MM (8.8)
15 17316490 CLIP
16 17037931 HEXAGON NUT M8X1,25
17 8100407 RETAINER
18 8008297 PIPE SOCKET
19 11903814 SCREW CONNECTOR M10X1,25X19 MM
20 17764793 CLIP Ø32/50 MM
21 61319110 RUBBER SLEEVE
22 17764693 CLIP Ø25/40 MM
23 8010695 WATER PIPE
24 4605229 FLYWHEEL
25 16508460 WASHER 22x27x1,5
26 4864080 SCREW CONNECTOR M10X1,25
27 8011195 HOSE
28 4671701 SWIVEL COUPLING
29 18088392 CLIP Ø16/25 MM
30 4864082 BANJO BOLT M12X1,5X25 MM
31 4858607 WASHER Ø12X17 MM SP=1,5 MM
32 4722869 SWIVEL COUPLING
