8361SRM38.10

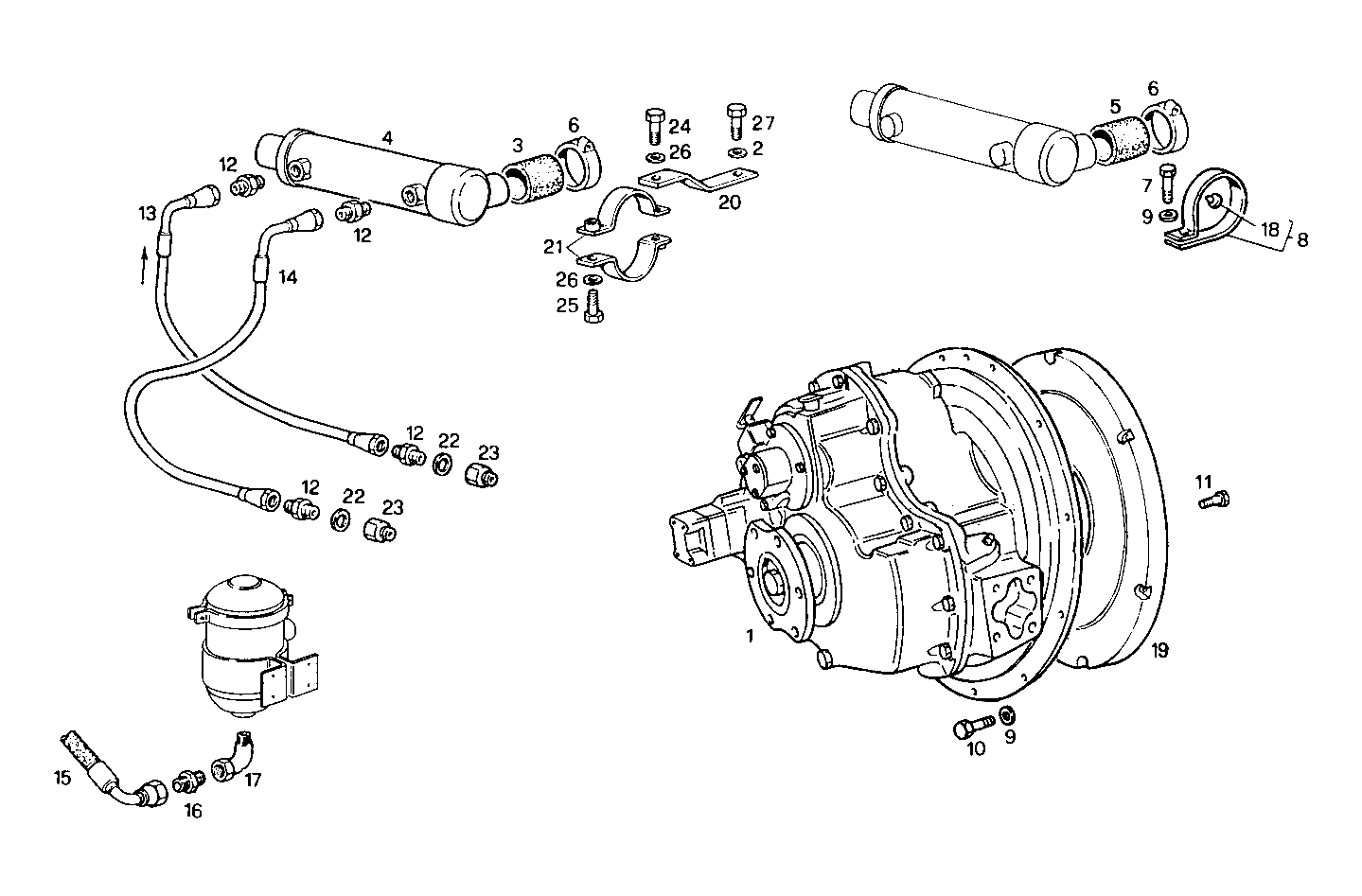

A51300005/01 MARINE GEAR TWIN DISC MG 507 A-1 - ratio 1.51:1

Iveco/FPT MARINE GEAR TWIN DISC MG 507 A-1

Item Part number Description
1 8005818 MARINE GEAR 1,51:1
2 17090174 SPRING WASHER Ø10X20 MM
3 8016662 RUBBER SLEEVE
4 8016304 OIL/WATER HEAT EXCHANGER ASSY
5 17742687 RUBBER SLEEVE
6 17764793 CLIP Ø32/50 MM
7 15004021 HEXAGON BOLT M10X1,25X25 MM
8 8013591 CLIP ASSY [up to 06-93]
9 17090274 WASHER Ø10X20 MM
10 11307021 HEXAGON BOLT M10X40 MM
11 14308021 SCREW M10X1,25X55
12 4935465 PIPE SOCKET
13 8105619 HOSE
14 8105620 HOSE
15 4935779 HOSE
16 4929469 PIPE SOCKET
17 4935263 WATER CONVEYOR
18 4568427 RUBBER PAD
19 8007900 FLEXIBLE COUPLING
20 8100407 RETAINER
21 5116798 CLIP ASSY [from 06-93]
22 4858609 WASHER Ø16X22 MM SP=1,5 MM
23 8100897 PIPE SOCKET 1/2"/M16X1,5
24 16606024 SCREW M8X45 MM
25 16605624 HEXAGON BOLT M8X25 MM (8.8)
26 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
