8361SRM38.11

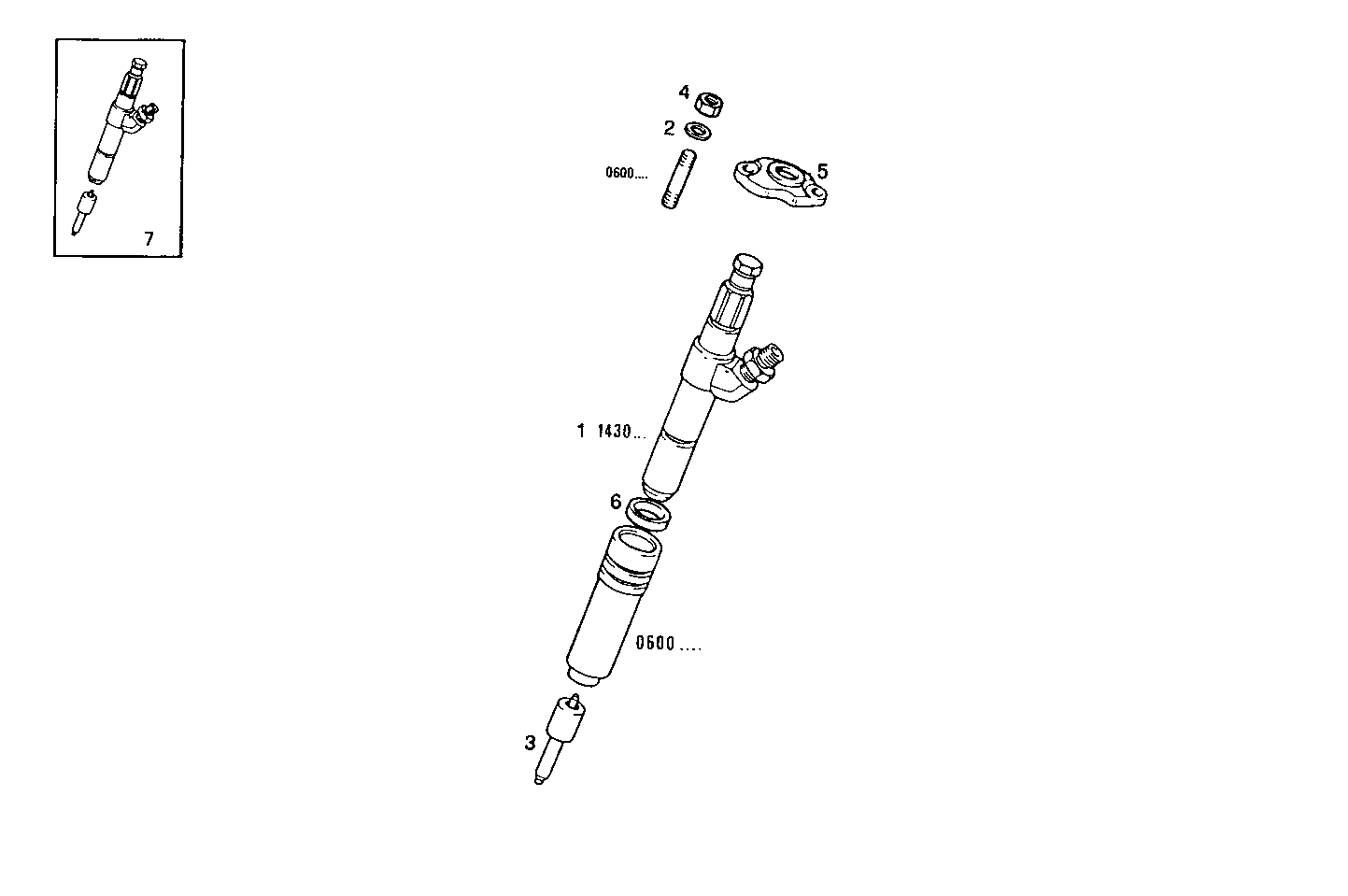

1420.034 INJECTORS
| Item | Part number | Description |
|---|---|---|
| 1 | 771404 | NOZZLE HOLDER ASSY BOSCH |
| 2 | 771326 | WASHER Ø11,5 MM |
| 3 | 98453621 | FUEL NOZZLE |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 4795296 | FASTENING BRACKET |
| 6 | 767111 | WASHER |
| 7 | 8016261 | NOZZLE ASSY BOSCH |
