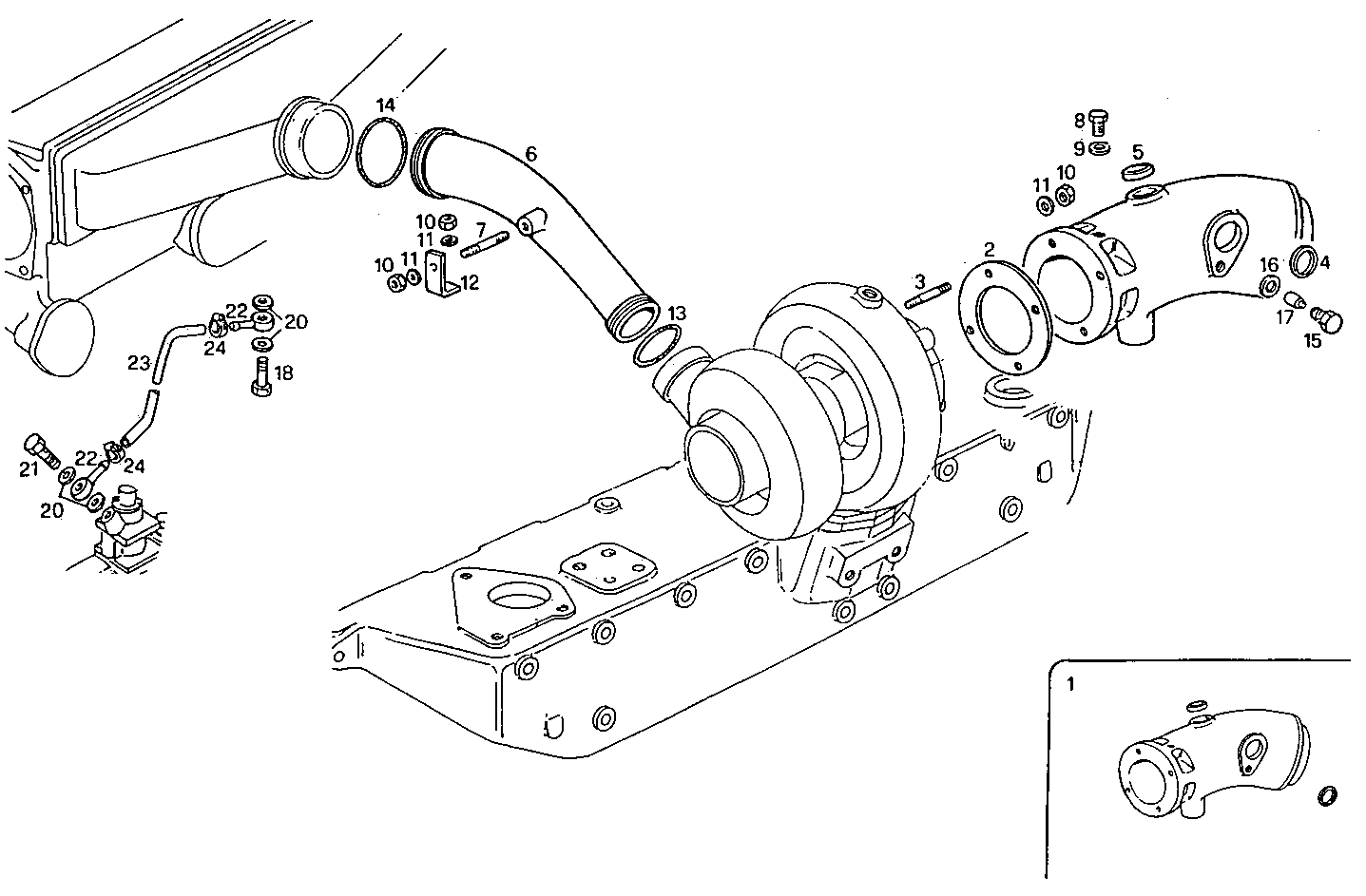

| Item |
Part number |
Description |
|
1 |
8011125 |
EXHAUST COOL. ELBOW |
|
2 |
8111833 |
GASKET |
|
3 |
16729424 |
STUD M8X1,25X25 |
|
4 |
16991170 |
LOCK PLUG Ø36 MM |
|
5 |
16990870 |
LOCK PLUG Ø28 MM |
|
6 |
8110197 |
AIR MANIFOLD |
|
7 |
16729224 |
STUD M8X16 MM |
|
8 |
16992240 |
THREADED PLUG M12X1,5 |
|
9 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
10 |
17037931 |
HEXAGON NUT M8X1,25 |
|
11 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
12 |
8010689 |
RETAINER |
|
13 |
17296181 |
O-RING Ø59,69X5,33 MM |
|
14 |
17296581 |
O-RING Ø72,39X5,33 MM |
|
15 |
8105276 |
PLUG M16 |
|
16 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
17 |
8105277 |
SACRIFICAL ANODE Ø14 MM |
|
18 |
8107452 |
SCREW CONNECTOR |
|
19 |
4927136 |
HOSE |
|
20 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
21 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
22 |
4722869 |
SWIVEL COUPLING |
|
23 |
17764393 |
CLIP Ø12/20 MM |
