8361SRM38.11

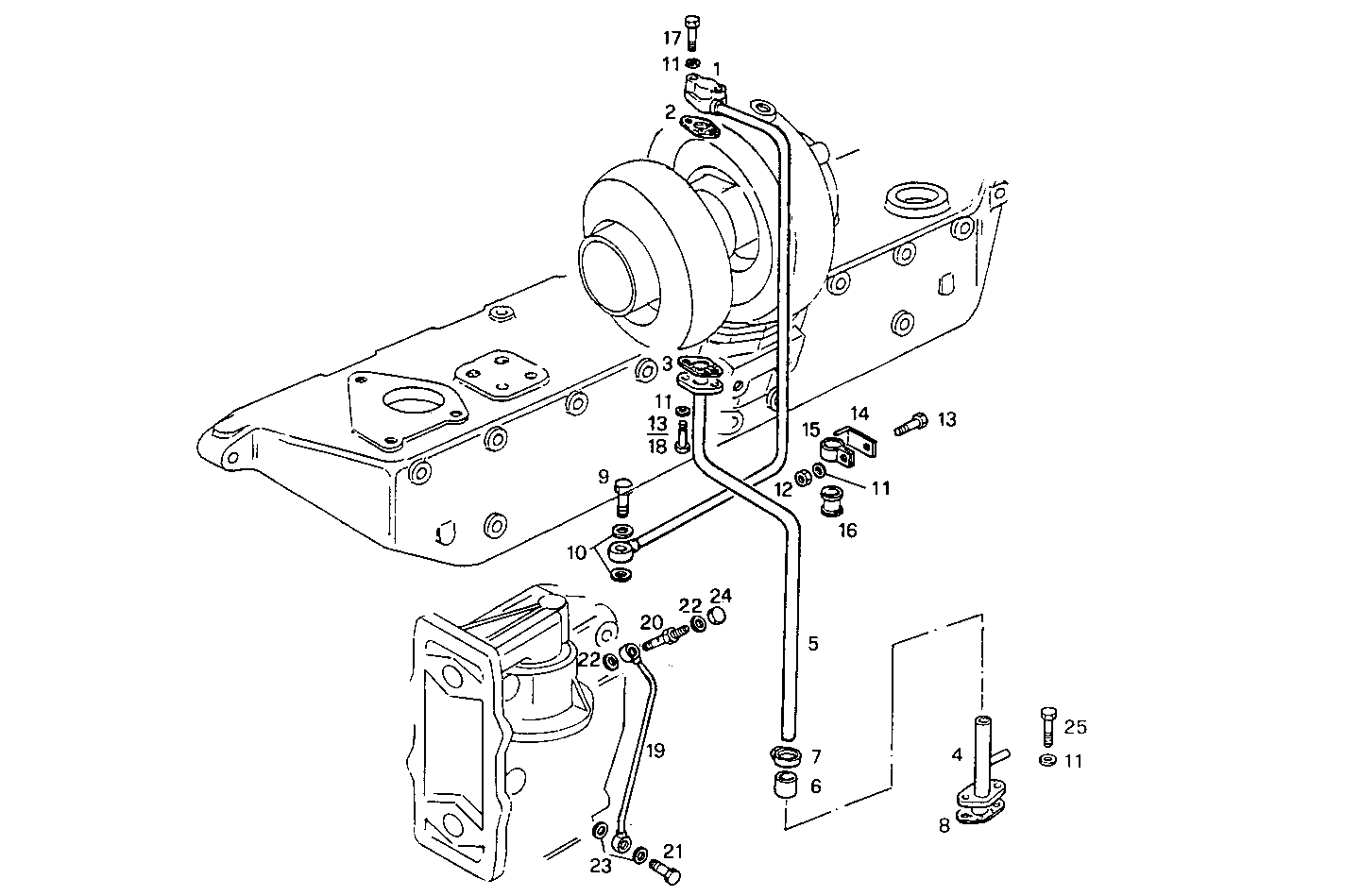

3010.048 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8010764 | OIL LINE |
| 2 | 98415922 | FLAT ENGINE GASKET |
| 3 | 98415923 | FLAT ENGINE GASKET |
| 4 | 8012721 | OIL LINE |
| 5 | 8110346 | OIL LINE |
| 6 | 98420478 | RUBBER SLEEVE |
| 7 | 17764593 | CLIP Ø20/32 MM |
| 8 | 98412099 | GASKET |
| 9 | 4864084 | BANJO BOLT M16X1,5 |
| 10 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 17037931 | HEXAGON NUT M8X1,25 |
| 13 | 16605524 | HEXAGON BOLT M8X20 MM |
| 14 | 8114208 | RETAINER [up to 09-93] |
| 15 | 4755963 | FASTENING BRACKET |
| 16 | 4755964 | RUBBER PAD |
| 17 | 16605824 | HEXAGON BOLT M8X35 MM |
| 18 | 16605734 | HEXAGON BOLT M8X30 MM |
| 19 | 8014822 | OIL LINE |
| 20 | 11901617 | SWIVEL COUPLING |
| 21 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 22 | 4858605 | WASHER Ø8X12 MM |
| 23 | 4858606 | GASKET Ø10X14X1 MM |
| 24 | 11902017 | LOCK PLUG M8 |
| 25 | 16043821 | HEXAGON BOLT M8X30 MM |
