8361SRM38.11

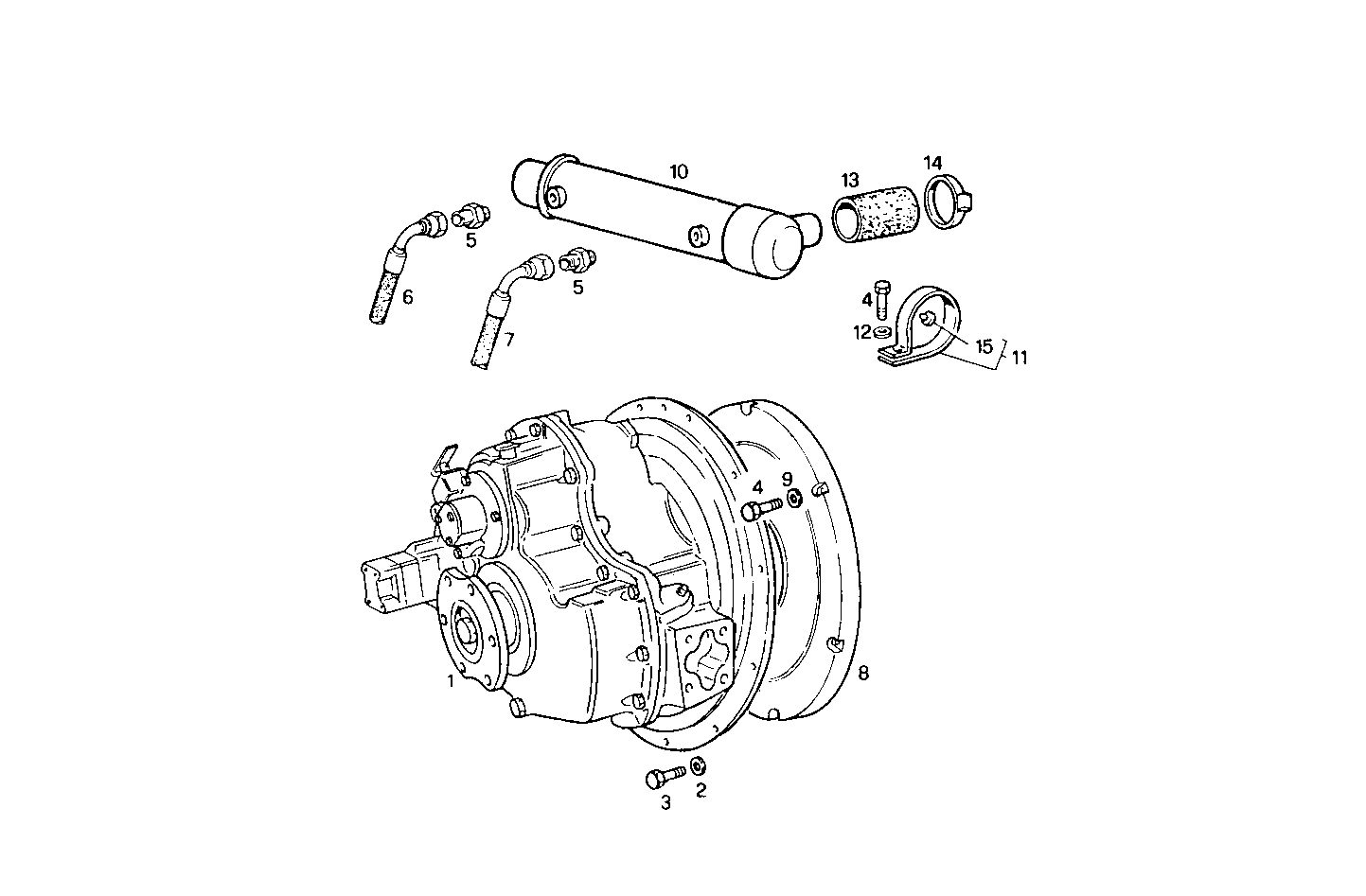

A51200002 MARINE GEAR TWIN DISC MG 507-1 - ratio 1.51:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8014782 | MARINE GEAR 1,51:1 |
| 2 | 17090274 | WASHER Ø10X20 MM |
| 3 | 11306921 | SCREW M10X1,25X30 |
| 4 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 5 | 4935465 | PIPE SOCKET |
| 6 | 8105619 | HOSE |
| 7 | 8105620 | HOSE |
| 8 | 8014543 | FLEXIBLE COUPLING |
| 9 | 17494934 | WASHER Ø10X18,1X2,2 MM |
| 10 | 4919188 | MARINE GEAR OIL HEAT EXCH ASSY |
| 11 | 8013591 | CLIP ASSY [up to 06-93] |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 17742687 | RUBBER SLEEVE |
| 14 | 17764993 | CLIP Ø50/70 MM |
| 15 | 4568427 | RUBBER PAD |
