8361SRM38.11

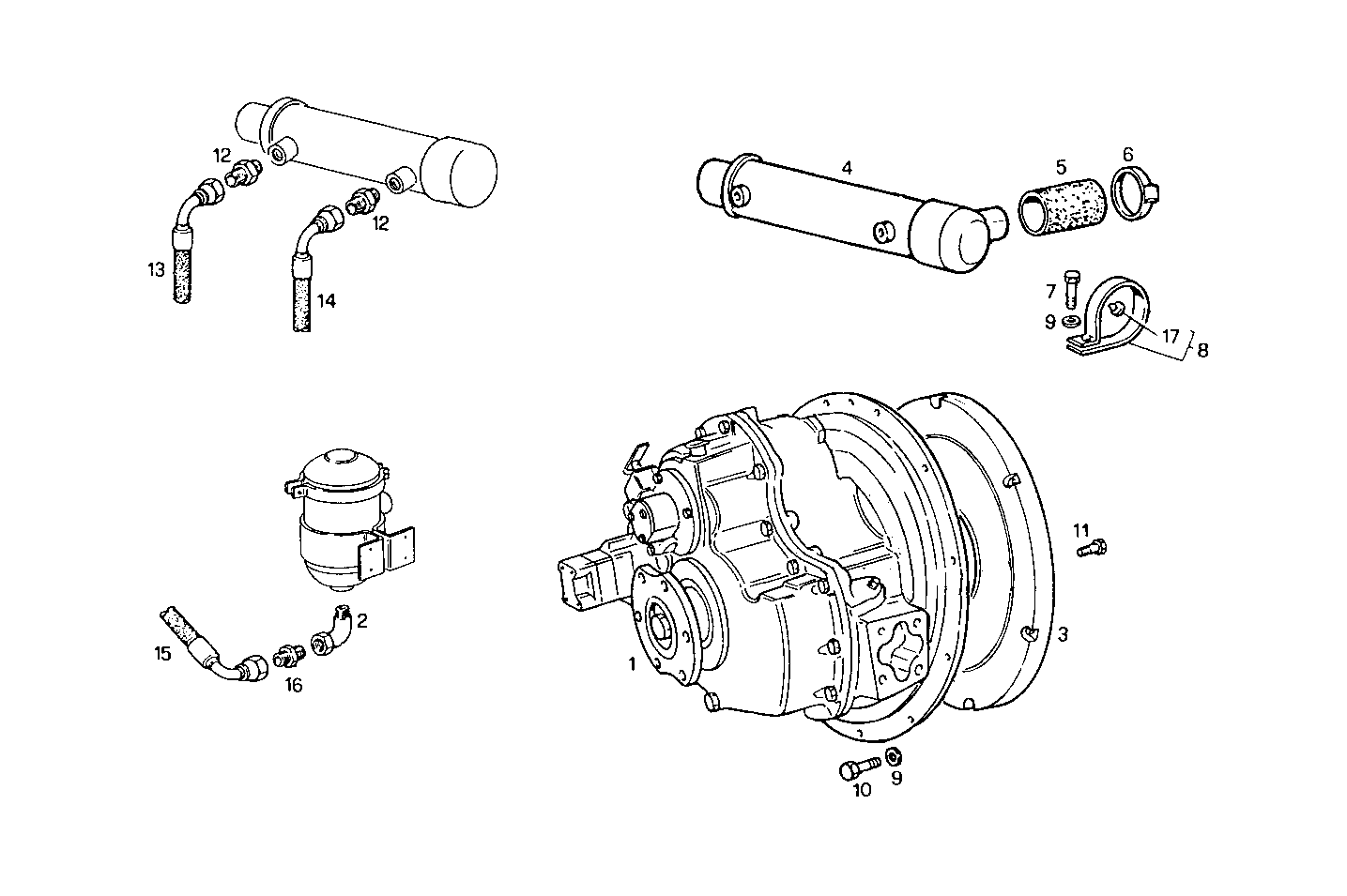

A51300007 MARINE GEAR TWIN DISC MG 507 A-1 - ratio 1.51:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8005818 | MARINE GEAR 1,51:1 |
| 2 | 4935263 | WATER CONVEYOR |
| 3 | 8007900 | FLEXIBLE COUPLING |
| 4 | 4919188 | MARINE GEAR OIL HEAT EXCH ASSY |
| 5 | 17742687 | RUBBER SLEEVE |
| 6 | 17764992 | CLIP Ø50-70 MM |
| 7 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 8 | 8013591 | CLIP ASSY [up to 06-93] |
| 9 | 17090174 | SPRING WASHER Ø10X20 MM |
| 10 | 11307021 | HEXAGON BOLT M10X40 MM |
| 11 | 14308024 | CYLIND-HEAD SCREW |
| 12 | 4935465 | PIPE SOCKET |
| 13 | 8105619 | HOSE |
| 14 | 8105620 | HOSE |
| 15 | 4935779 | HOSE |
| 16 | 4929469 | PIPE SOCKET |
| 17 | 4568427 | RUBBER PAD |
