8361SRM38.11

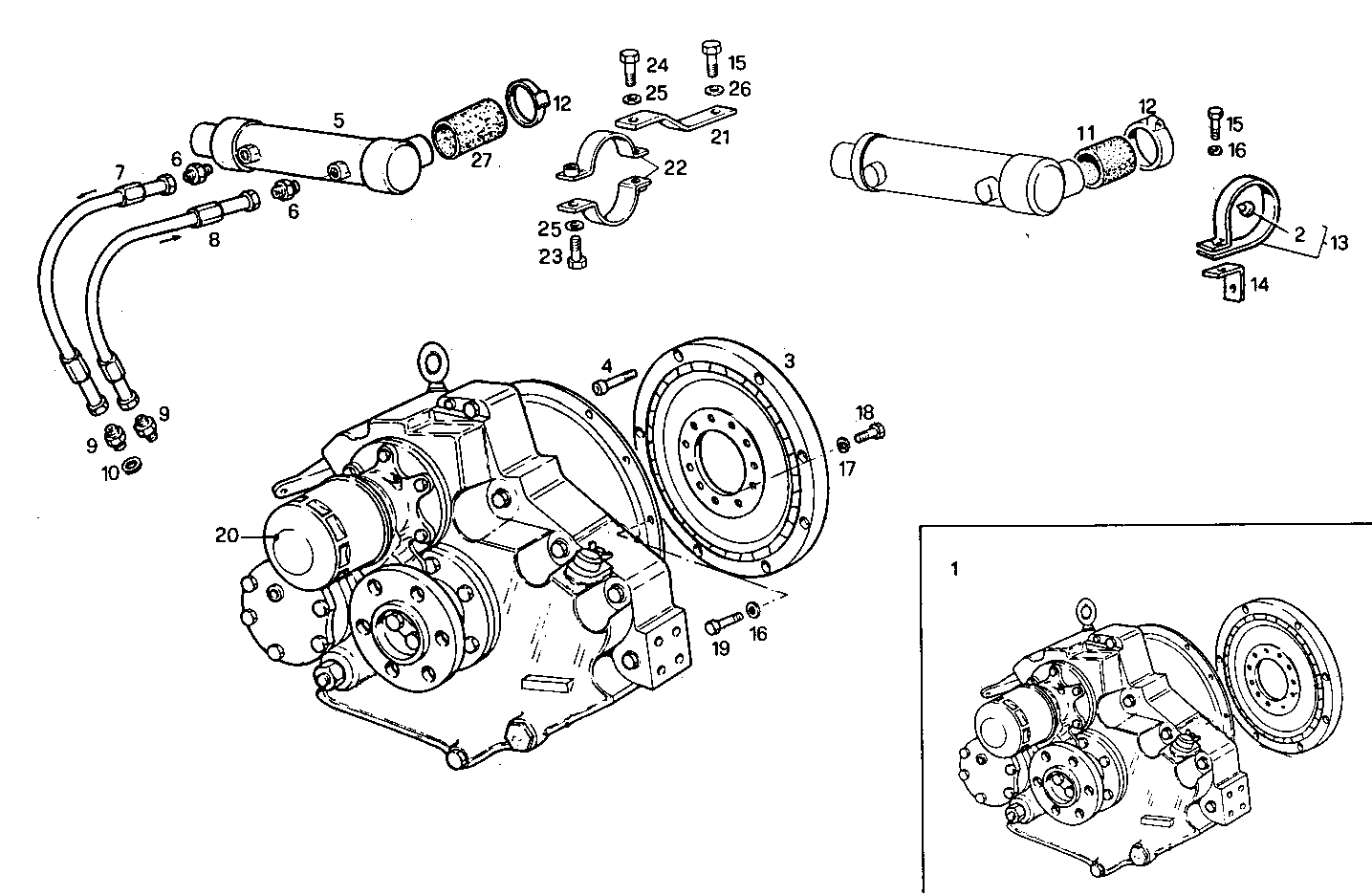

A51400011/01 MARINE GEAR ZF-MPM IRM 301-A2 (ang. 10º) - ratio 2.90:1

Iveco/FPT MARINE GEAR ZF-MPM IRM 301-A2 (ang. 10º)

Item Part number Description
1 8114324 MARINE GEAR 2.90:1
2 4568427 RUBBER PAD
3 8006783 FLEXIBLE COUPLING
4 14307921 SCREW
5 8016304 OIL/WATER HEAT EXCHANGER ASSY
6 4935465 PIPE SOCKET
7 8105619 HOSE
8 8105620 HOSE
9 8100897 PIPE SOCKET 1/2"/M16X1,5
10 4858609 WASHER Ø16X22 MM SP=1,5 MM
11 17742687 RUBBER SLEEVE
12 17764793 CLIP Ø32/50 MM
13 8013591 CLIP ASSY [up to 06-93]
14 8103023 RETAINER
15 15004021 HEXAGON BOLT M10X1,25X25 MM
16 17090274 WASHER Ø10X20 MM
17 17091174 SPRING WASHER Ø12X24 MM
18 15540521 SCREW M12X1,25X35
19 11306921 SCREW M10X1,25X30
20 8107191 OIL FILTER CARTRIDGE TECNOCAR
21 8100407 RETAINER
22 5116798 CLIP ASSY [from 06-93]
23 16605624 HEXAGON BOLT M8X25 MM (8.8)
24 16606024 SCREW M8X45 MM
25 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
26 17090174 SPRING WASHER Ø10X20 MM
27 8016662 RUBBER SLEEVE
