8361SRM38.11

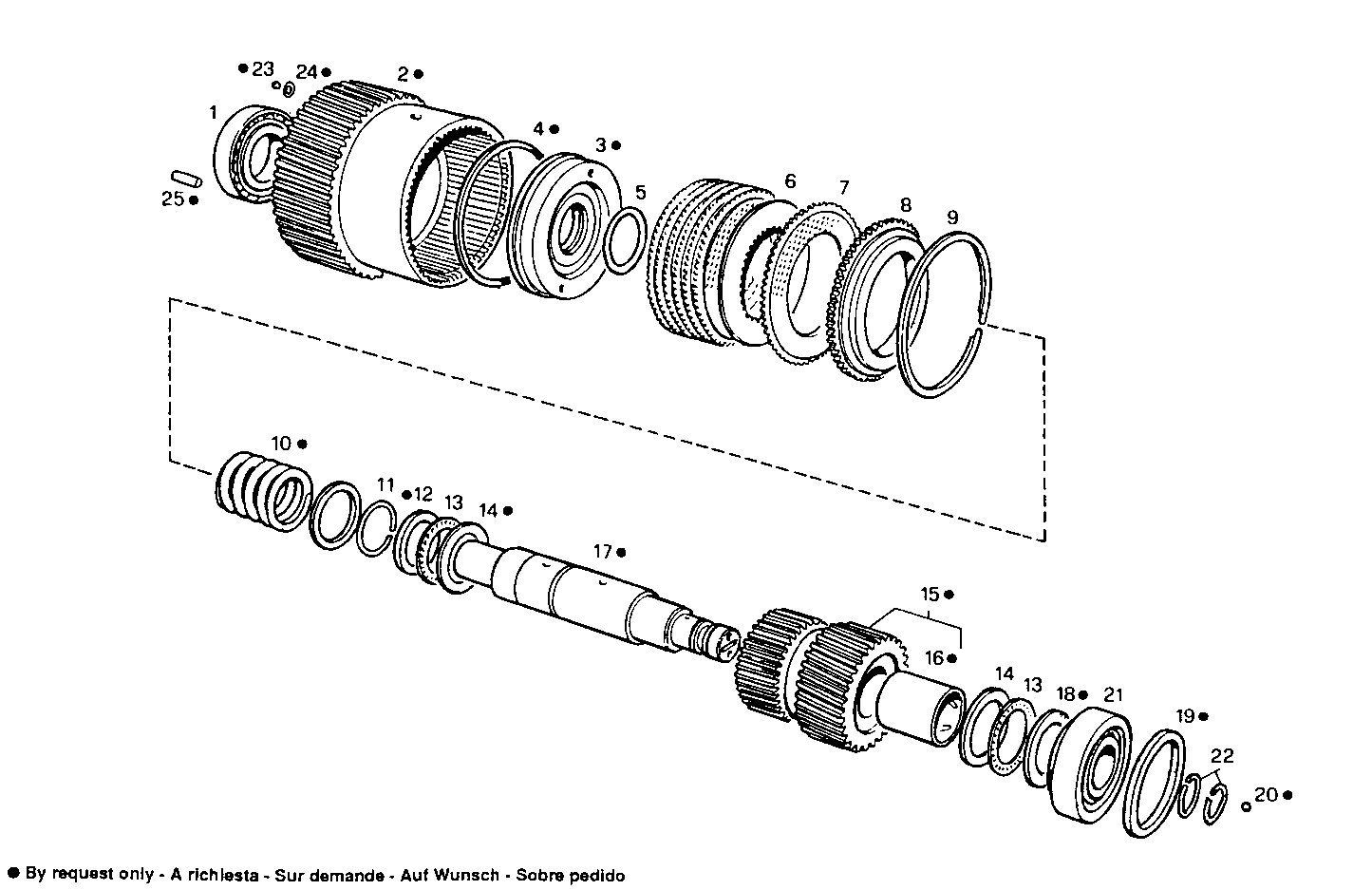

T5130001/04 MARINE GEAR - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 8092069 | DRIVE BEARING |
| 5 | 8092070 | O-RING |
| 6 | 8092071 | GEAR |
| 7 | 8092072 | GEAR |
| 8 | 8092073 | GEAR |
| 9 | 8092074 | CIRCLIP |
| 11 | 8092075 | CIRCLIP |
| 13 | 8092076 | THRUST BEARING |
| 21 | 8092077 | DRIVE BEARING |
| 22 | 8090473 | CIRCLIP |
