8361SRM40.00

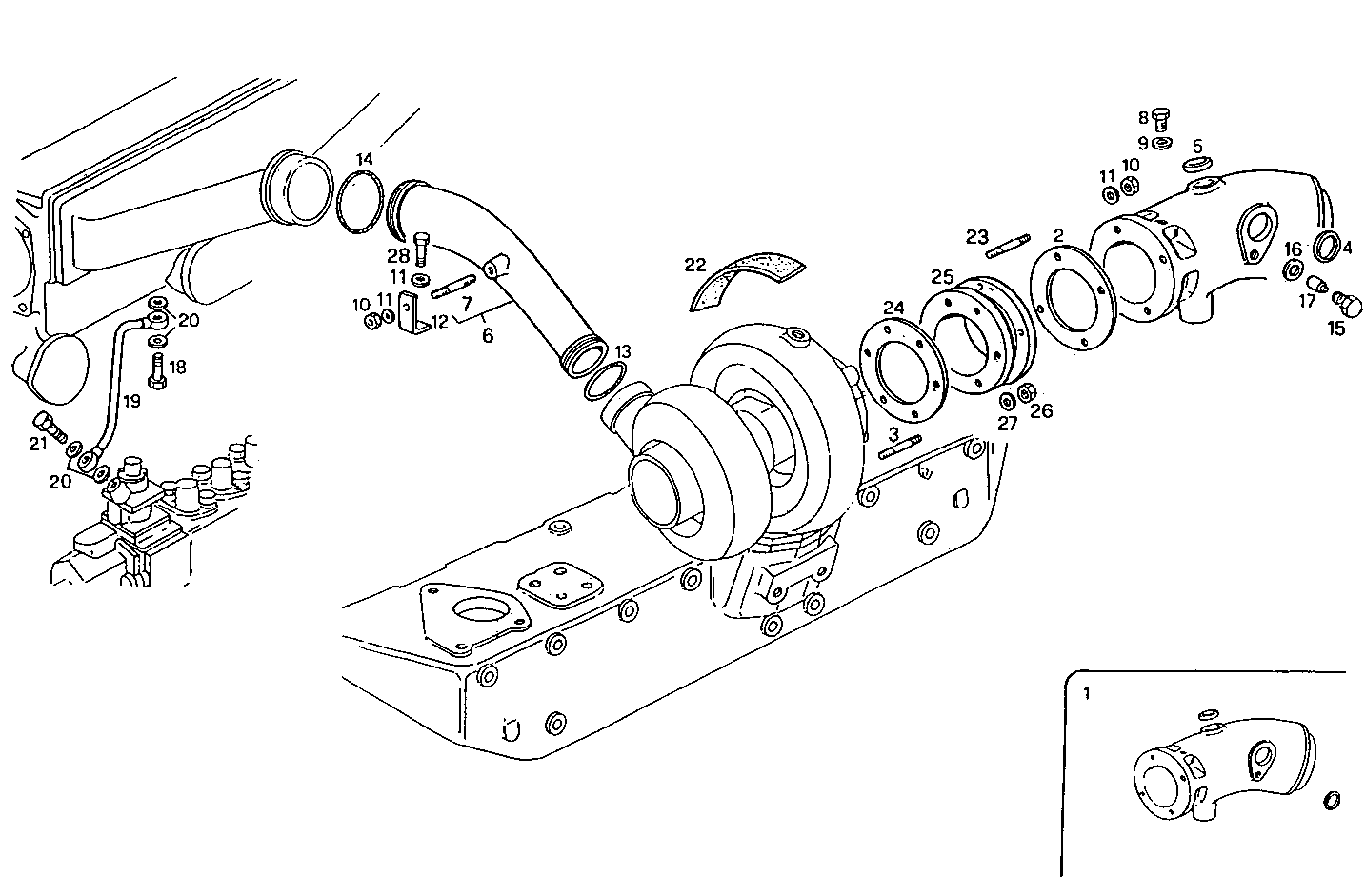

2420.050 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8011125 EXHAUST COOL. ELBOW
2 8111833 GASKET
3 13516821 STUD M8X12X20 MM
4 16991170 LOCK PLUG Ø36 MM
5 16990870 LOCK PLUG Ø28 MM
6 8104494 AIR MANIFOLD ASSY
7 13516621 STUD M8X16 MM
8 16992240 THREADED PLUG M12X1,5
9 4858607 WASHER Ø12X17 MM SP=1,5 MM
10 17037931 HEXAGON NUT M8X1,25
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 8105271 RETAINER
13 17296181 O-RING Ø59,69X5,33 MM
14 17296581 O-RING Ø72,39X5,33 MM
15 4917793 PLUG M18
16 4858609 WASHER Ø16X22 MM SP=1,5 MM
17 8105277 SACRIFICAL ANODE Ø14 MM
18 8107452 SCREW CONNECTOR
19 8012641 AIR PIPE/DUCT
21 4864082 BANJO BOLT M12X1,5X25 MM
22 8101542 PROTECTION
23 13717021 STUD
24 4772331 SEAL GASKET
25 8014208 SPACING BAR
26 17038221 HEXAGON NUT M10
27 17090174 SPRING WASHER Ø10X20 MM
28 16043421 HEXAGON BOLT M8X20 MM
