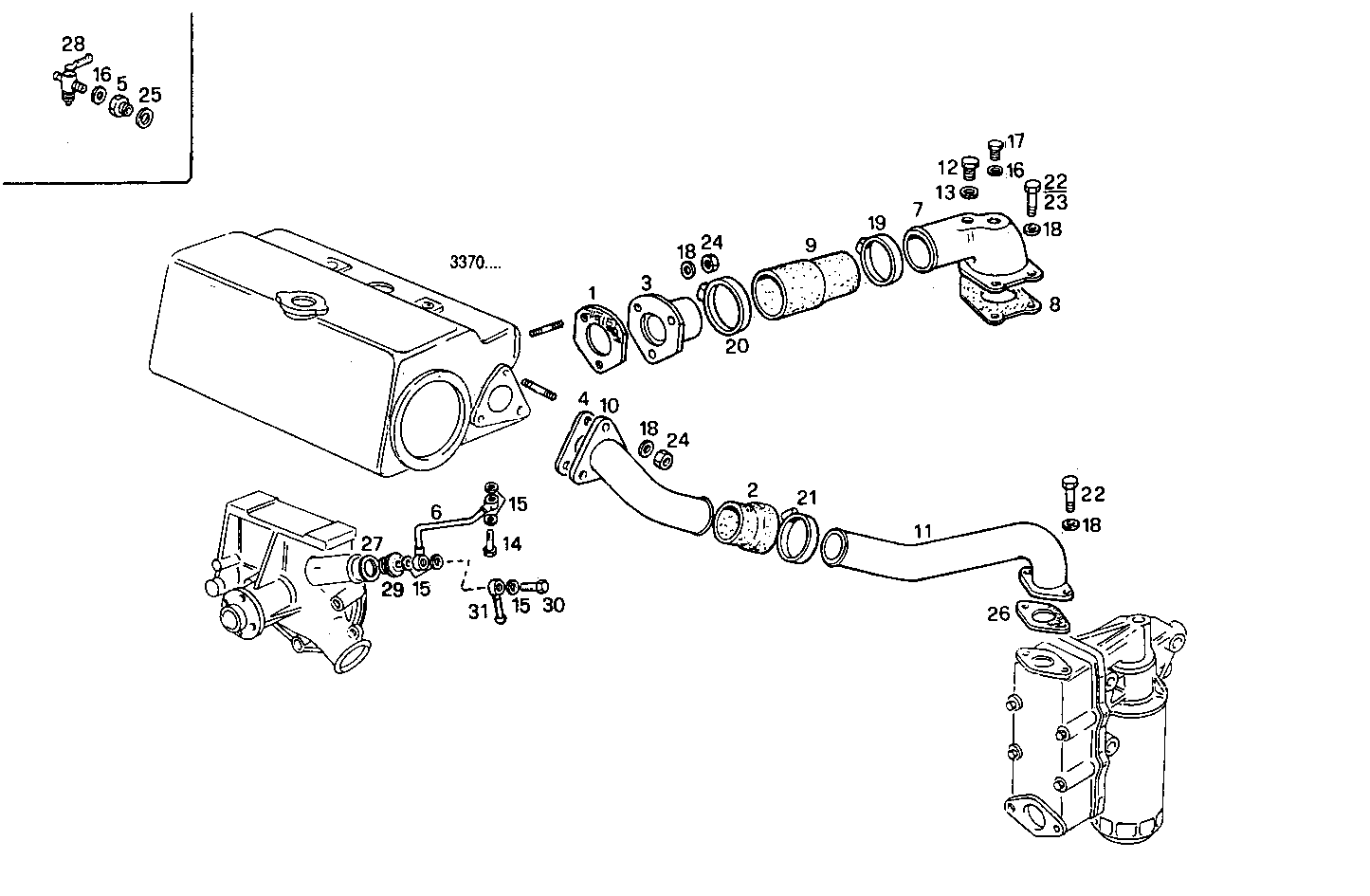

| Item |
Part number |
Description |
|
1 |
8013464 |
GASKET |
|
2 |
98432897 |
WATER HOSE |
|
3 |
4918819 |
WATER PIPE |
|
4 |
8009905 |
GASKET |
|
5 |
8103321 |
PIPE SOCKET |
|
6 |
8010758 |
WATER PIPE |
|
7 |
2830082 |
CRANKCASE ASSY |
|
8 |
8009915 |
GASKET |
|
9 |
8110485 |
RUBBER SLEEVE |
|
10 |
4934309 |
WATER PIPE |
|
11 |
8105499 |
WATER PIPE |
|
12 |
16992460 |
PLUG M16X1.5 |
|
13 |
10263460 |
WASHER �22X28X1,5 MM |
|
14 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
15 |
4858607 |
WASHER �12X17 MM SP=1,5 MM |
|
16 |
4858609 |
WASHER �16X22 MM SP=1,5 MM |
|
17 |
16992440 |
THREADED PLUG M16X1,5 |
|
18 |
17089474 |
SPRING WASHER �8X16 MM SP=1,4 MM |
|
19 |
17765093 |
CLIP �60/80 MM |
|
20 |
17765193 |
CLIP �70/90 MM |
|
21 |
17764993 |
CLIP �50/70 MM |
|
22 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
23 |
16606424 |
HEXAGON BOLT M8X65 MM |
|
24 |
17037931 |
HEXAGON NUT M8X1,25 |
|
25 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
26 |
98412396 |
GASKET |
|
27 |
10265160 |
SEAL GASKET �35,3 MM |
|
28 |
8113445 |
DRAIN COCK |
|
29 |
4934984 |
PLUG |
|
30 |
8009696 |
SCREW CONNECTOR M12X1,5X25 |
|
31 |
98434018 |
THREADED UNION |
