8361SRM40.01

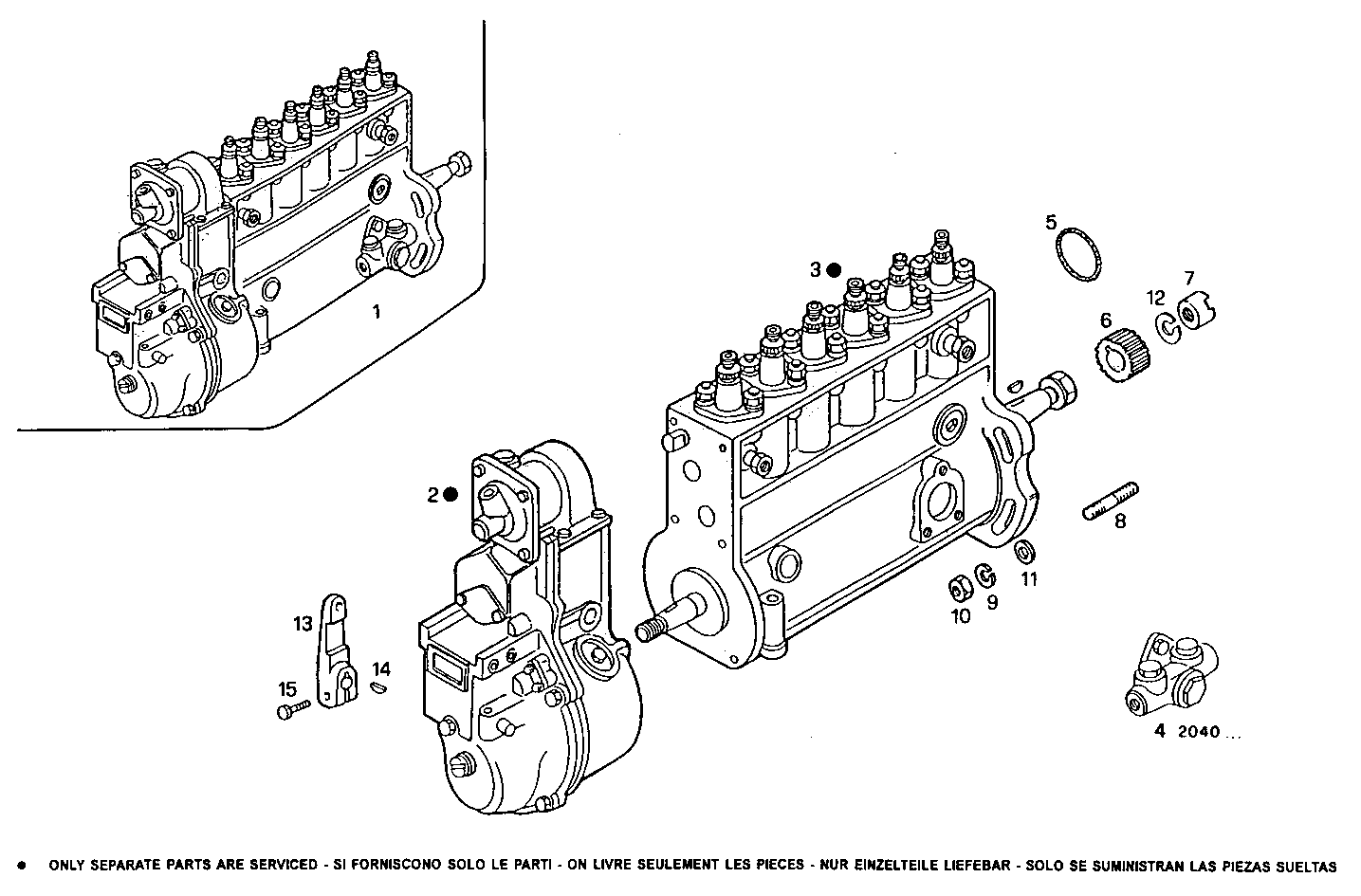

1400.099 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8016274 INLINE INJECT.PUMP ASSY BOSCH
4 93160510 FUEL PUMP OPT.
5 61584604 O-RING
6 8010650 BUSH
7 8010651 NUT
8 13450121 STUD M10X15X50
9 17090274 WASHER Ø10X20 MM
10 17038221 HEXAGON NUT M10
11 759850 WASHER Ø10X21X2 MM
12 8010562 WASHER
13 8110753 LEVER
14 8101048 KEY 3X5X12,5
15 10977721 HEXAGON BOLT M5X14 MM
