8361SRM40.01

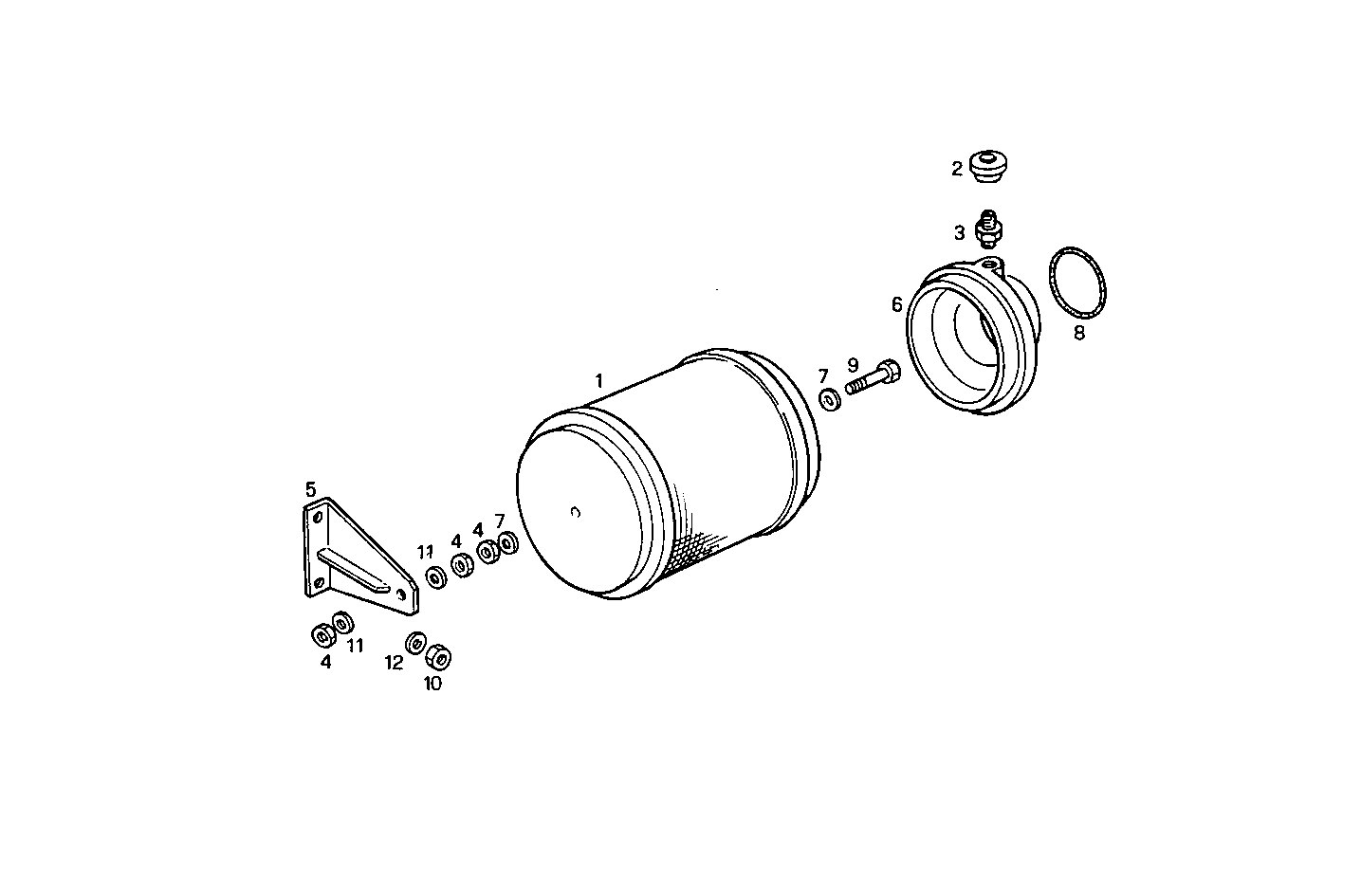

2210.020 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8111553 | AIR CLEANER ASSY |
| 2 | 2427063 | AIR PRESSURE GAUGE |
| 3 | 8009522 | PIPE SOCKET |
| 4 | 17038121 | HEXAGON NUT M10 |
| 5 | 8112215 | RETAINER [up to ...] |
| 6 | 8111028 | AIR MANIFOLD |
| 7 | 12644321 | WASHER Ø10X35 MM |
| 8 | 17285081 | O-RING Ø67,94 MM SP=2,62 MM |
| 9 | 16608024 | HEXAGON BOLT M10X1,25X45 MM |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
