8361SRM40.10

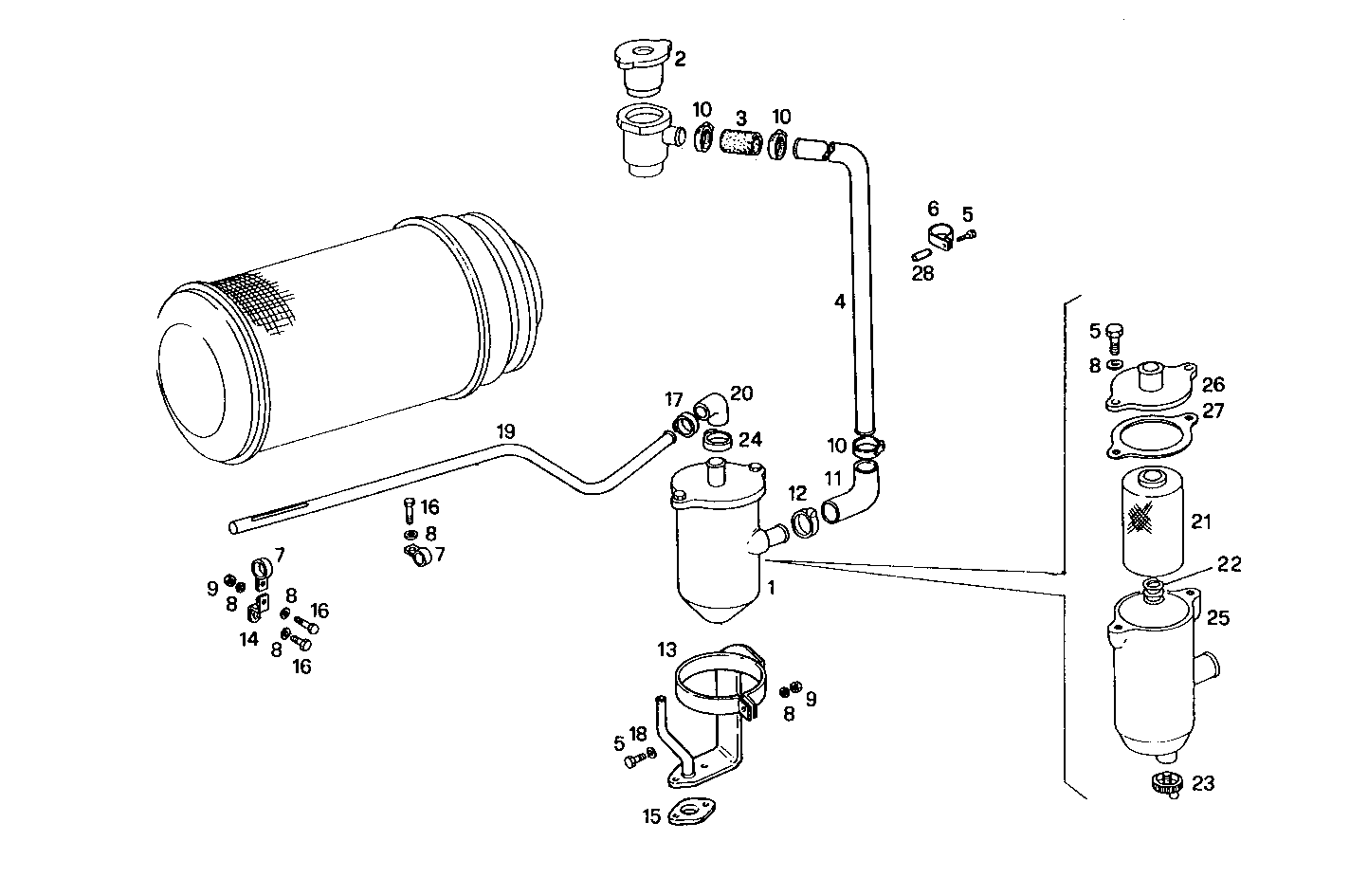

0450.142 ENGINE BREATHERS [D 04-1998] [from04-1998]
| Item | Part number | Description |
|---|---|---|
| 1 | 8025344 | BREATHER ASSY |
| 2 | 8823136 | LOCK PLUG |
| 3 | 17740287 | RUBBER SLEEVE |
| 4 | 8026338 | OIL LINE |
| 5 | 16605524 | HEXAGON BOLT M8X20 MM |
| 6 | 4760226 | FASTENING BRACKET |
| 7 | 17316899 | CLIP |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 17764693 | CLIP Ø25/40 MM |
| 11 | 8026350 | RUBBER SLEEVE |
| 12 | 17764793 | CLIP Ø32/50 MM |
| 13 | 8025799 | RETAINER |
| 14 | 8020682 | RETAINER |
| 15 | 98412099 | GASKET |
| 16 | 16605424 | SCREW M8X16 MM (8.8) |
| 17 | 18088392 | CLIP Ø16/25 MM |
| 18 | 17094904 | WASHER Ø8X16X1,6 MM |
| 19 | 8026339 | OIL LINE |
| 20 | 99441783 | RUBBER SLEEVE |
| 21 | 4788504 | FUEL FILTER ELEM. |
| 22 | 4965120 | SPRING |
| 23 | 8023893 | PLUG |
| 24 | 17764593 | CLIP Ø20/32 MM |
| 25 | 8023825 | BREATHER |
| 26 | 8025345 | COVER |
| 27 | 8023819 | GASKET |
| 28 | 17816314 | SPACING BAR Ø8,5X18 MM SP=15 MM |
