8361SRM40.10

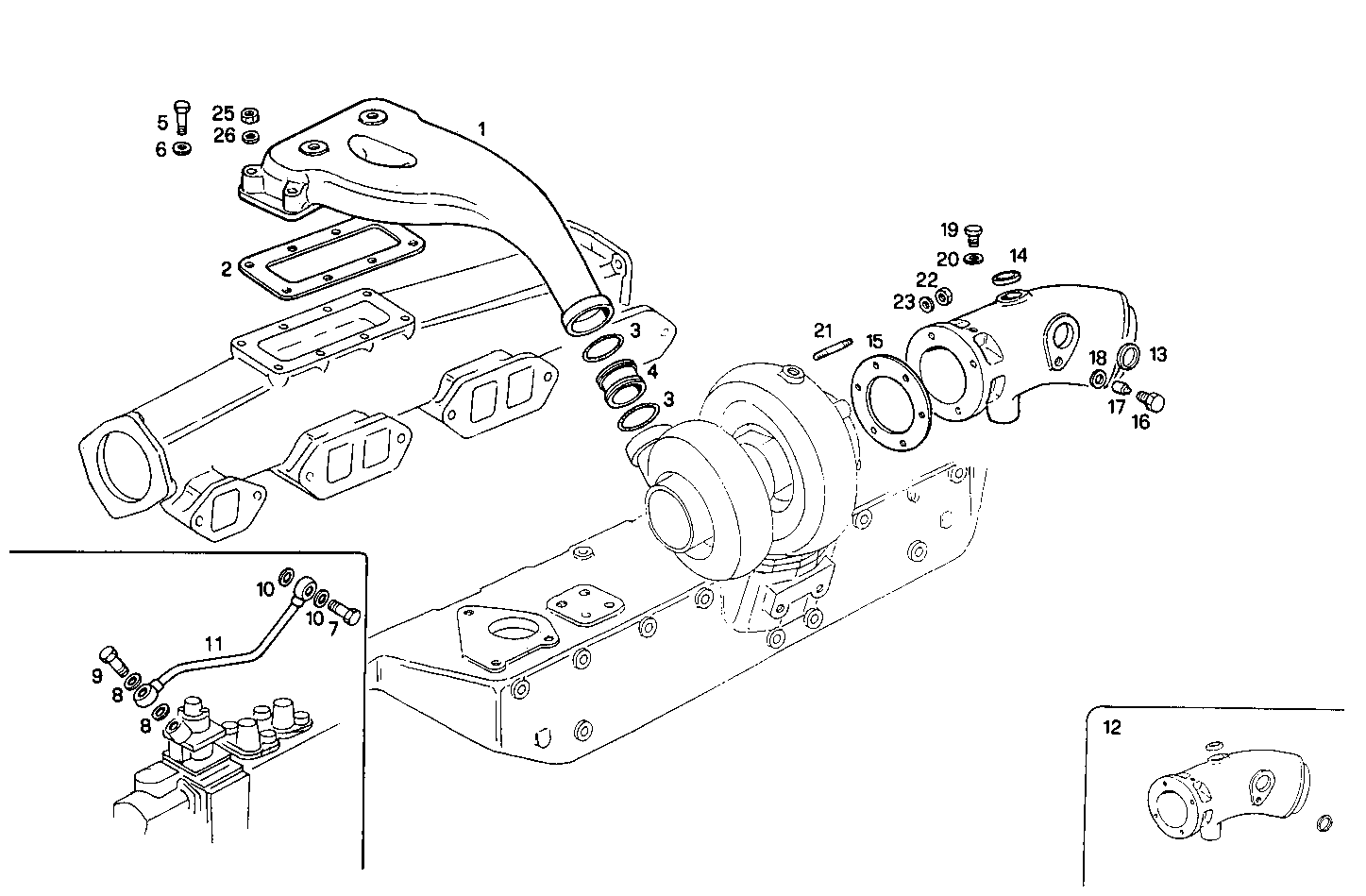

2420.073 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8017208 INTAKE ELBOW
2 8019078 GASKET
3 17296181 O-RING Ø59,69X5,33 MM
4 8017252 WATER HOSE
5 8023383 SCREW M10X45
6 17793804 WASHER Ø8X21X1,5 MM
7 4864079 SCREW CONNECTOR M10X1
8 98474306 WASHER Ø12X20 MM SP=1,9 MM
9 4864082 BANJO BOLT M12X1,5X25 MM
10 98474305 WASHER Ø10X17 MM SP=2,3
11 8017577 AIR PIPE/DUCT L=380MM
12 8020359 EXHAUST COOL. ELBOW ASSY
13 16991170 LOCK PLUG Ø36 MM
14 16990870 LOCK PLUG Ø28 MM
15 8111833 GASKET
16 8105276 PLUG M16
17 8105277 SACRIFICAL ANODE Ø14 MM
18 4858609 WASHER Ø16X22 MM SP=1,5 MM
19 16992240 THREADED PLUG M12X1,5
20 4858607 WASHER Ø12X17 MM SP=1,5 MM
21 16729424 STUD M8X1,25X25
22 17308531 NUT M8
23 17094914 WASHER 8x16
