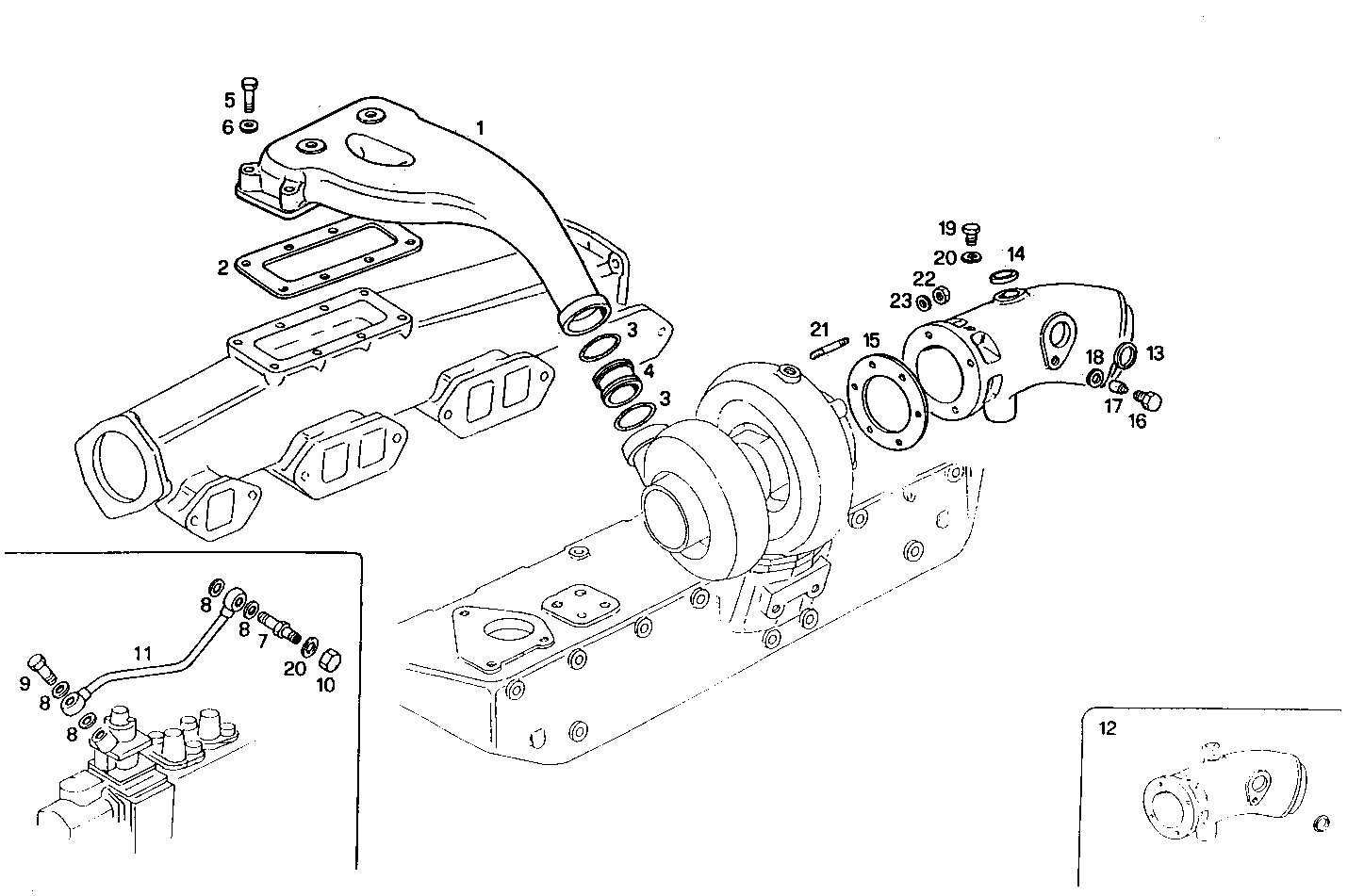

| Item |
Part number |
Description |
|
1 |
8017208 |
INTAKE ELBOW |
|
2 |
8019078 |
GASKET |
|
3 |
17296181 |
O-RING �59,69X5,33 MM |
|
4 |
8017252 |
WATER HOSE |
|
5 |
8023383 |
SCREW M10X45 |
|
6 |
17793804 |
WASHER �8X21X1,5 MM |
|
7 |
10180211 |
SWIVEL COUPLING M10X1 |
|
8 |
98474306 |
WASHER �12X20 MM SP=1,9 MM |
|
9 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
10 |
10183217 |
LOCK PLUG M12X1,5 |
|
11 |
8021640 |
HOSE |
|
12 |
8020359 |
EXHAUST COOL. ELBOW ASSY |
|
13 |
16991170 |
LOCK PLUG �36 MM |
|
14 |
16990870 |
LOCK PLUG �28 MM |
|
15 |
8111833 |
GASKET |
|
16 |
8105276 |
PLUG M16 |
|
17 |
8105277 |
SACRIFICAL ANODE �14 MM |
|
18 |
4858609 |
WASHER �16X22 MM SP=1,5 MM |
|
19 |
16992240 |
THREADED PLUG M12X1,5 |
|
20 |
4858607 |
WASHER �12X17 MM SP=1,5 MM |
|
21 |
16729424 |
STUD M8X1,25X25 |
|
22 |
17308531 |
NUT M8 |
|
23 |
17094914 |
WASHER 8x16 |
