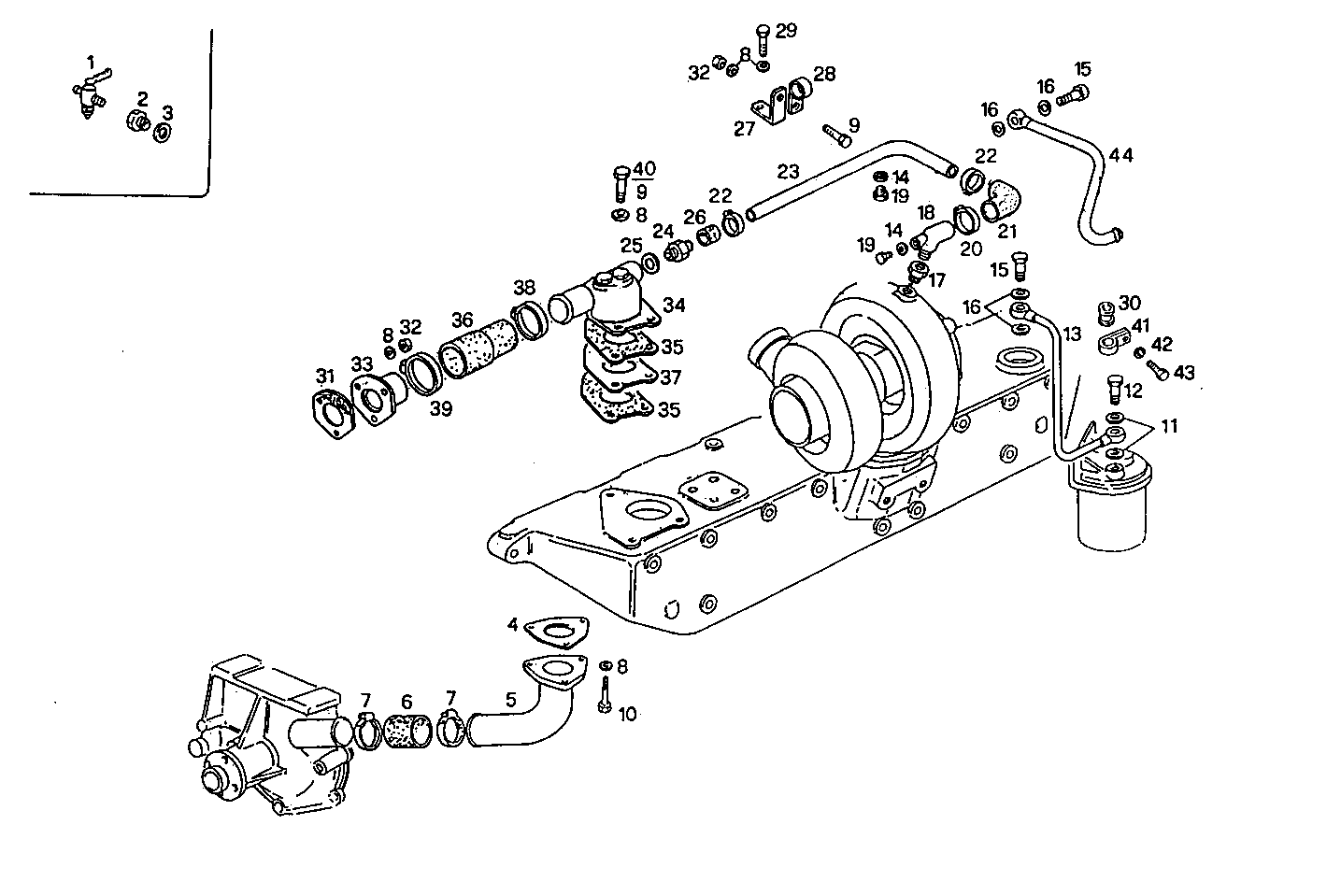

| Item |
Part number |
Description |
|
1 |
8113445 |
DRAIN COCK |
|
2 |
8103321 |
PIPE SOCKET |
|
3 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
4 |
8009905 |
GASKET |
|
5 |
8018640 |
WATER PIPE |
|
6 |
17744687 |
FILTER HOSE |
|
7 |
17764993 |
CLIP Ø50/70 MM |
|
8 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
9 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
10 |
16043521 |
SCREW M8X22 |
|
11 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
12 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
13 |
8017546 |
WATER PIPE |
|
14 |
4858606 |
GASKET Ø10X14X1 MM |
|
15 |
8012607 |
SCREW CONNECTOR |
|
16 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
17 |
8008297 |
PIPE SOCKET |
|
18 |
4605529 |
RUBBER SLEEVE |
|
19 |
11903811 |
SCREW CONNECTOR M10X1,25 |
|
20 |
17764793 |
CLIP Ø32/50 MM |
|
21 |
8015523 |
RUBBER SLEEVE Ø30 - Ø25 MM |
|
22 |
17764693 |
CLIP Ø25/40 MM |
|
23 |
8018762 |
WATER PIPE |
|
24 |
8110702 |
PIPE SOCKET |
|
25 |
10263460 |
WASHER Ø22X28X1,5 MM |
|
26 |
17740187 |
RUBBER SLEEVE |
|
27 |
8102705 |
RETAINER |
|
28 |
4763804 |
FASTENING BRACKET |
|
29 |
16605424 |
SCREW M8X16 MM (8.8) |
|
30 |
4755964 |
RUBBER PAD |
|
31 |
8013464 |
GASKET |
|
32 |
17037931 |
HEXAGON NUT M8X1,25 |
|
33 |
4918819 |
WATER PIPE |
|
34 |
8103967 |
WATER PIPE |
|
35 |
8009915 |
GASKET |
|
36 |
8110485 |
RUBBER SLEEVE |
|
37 |
8010397 |
SPACING BAR |
|
38 |
17765093 |
CLIP Ø60/80 MM |
|
39 |
17765193 |
CLIP Ø70/90 MM |
|
40 |
16606424 |
HEXAGON BOLT M8X65 MM |
|
41 |
4755963 |
FASTENING BRACKET |
|
42 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
43 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
44 |
8022992 |
WATER PIPE |
