8361SRM40.11

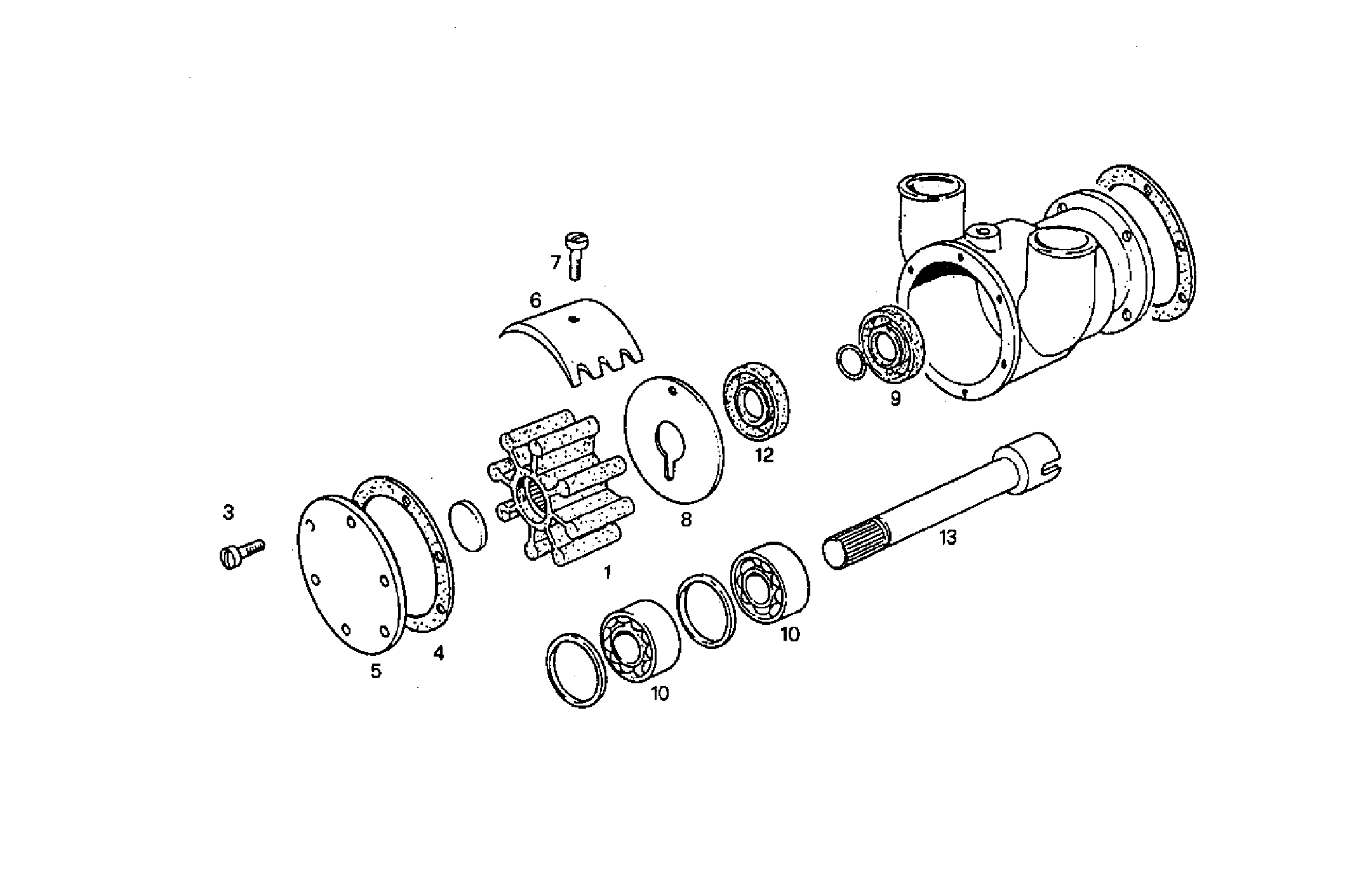

3380.032/02 SEA WATER PUMP - JABSCO

Iveco/FPT SEA WATER PUMP

Item Part number Description
1 8106207 SEA WATER PUMP IMPELL.
3 8093345 SCREW
4 4914944 GASKET
5 4914945 COVER
6 8106286 RETAINING CAM
7 8093336 SCREW
8 4914941 WASHER
9 8093346 WASHER
10 8106247 DRIVE BEARING
12 8112168 GASKET
13 8093348 SHAFT
