8361SRM40.40

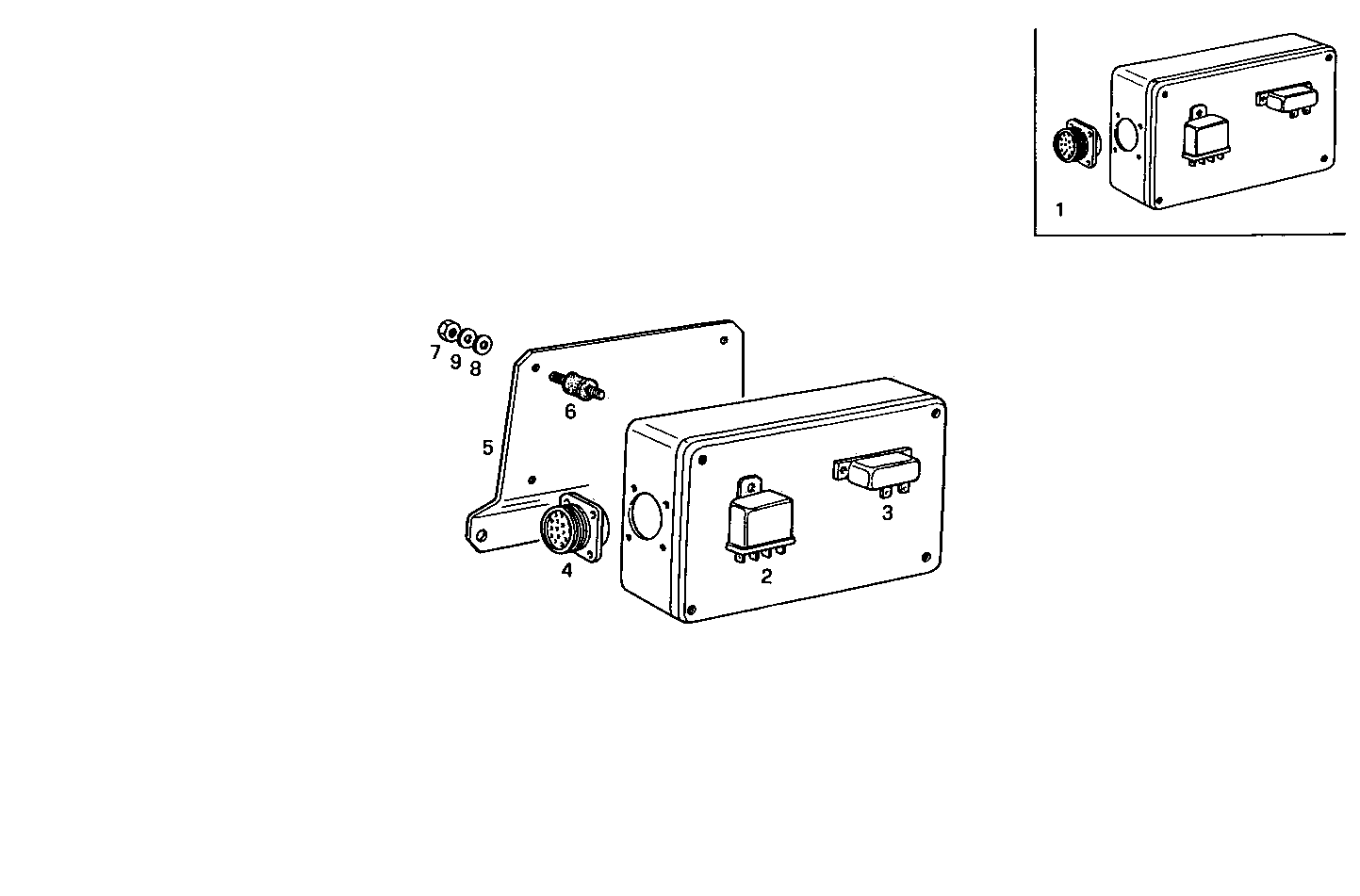

A38100054 ELECTRIC WIRING - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8020687 | ENGINE STOP ASSY [from 05-95] |
| 2 | 8108575 | RELAY STARTER [up to 12-90] |
| 3 | 8109519 | RELAY STOP [up to 05-95] |
| 4 | 8113170 | CONNECTION ASSY |
| 5 | 8017595 | RETAINER |
| 6 | 4910949 | RUBBER LUG |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 8 | 17094714 | WASHER Ø6,4X12 MM |
| 9 | 17710074 | WASHER Ø6X11 MM |
