8361SRM40.41

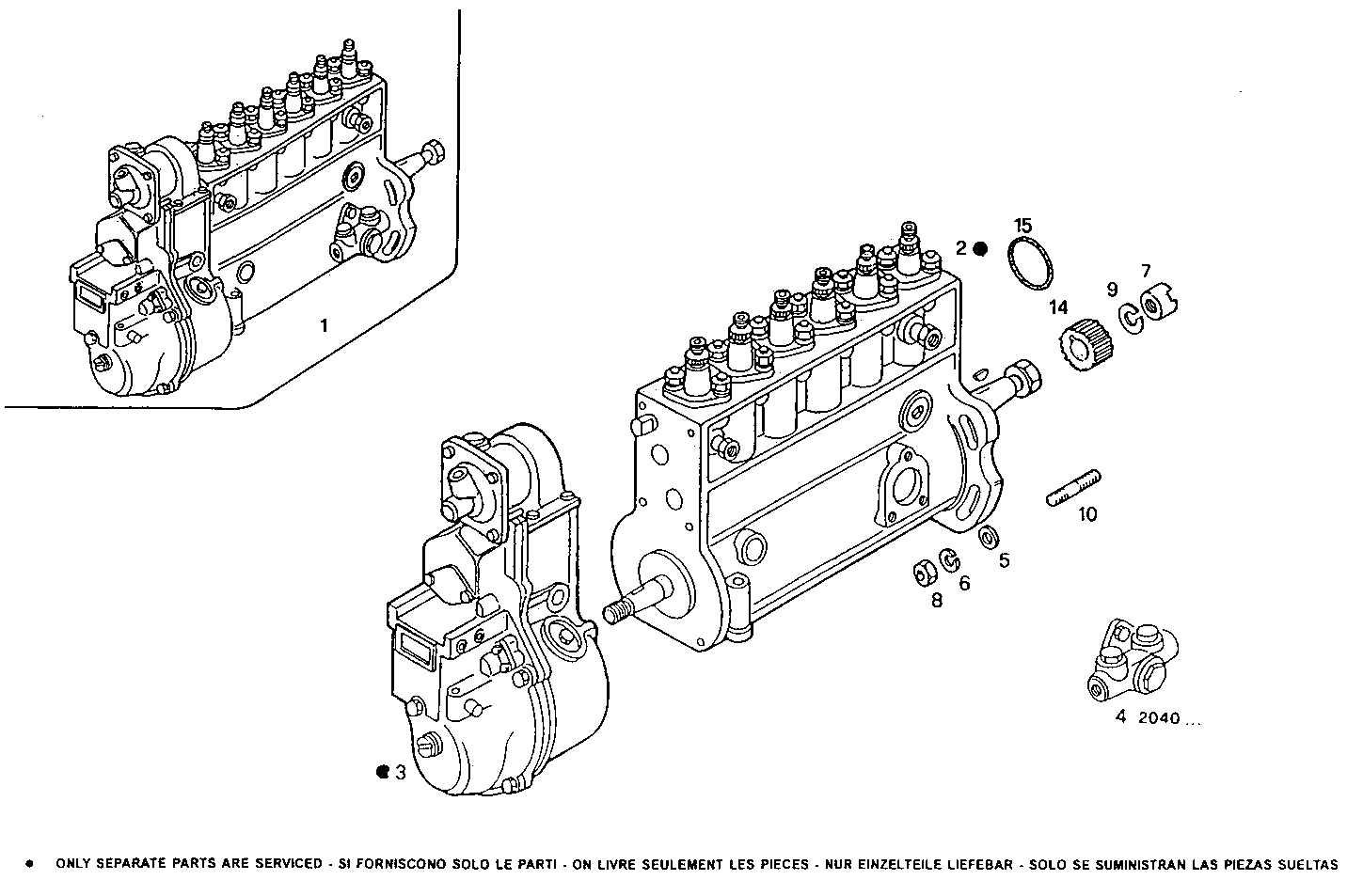

1400.307 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8018484 INLINE INJECT.PUMP OPT.
4 8092637 FUEL PUMP OPT.
5 12626321 WASHER Ø10X25 MM
6 17090274 WASHER Ø10X20 MM
7 8010651 NUT
8 17038221 HEXAGON NUT M10
9 8010652 WASHER
10 13450121 STUD M10X15X50
14 8010650 BUSH
15 61317701 O-RING Ø3,2X10 MM
