8361SRM40.41

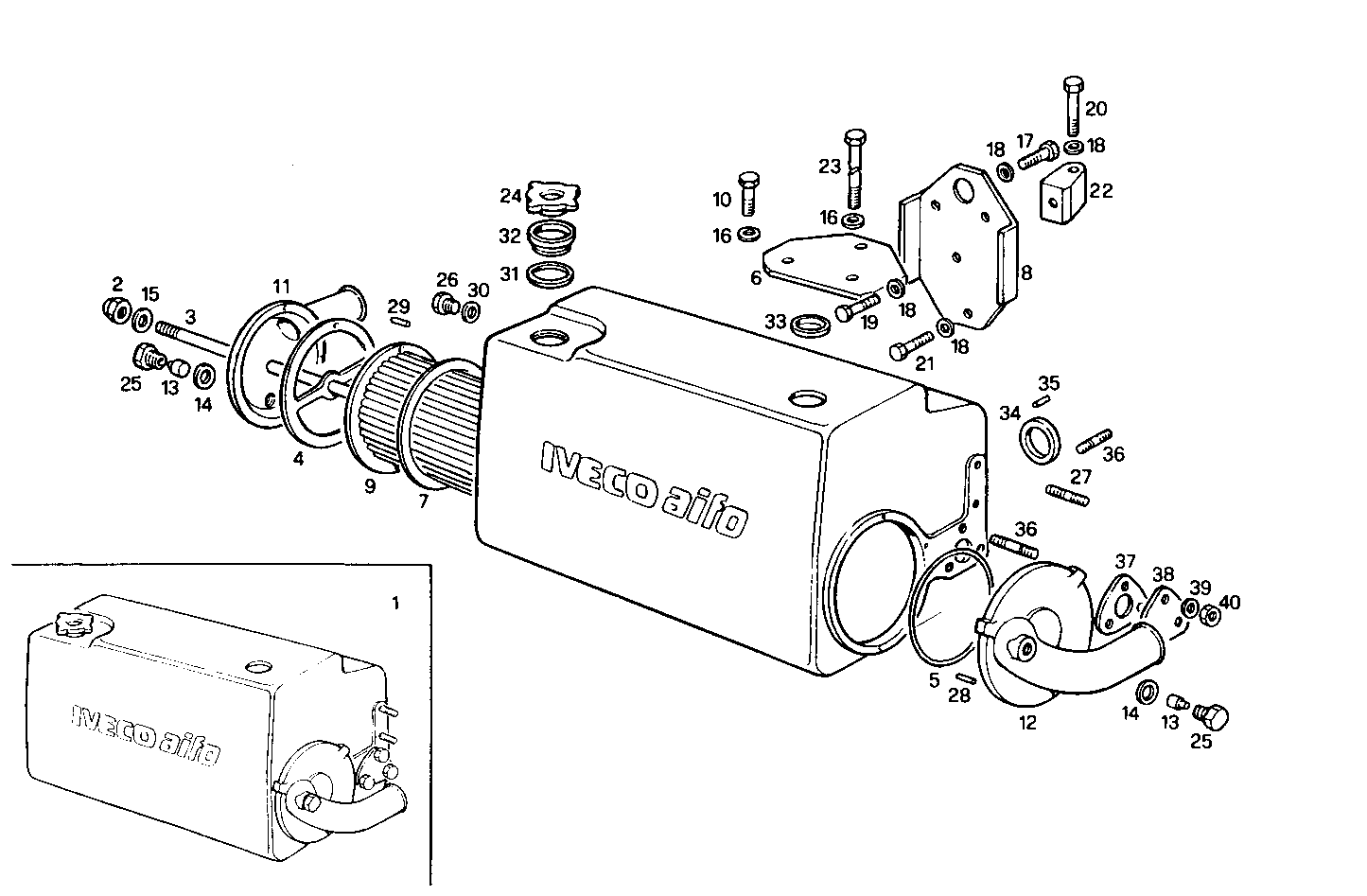

3370.025 FRESH WATER - SEA WATER HEAT EXCHANGER

Iveco/FPT FRESH WATER - SEA WATER HEAT EXCHANGER

Item Part number Description
1 8017607 WATER/SEA WATER HEAT EXCH ASSY
2 14056240 NUT M12X1,25
3 4918908 TIE ROD
4 4918922 GASKET
5 4918846 O-RING
6 8110556 SUPPORT
7 4930157 GASKET
8 8017256 RETAINER
9 8014890 TUBE STACK
10 15971821 SCREW M10X1,25X100
11 8017248 HEAT EXCHANG.COVER
12 8017445 HEAT EXCHANG.COVER
13 8105277 SACRIFICAL ANODE Ø14 MM
14 4858610 WASHER Ø18X24 MM SP=1,5 MM
15 4858607 WASHER Ø12X17 MM SP=1,5 MM
16 17090474 SPRING WASHER Ø10X27 MM SP=2,5
17 15004021 HEXAGON BOLT M10X1,25X25 MM
18 17090174 SPRING WASHER Ø10X20 MM
19 15970521 HEXAGON BOLT M10X20 MM
20 11343721 HEXAGON BOLT M10X65 MM
21 11306921 SCREW M10X1,25X30
22 4723225 CHOCK
23 15969821 SCREW M10X1,25X220
24 4930462 PLUG
25 4917793 PLUG M18
26 16992440 THREADED PLUG M16X1,5
27 16746524 STUD M8X16X16
28 17253670 PIN Ø4X14 MM
29 17253870 PIN Ø4X18 MM
30 4858609 WASHER Ø16X22 MM SP=1,5 MM
31 10265360 SEAL GASKET Ø40X48 MM SP=1,5 MM
32 8102030 FILLER NECK
33 16991170 LOCK PLUG Ø36 MM
34 4918844 WASHER
35 17252170 PIN Ø3X8 MM
36 16746624 STUD M8X20 MM (8.8)
37 8009905 GASKET
38 4918993 COVER
39 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
40 17037931 HEXAGON NUT M8X1,25
