8460M15.12

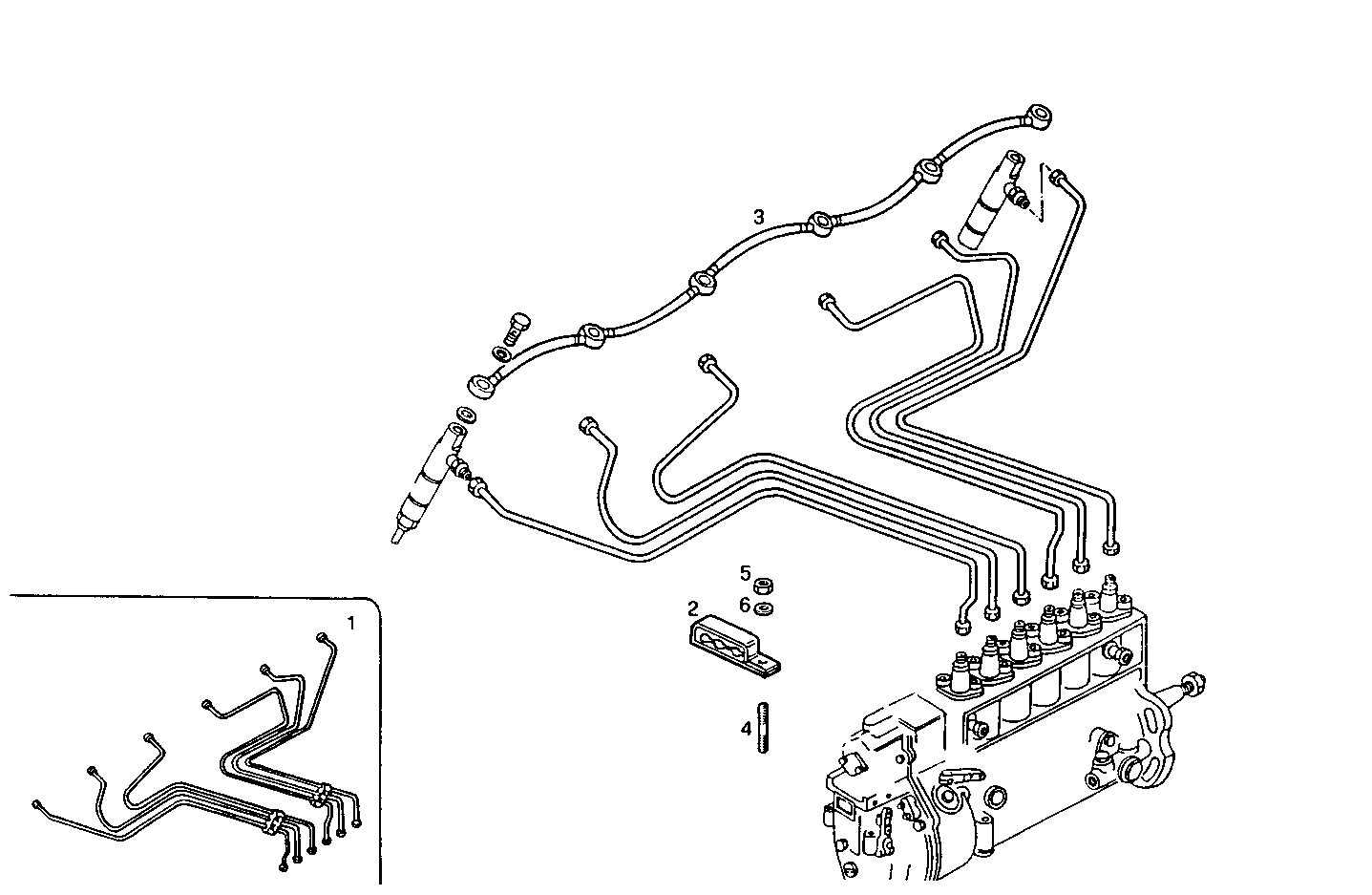

2020.038 INJECTION PIPES

Iveco/FPT INJECTION PIPES

Item Part number Description
1 98401536 INJECTION LINE SET ASSY
2 8102995 RETAINER
3 61317897 FUEL LINE
4 16043124 SCREW M8X14 MM
5 17037931 HEXAGON NUT M8X1,25
6 17089574 WASHER Ø8X16 MM
