8460M15.12

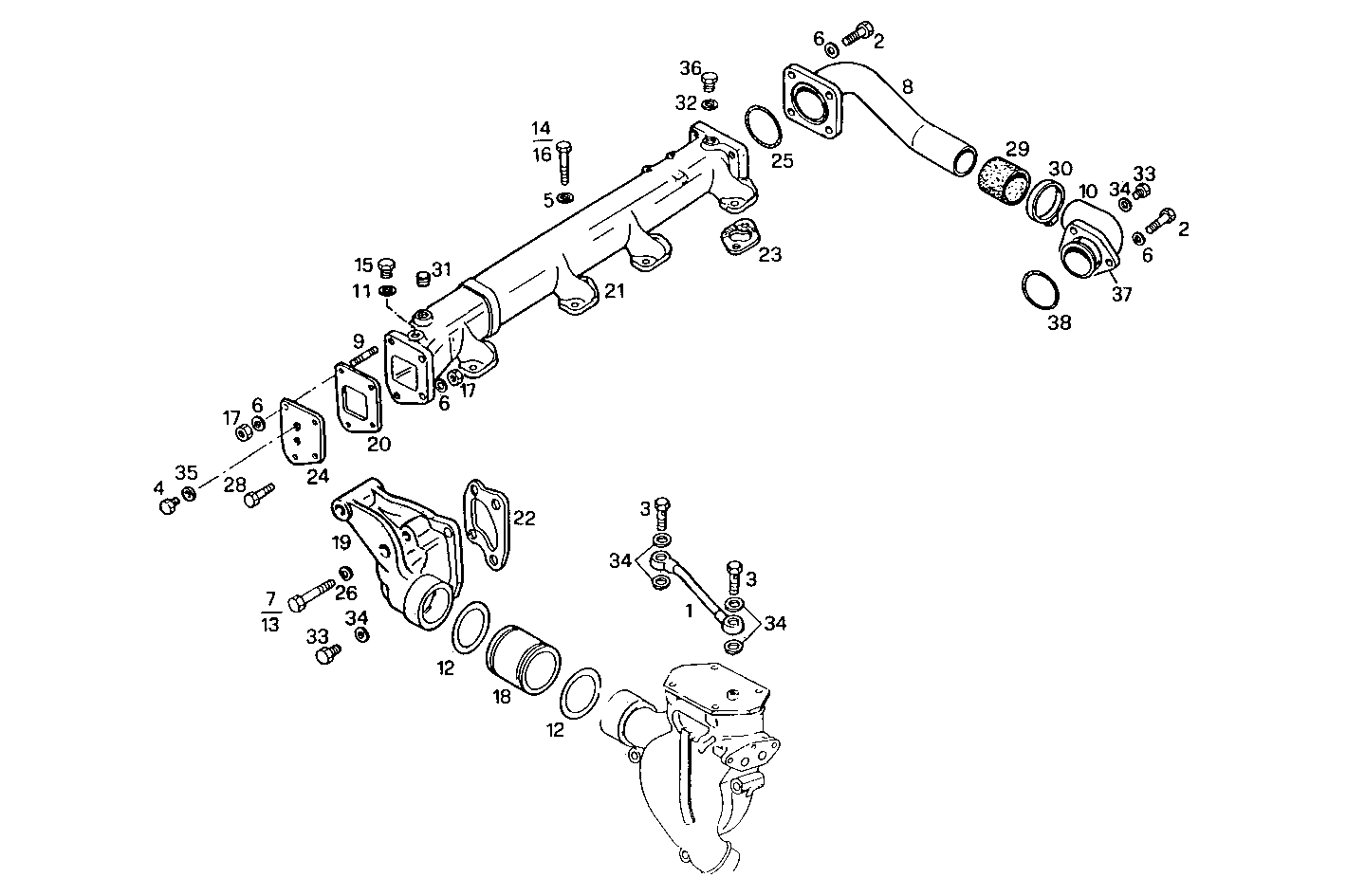

3210.103/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8014915 WATER PIPE
2 16605624 HEXAGON BOLT M8X25 MM (8.8)
3 4864080 SCREW CONNECTOR M10X1,25
4 16992311 LOCK PLUG M14X1,5
5 17089574 WASHER Ø8X16 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 11306924 HEXAGON BOLT M10X1,25X30 MM
8 8007781 WATER PIPE
9 16746624 STUD M8X20 MM (8.8)
10 8110655 WATER PIPE
11 4858607 WASHER Ø12X17 MM SP=1,5 MM
12 17296081 O-RING Ø56,52X5,33 MM
13 15971324 SCREW M10X75 MM
14 16606324 HEXAGON BOLT M8X60 MM
15 16992211 THREADED PLUG M12X1,5
16 16605734 HEXAGON BOLT M8X30 MM
17 17037931 HEXAGON NUT M8X1,25
18 61317101 CONNECTOR SLEEVE
19 8014862 WATER PIPE WATER
20 61318822 FLAT ENGINE GASKET
21 61315629 WATER MANIFOLD
22 61318820 FLAT ENGINE GASKET
23 61319050 FLAT ENGINE GASKET
24 8017510 COVER
25 17290281 O-RING Ø63,09 MM SP=3,53 MM
28 16605824 HEXAGON BOLT M8X35 MM
29 8107383 RUBBER SLEEVE Ø60 MM
30 17765093 CLIP Ø60/80 MM
31 16994950 PLUG M24X1,5
32 4858609 WASHER Ø16X22 MM SP=1,5 MM
33 11903140 PLUG M10X1,25
34 4858606 GASKET Ø10X14X1 MM
35 4858608 SEAL GASKET dia.14x19,5x1,5
36 16992411 THREADED PLUG M16X1,5
37 8110656 FLANGE
38 17290081 O-RING Ø56,74 MM SP=3,53 MM
