8460M15.12

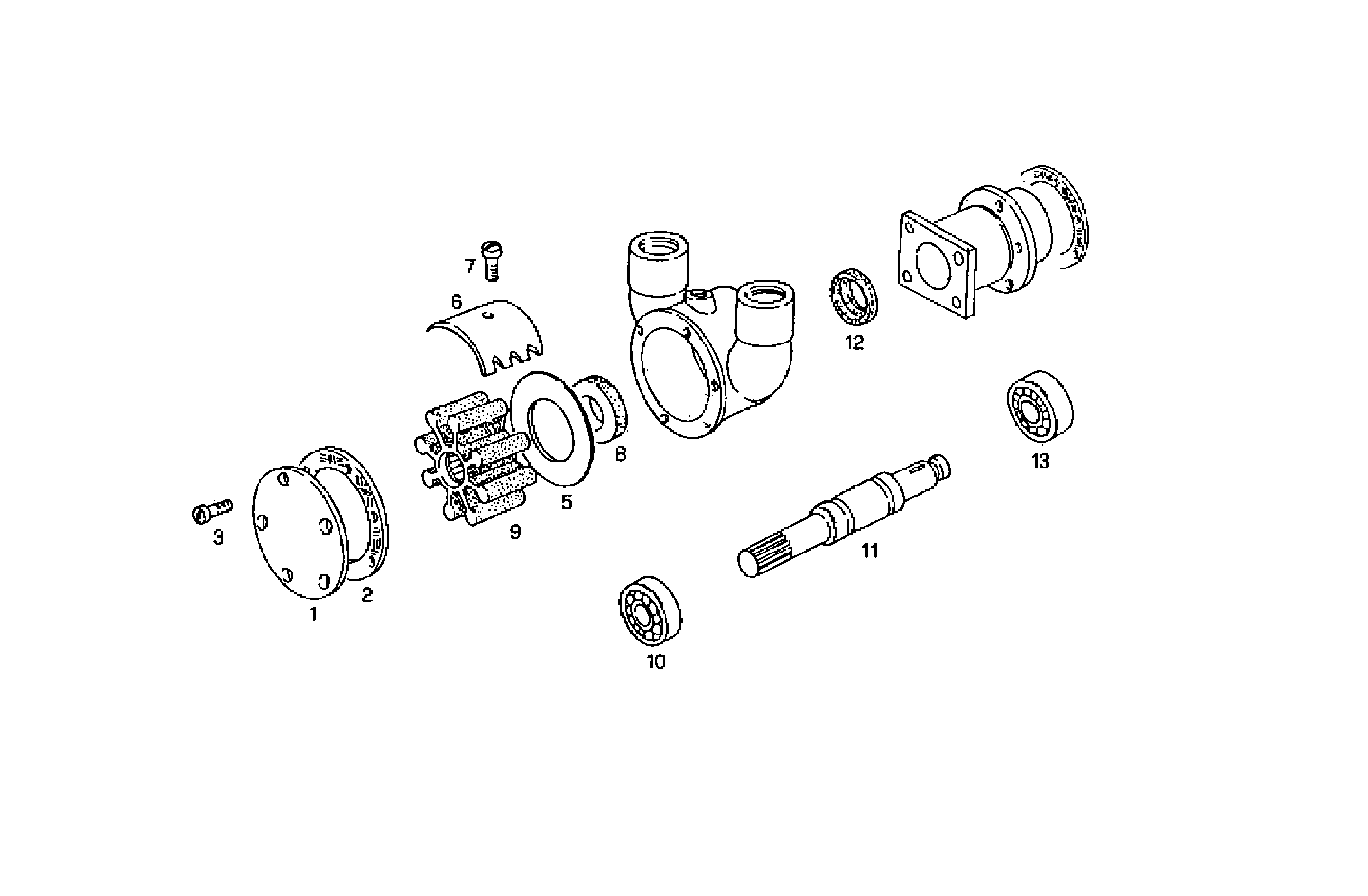

3380.046 SEA WATER PUMP (COMPONENTS) - JABSCO
| Item | Part number | Description |
|---|---|---|
| 1 | 8105732 | COVER |
| 2 | 8093355 | GASKET |
| 3 | 8105734 | SCREW |
| 5 | 8105724 | WASHER |
| 6 | 8105726 | RETAINING CAM |
| 7 | 8105727 | SCREW |
| 8 | 8093340 | WASHER |
| 9 | 8104658 | SEA WATER PUMP IMPELL. |
| 10 | 8105719 | DRIVE BEARING |
| 11 | 8093361 | SHAFT |
| 12 | 8105717 | WASHER |
| 13 | 8106282 | DRIVE BEARING |
