8460M15.12

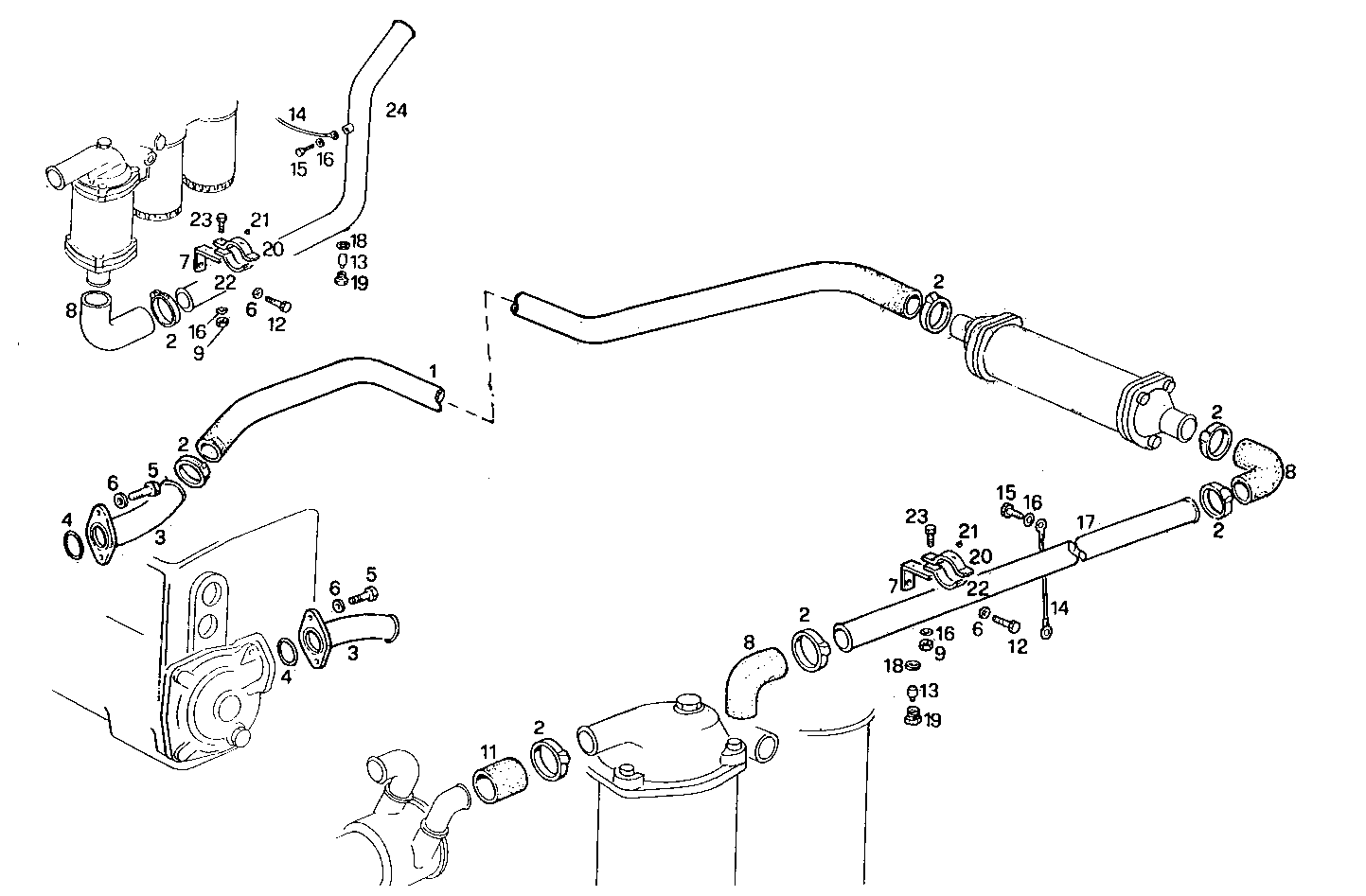

3390.039 SEA WATER LINES

Iveco/FPT SEA WATER LINES

Item Part number Description
1 8012335 WATER HOSE
2 17764993 CLIP Ø50/70 MM
3 8009636 WATER PIPE
4 17289881 O-RING Ø50,3 MM SP=3,5 MM
5 11112221 HEXAGON BOLT M12X25
6 17091071 SPRING WASHER Ø12X24 SP=2,8 MM
7 8007981 RETAINER
8 8009940 RUBBER SLEEVE
9 17037931 HEXAGON NUT M8X1,25
11 4765112 RUBBER SLEEVE
12 15540221 HEXAGON BOLT M12X1,25X20 MM
13 8105277 SACRIFICAL ANODE Ø14 MM
14 8113786 ENGINE HARNESS GND
15 16043021 HEXAGON BOLT M8X12 MM
16 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
17 8020051 WATER PIPE [from 04-95]
18 4858610 WASHER Ø18X24 MM SP=1,5 MM
19 4917793 PLUG M18
20 8113296 CLAMP Ø50 MM
21 1366290 RUBBER LUG
22 8113295 CLAMP Ø50 MM
23 16605624 HEXAGON BOLT M8X25 MM (8.8)
24 8017446 WATER PIPE [up to 04-95]
