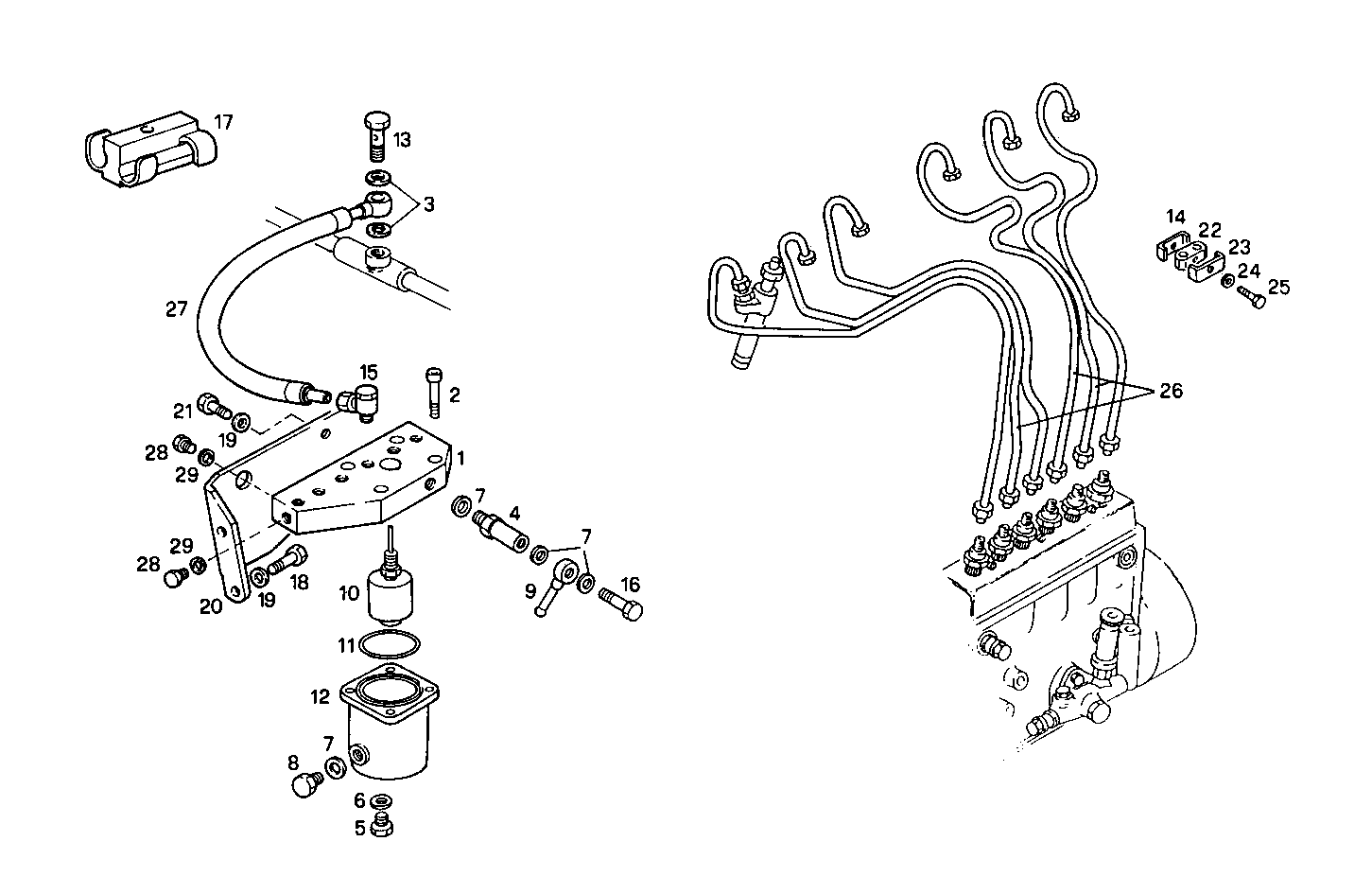

| Item |
Part number |
Description |
|
1 |
8030234 |
DISTRIBUTOR |
|
2 |
16689424 |
SOCKET-HEAD SCREW M6X30 MM |
|
3 |
98474303 |
WASHER Ø8X14 MM SP=2,3 MM |
|
4 |
8102465 |
VALVE |
|
5 |
16992211 |
THREADED PLUG M12X1,5 |
|
6 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
7 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
8 |
16992311 |
LOCK PLUG M14X1,5 |
|
9 |
98413896 |
PIPE SOCKET Ø8 MM |
|
10 |
8102285 |
INDICATOR |
|
11 |
17290081 |
O-RING Ø56,74 MM SP=3,53 MM |
|
12 |
8026365 |
TANK |
|
13 |
4864078 |
BANJO BOLT M8X1,25 |
|
14 |
4659219 |
PLATE |
|
15 |
8026816 |
SCREW CONNECTOR ASSY M10X1 |
|
16 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
17 |
8030239 |
CLIP Ø15 MM |
|
18 |
16505524 |
SCREW M8X20 |
|
19 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
20 |
8030486 |
RETAINER |
|
21 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
22 |
4659217 |
DOWEL |
|
23 |
4659218 |
CLIP |
|
24 |
17496434 |
WASHER Ø5X18X0,8 MM |
|
25 |
16602224 |
HEXAGON BOLT M5X20 MM |
|
26 |
8027833 |
INJECTION LINE SET |
|
27 |
8030220 |
HOSE L=400 MM |
|
28 |
16992111 |
THREADED PLUG M10X1 |
|
29 |
4858606 |
GASKET Ø10X14X1 MM |
