8460SM19.13A001

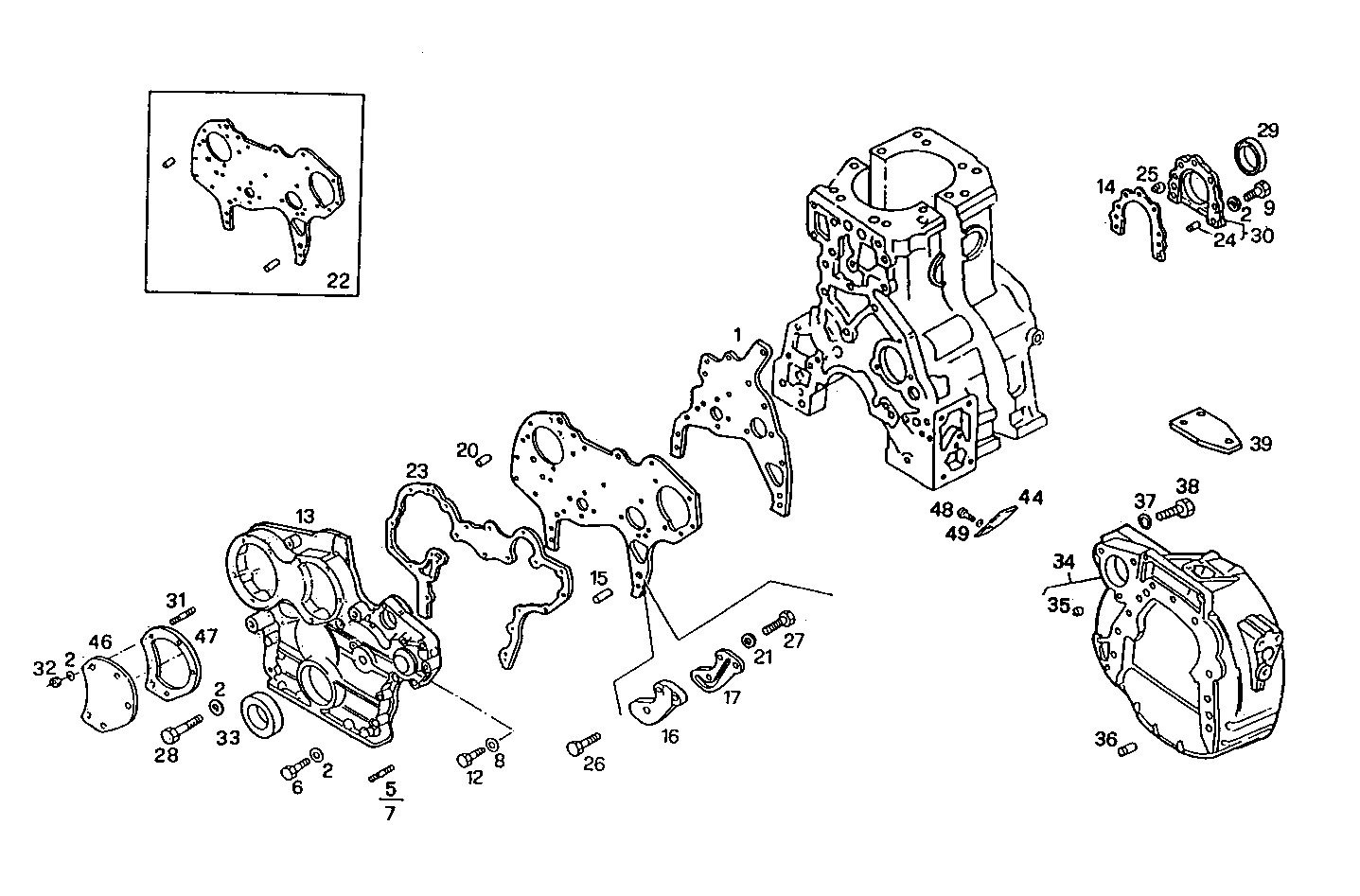

0430.209 INSERTED BOX ASSEM.
| Item | Part number | Description |
|---|---|---|
| 1 | 61319059 | FLAT ENGINE GASKET |
| 2 | 17089574 | WASHER Ø8X16 MM |
| 5 | 13547021 | STUD |
| 6 | 16605524 | HEXAGON BOLT M8X20 MM |
| 7 | 13546521 | STUD M10X1,25X20X30 MM |
| 8 | 17090274 | WASHER Ø10X20 MM |
| 9 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 12 | 16044724 | SCREW M8X75 |
| 13 | 61319090 | FRONT C.CASE COVER |
| 14 | 61319046 | FLAT ENGINE GASKET |
| 15 | 61316841 | THREADED INSERT |
| 16 | 61315071 | FLANGE |
| 17 | 61319044 | FLAT ENGINE GASKET |
| 19 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 20 | 61316840 | THREADED INSERT |
| 21 | 61316021 | RING |
| 22 | 61318546 | PLATE |
| 23 | 61319058 | FLAT ENGINE GASKET |
| 24 | 61577156 | DOWEL PIN |
| 25 | 61581074 | DOWEL PIN |
| 26 | 61584440 | HEXAGON BOLT |
| 27 | 61584442 | CYLIND-HEAD SCREW |
| 28 | 16606724 | HEXAGON BOLT M8X90 MM |
| 29 | 40101471 | OIL RETAINER REAR |
| 30 | 61672682 | COVER ASSY |
| 31 | 16746624 | STUD M8X20 MM (8.8) |
| 32 | 17042531 | HEXAGON NUT M8 |
| 33 | 98467211 | WASHER FRONT |
| 34 | 61317966 | REAR C.CASE COVER |
| 35 | 61316846 | CENTERING PIN |
| 36 | 61316847 | CENTERING PIN |
| 37 | 61229230 | SPRING WASHER Ø14 MM |
| 38 | 15860134 | SCREW M14X1,5X50 |
| 39 | 61586481 | PLATE |
| 44 | 61320467 | COVER |
| 46 | 61317134 | SIDE COVER |
| 47 | 61319061 | FLAT ENGINE GASKET |
| 48 | 15544021 | SCREW |
| 49 | 12646901 | WASHER Ø12X28 MM |
