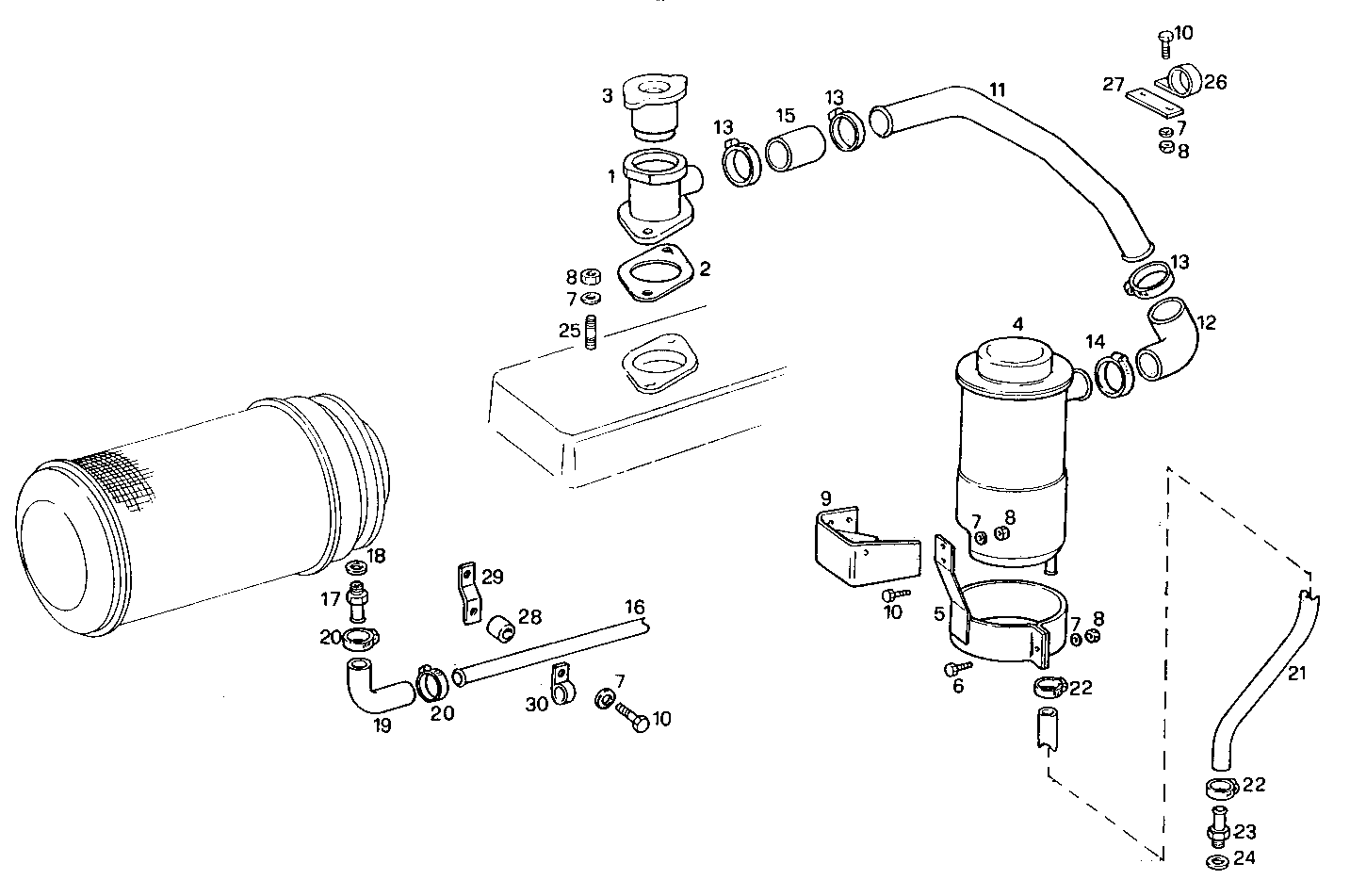

| Item |
Part number |
Description |
|
1 |
8017609 |
BREATHER |
|
2 |
8009901 |
GASKET |
|
3 |
8823136 |
LOCK PLUG |
|
4 |
4858569 |
BREATHER |
|
5 |
4860370 |
SUPPORT [up to 03-97] |
|
6 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
7 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
8 |
17037931 |
HEXAGON NUT M8X1,25 |
|
9 |
8018828 |
SUPPORT |
|
10 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
11 |
8017326 |
BREATHER PIPE |
|
12 |
8015523 |
RUBBER SLEEVE Ø30 - Ø25 MM |
|
13 |
17764693 |
CLIP Ø25/40 MM |
|
14 |
17764793 |
CLIP Ø32/50 MM |
|
15 |
8105610 |
RUBBER SLEEVE |
|
16 |
8017327 |
BREATHER PIPE |
|
17 |
4864084 |
BANJO BOLT M16X1,5 |
|
18 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
19 |
8013466 |
WATER HOSE [up to 03-97] |
|
20 |
17764593 |
CLIP Ø20/32 MM |
|
21 |
8018468 |
OIL HOSE |
|
22 |
18088392 |
CLIP Ø16/25 MM |
|
23 |
8017328 |
PIPE SOCKET |
|
24 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
|
25 |
16746724 |
STUD M8X25 MM |
|
26 |
4760226 |
FASTENING BRACKET |
|
27 |
4929652 |
RETAINER |
|
28 |
8108351 |
SPACING BAR |
|
29 |
8107203 |
RETAINER |
|
30 |
17316790 |
CLIP |
