8460SM19.13A001

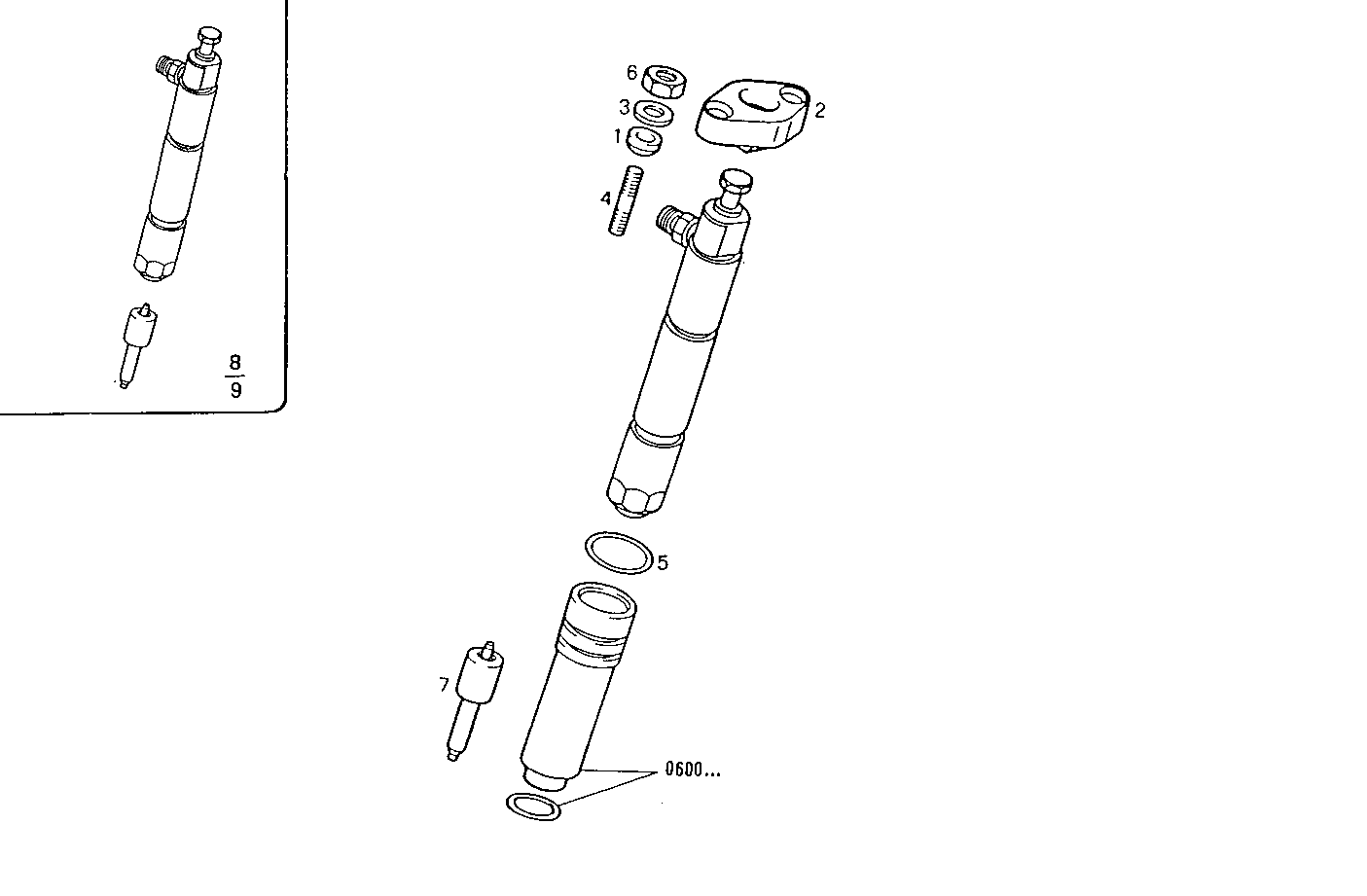

1420.066 INJECTORS
| Item | Part number | Description |
|---|---|---|
| 1 | 4700162 | WASHER Ø11,5 MM |
| 2 | 98406199 | FASTENING BRACKET |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 13450634 | STUD M10 |
| 5 | 17278581 | O-RING Ø18,77 MM SP=1,78 MM |
| 6 | 17038221 | HEXAGON NUT M10 |
| 7 | 98480703 | FUEL NOZZLE BOSCH |
| 8 | 98480701 | NOZZLE ASSY |
| 9 | 98499901 | NOZZLE ASSY BOSCH [FROM # 406952] |
