8460SM19.13A001

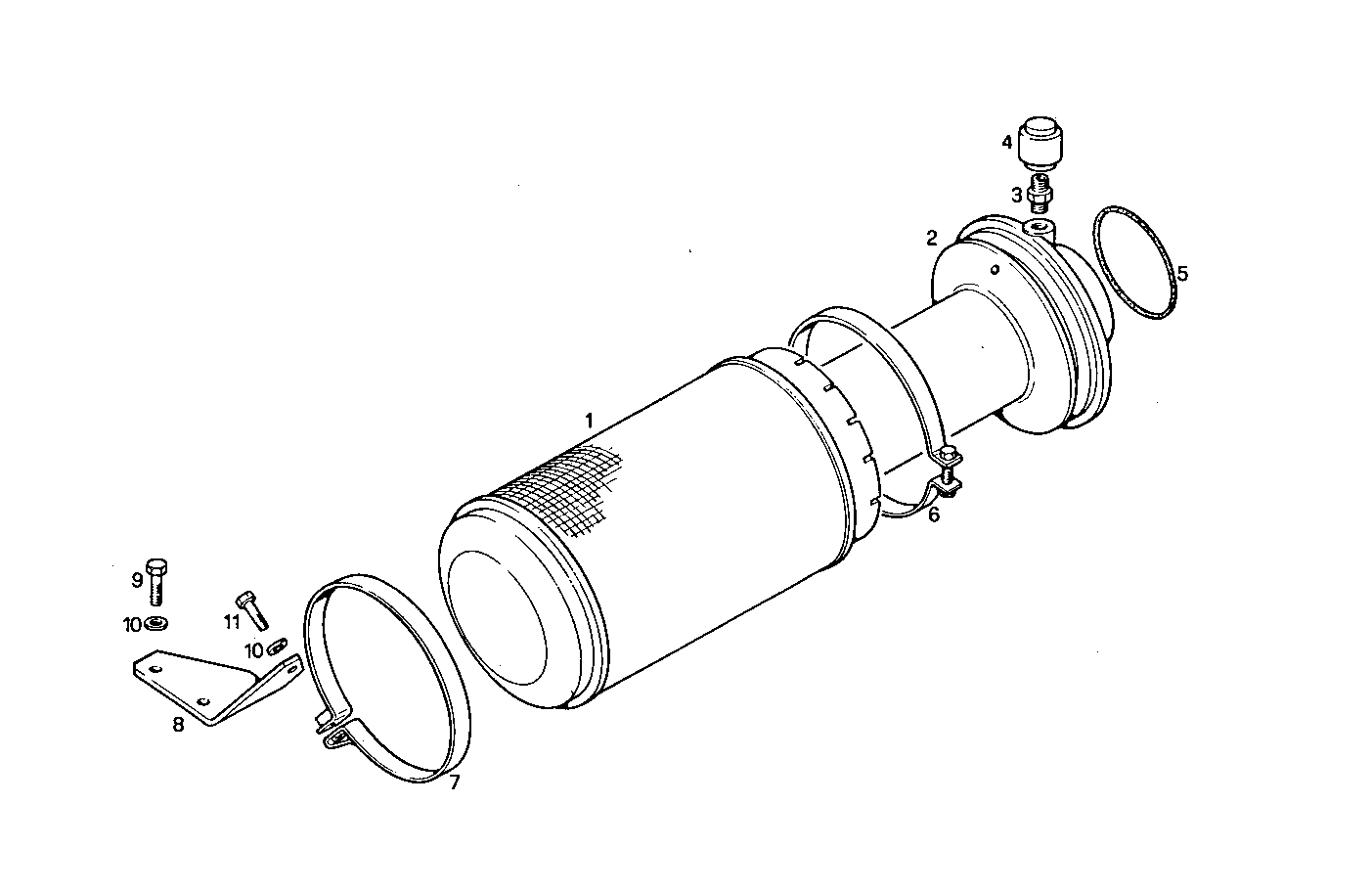

2210.022 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8017370 | AIR CLEANER VIRGIS |
| 2 | 8017269 | COVER |
| 3 | 8009522 | PIPE SOCKET |
| 4 | 8027423 | CHOCKED FILTER INDIC. |
| 5 | 17285081 | O-RING Ø67,94 MM SP=2,62 MM |
| 6 | 8017374 | CLIP |
| 7 | 8017364 | CLIP |
| 8 | 8017373 | SUPPORT |
| 9 | 16605524 | HEXAGON BOLT M8X20 MM |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 16605824 | HEXAGON BOLT M8X35 MM |
