8460SM19.13A001

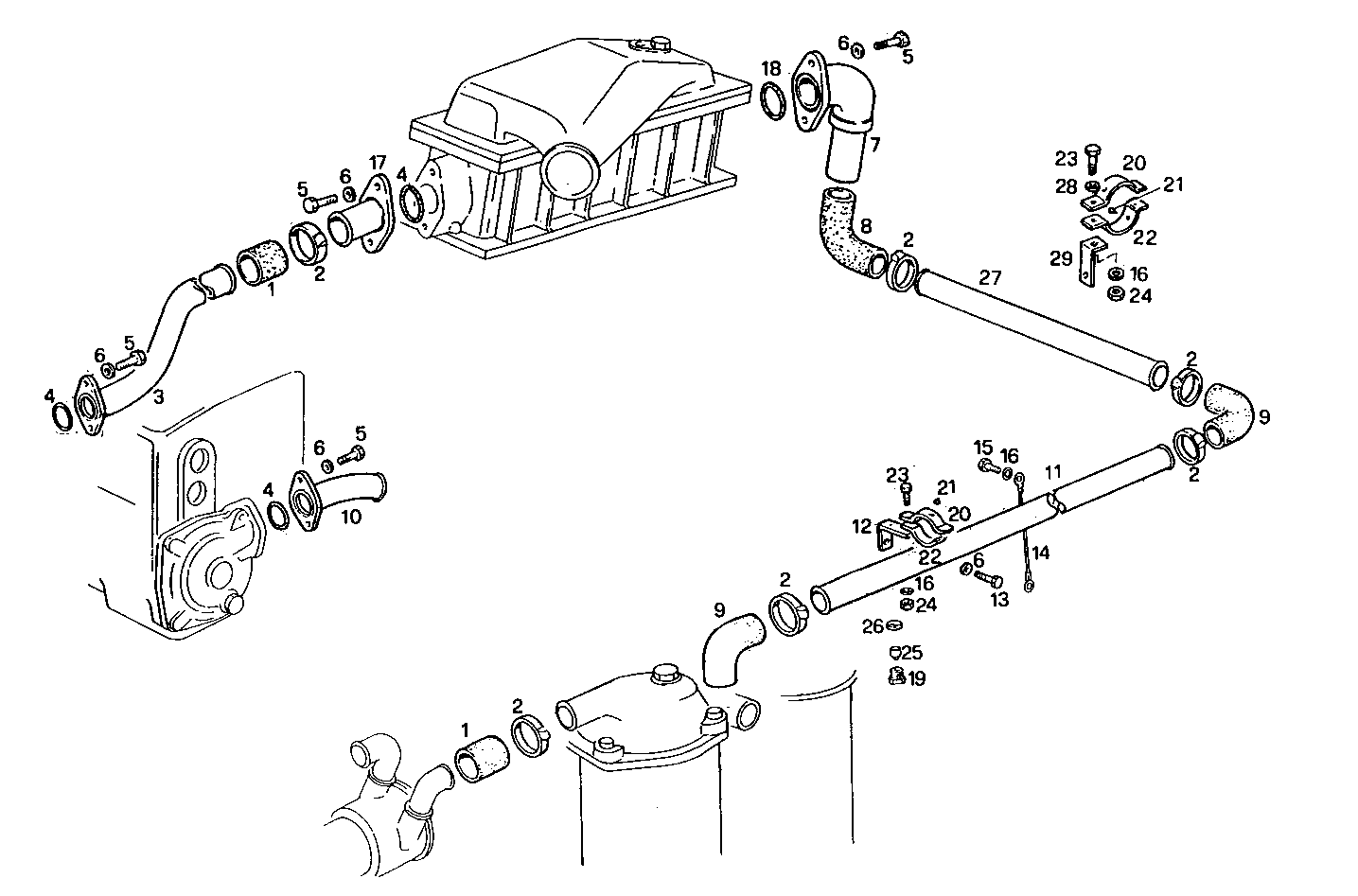

3390.062 SEA WATER LINES

Iveco/FPT SEA WATER LINES

Item Part number Description
1 4765112 RUBBER SLEEVE
2 17764993 CLIP Ø50/70 MM
3 8007779 SEA WATER PIPE
4 17289881 O-RING Ø50,3 MM SP=3,5 MM
5 11112221 HEXAGON BOLT M12X25
6 17091074 WASHER Ø12X24X2,8 MM
7 8007821 SEA WATER PIPE
8 8110487 WATER HOSE
9 8009940 RUBBER SLEEVE
10 8009636 WATER PIPE
11 8017446 WATER PIPE [up to 04-95]
12 8007981 RETAINER
13 15540221 HEXAGON BOLT M12X1,25X20 MM
14 8113786 ENGINE HARNESS GND
15 16043021 HEXAGON BOLT M8X12 MM
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 8007778 WATER PIPE
18 17289981 O-RING Ø53,57X3,53 MM
19 4917793 PLUG M18
20 8113296 CLAMP Ø50 MM
21 1366290 RUBBER LUG
22 8113295 CLAMP Ø50 MM
23 16605624 HEXAGON BOLT M8X25 MM (8.8)
24 17037931 HEXAGON NUT M8X1,25
25 8105277 SACRIFICAL ANODE Ø14 MM
26 4858610 WASHER Ø18X24 MM SP=1,5 MM
27 8029137 SEA WATER PIPE
28 17094911 WASHER Ø8X16X1,6 MM
29 8113297 RETAINER
