8460SM19.13A001

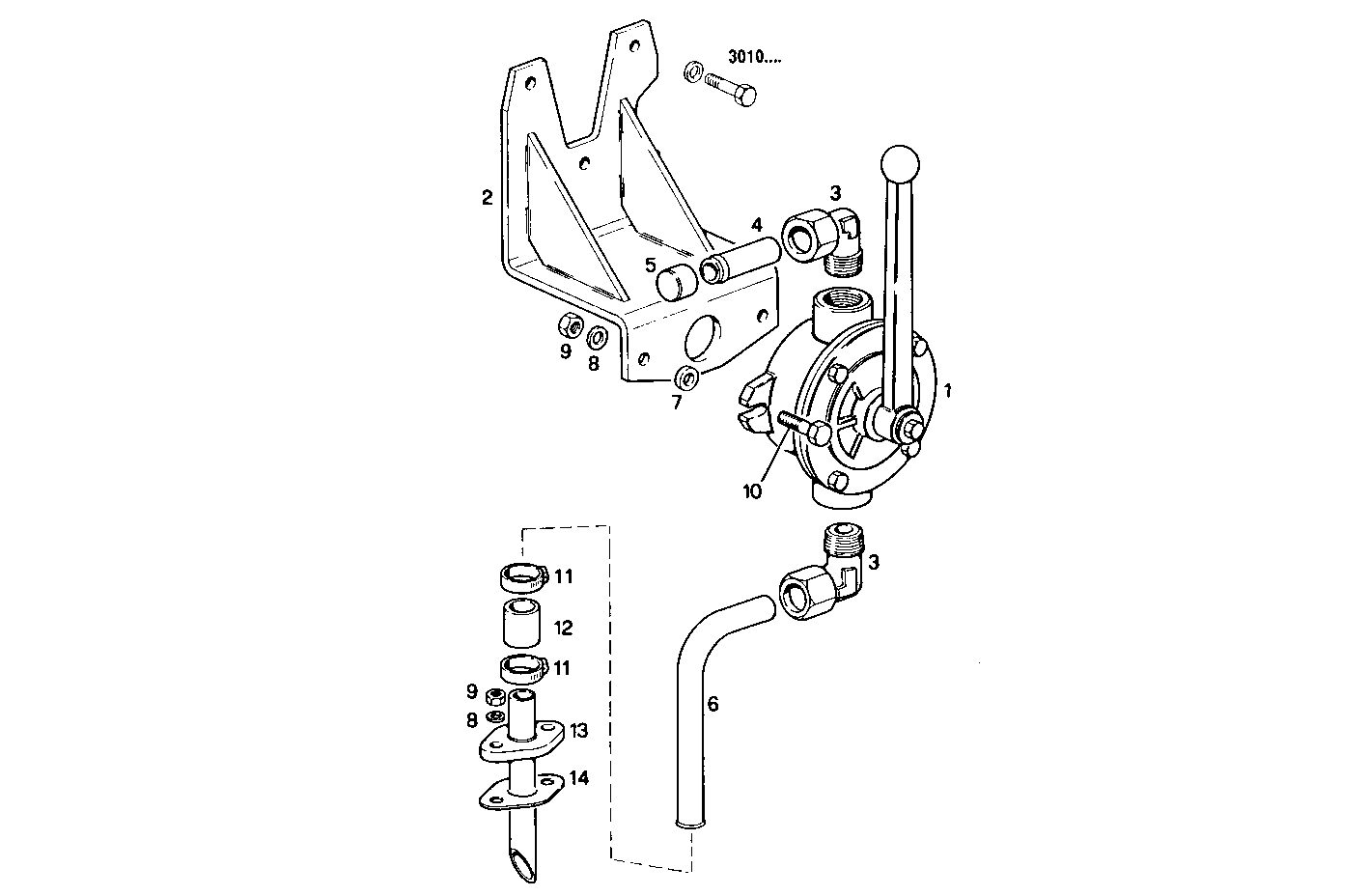

5510.022 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8012424 | MAR. ENG. SUCTION PUMP |
| 2 | 8017343 | SUPPORT |
| 3 | 8111456 | PIPE SOCKET |
| 4 | 8104754 | OIL LINE |
| 5 | 93013662 | PLUG |
| 6 | 8012670 | OIL LINE |
| 7 | 13605711 | SPACER Ø8,5x18 MM |
| 8 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 16605734 | HEXAGON BOLT M8X30 MM |
| 11 | 17764593 | CLIP Ø20/32 MM |
| 12 | 8109346 | RUBBER SLEEVE |
| 13 | 8017371 | OIL LINE |
| 14 | 12689980 | GASKET |
