8460SM19.13A001

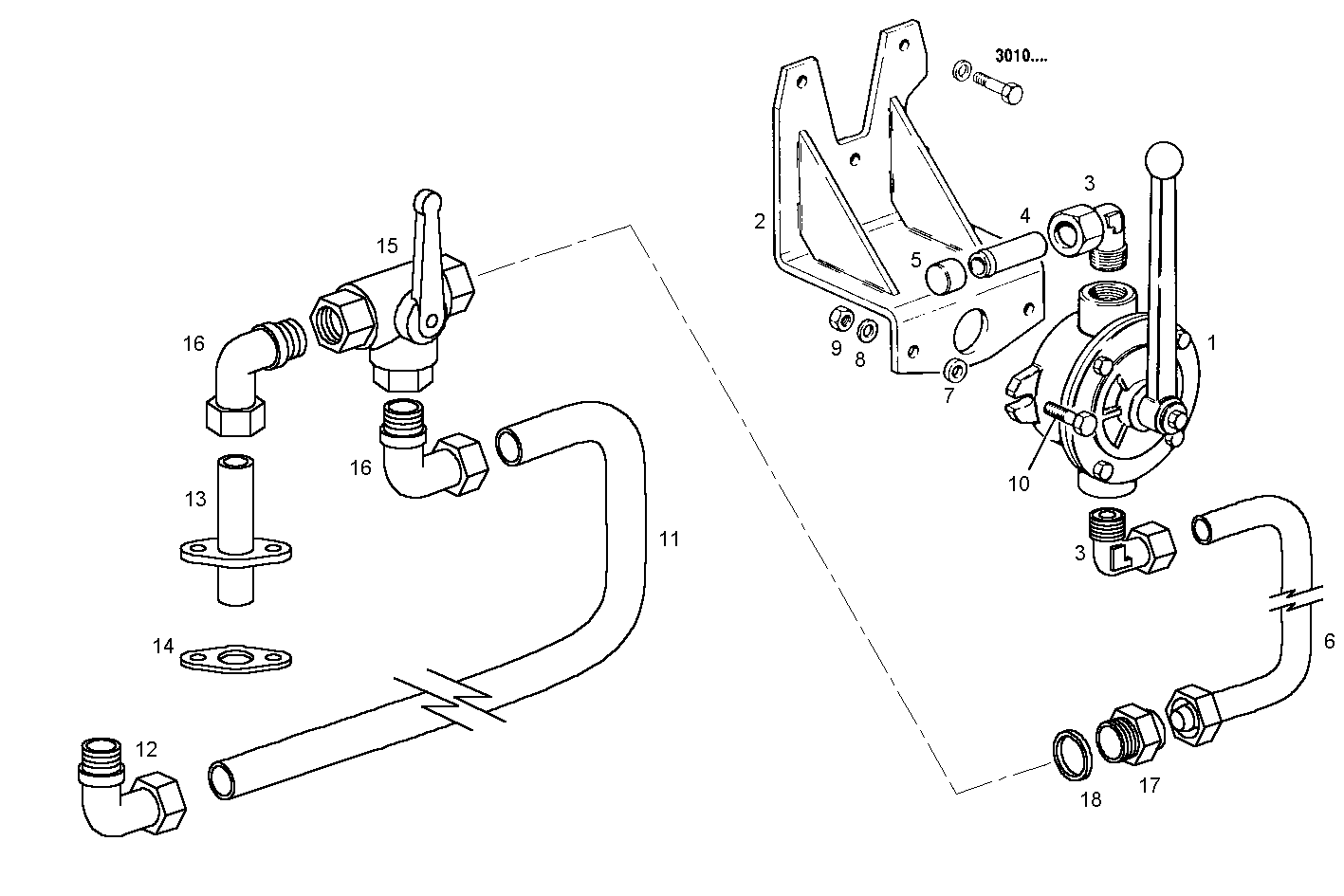

5510.048 OIL OUTLET PUMP [D 2-1997] [from2-1997]
| Item | Part number | Description |
|---|---|---|
| 1 | 8012424 | MAR. ENG. SUCTION PUMP |
| 2 | 8017343 | SUPPORT |
| 3 | 8111456 | PIPE SOCKET |
| 4 | 8104754 | OIL LINE |
| 5 | 93013662 | PLUG |
| 6 | 8023746 | OIL LINE |
| 7 | 13605711 | SPACER Ø8,5x18 MM |
| 8 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 16605734 | HEXAGON BOLT M8X30 MM |
| 11 | 8023747 | OIL LINE |
| 12 | 8111454 | PIPE SOCKET M22X1,5 |
| 13 | 8023748 | OIL LINE |
| 14 | 12689980 | GASKET |
| 15 | 8012564 | VALVE |
| 17 | 8011519 | PIPE SOCKET |
| 18 | 11271460 | GASKET Ø21X26X1,5 MM |
