8460SM22.12

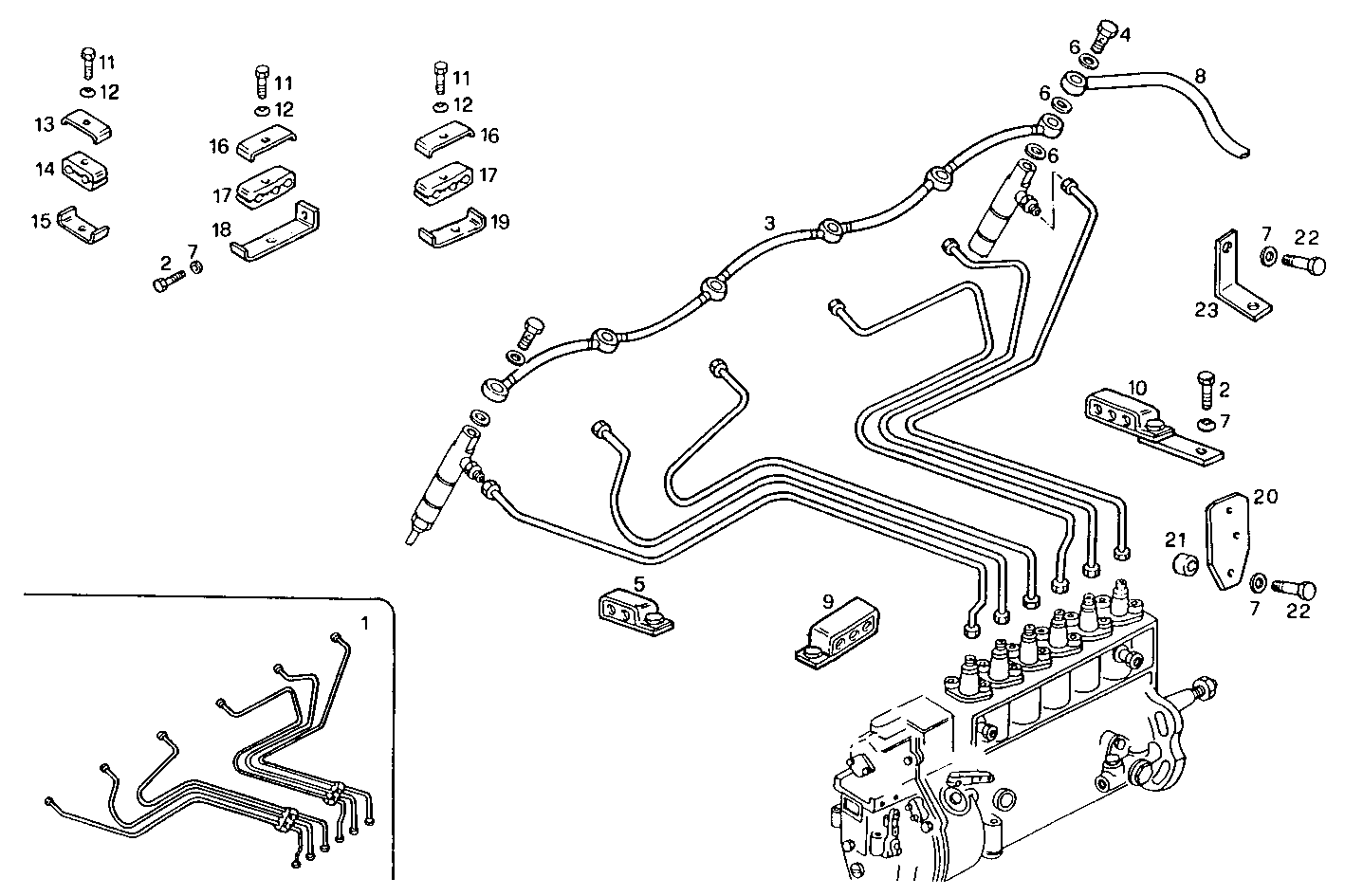

2020.046 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 4835939 | INJECTION LINE SET ASSY |
| 2 | 16043324 | HEXAGON BOLT M8X18 MM |
| 3 | 61317897 | FUEL LINE |
| 4 | 61316009 | SCREW CONNECTOR |
| 5 | 4806611 | FASTENING BRACKET |
| 6 | 4858605 | WASHER Ø8X12 MM |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 8010728 | FUEL LINE |
| 9 | 4806612 | FASTENING BRACKET |
| 10 | 4850694 | RETAINER |
| 11 | 10978021 | HEXAGON BOLT M5X20 MM |
| 12 | 17494631 | SPRING WASHER Ø5 MM |
| 13 | 4641873 | RETAINER BOTTOM |
| 14 | 61585735 | RUBBER PAD |
| 15 | 4641874 | RETAINER TOP |
| 16 | 4641875 | CLIP |
| 17 | 4543282 | CHOCK |
| 18 | 61316178 | FASTENING BRACKET |
| 19 | 4641876 | CLIP |
| 20 | 61315626 | FASTENING BRACKET |
| 21 | 13605711 | SPACER Ø8,5x18 MM |
| 22 | 16043521 | SCREW M8X22 |
| 23 | 61318425 | RETAINER |
