8460SRC20.00

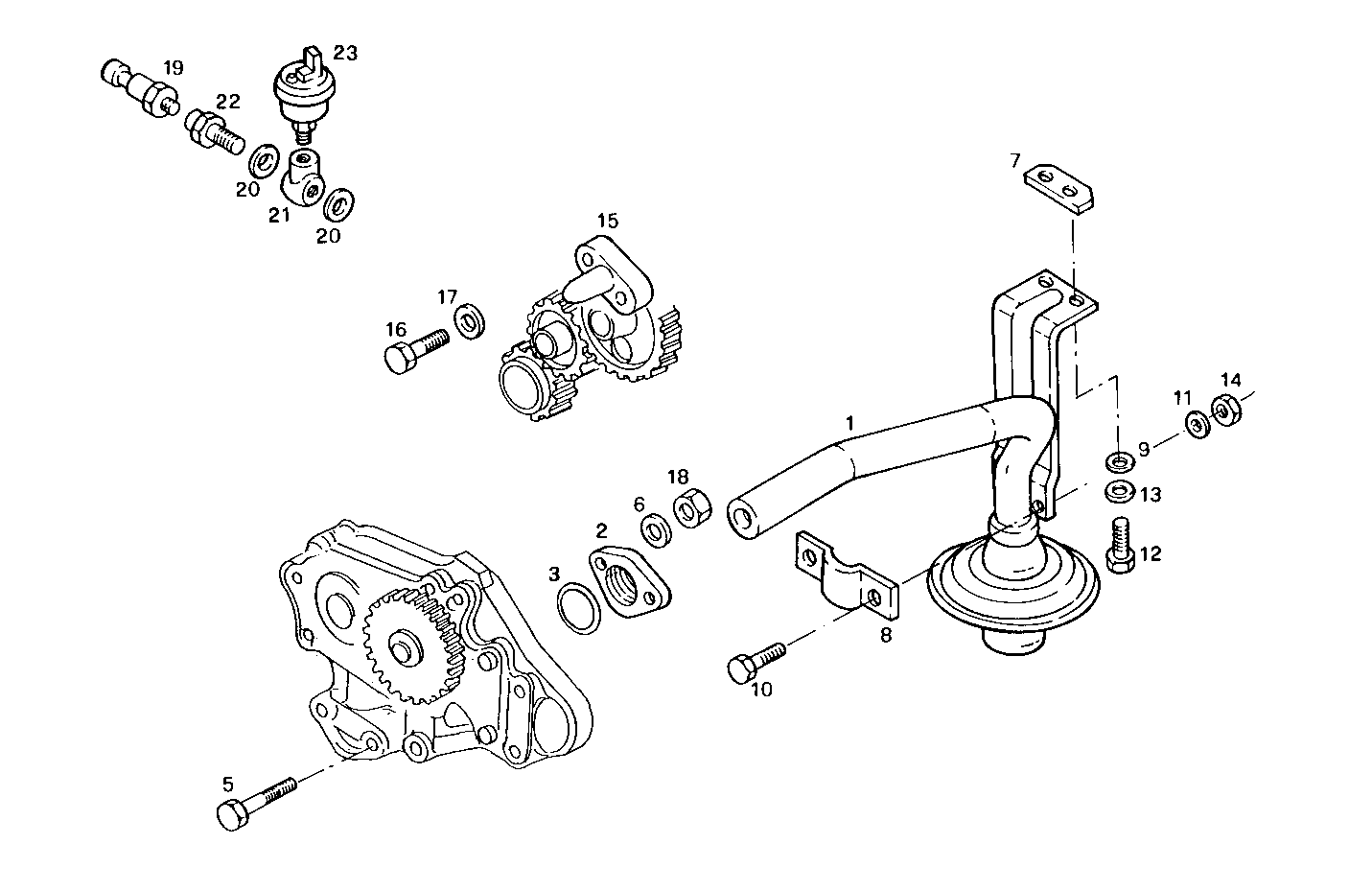

3010.140 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 61321303 | SUCTION STRAINER |
| 2 | 61317784 | FLANGE |
| 3 | 17282381 | O-RING �25,07 MM SP=2,62 MM |
| 5 | 16606424 | HEXAGON BOLT M8X65 MM |
| 6 | 11194074 | WASHER �8,4 MM |
| 7 | 61321574 | SPACING BAR |
| 8 | 61317877 | PIPE CLIP |
| 9 | 61321278 | WASHER �8,4 MM |
| 10 | 16043524 | SCREW M8X22 MM |
| 11 | 17094914 | WASHER 8x16 |
| 12 | 16605824 | HEXAGON BOLT M8X35 MM |
| 13 | 11193874 | WASHER �8X16 MM |
| 14 | 13680011 | NUT |
| 15 | 61586093 | OIL NOZZLE |
| 16 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 17 | 17799374 | SPRING WASHER �6X12 MM |
| 18 | 17037931 | HEXAGON NUT M8X1,25 |
| 19 | 98442879 | PRESSURE SWITCH SIPEA |
| 20 | 98474308 | SEAL GASKET �14X22 MM |
| 21 | 61319226 | BANJO COUPLING |
| 22 | 61319225 | SCREW CONNECTOR |
| 23 | 99484667 | TRANSMITTER |
