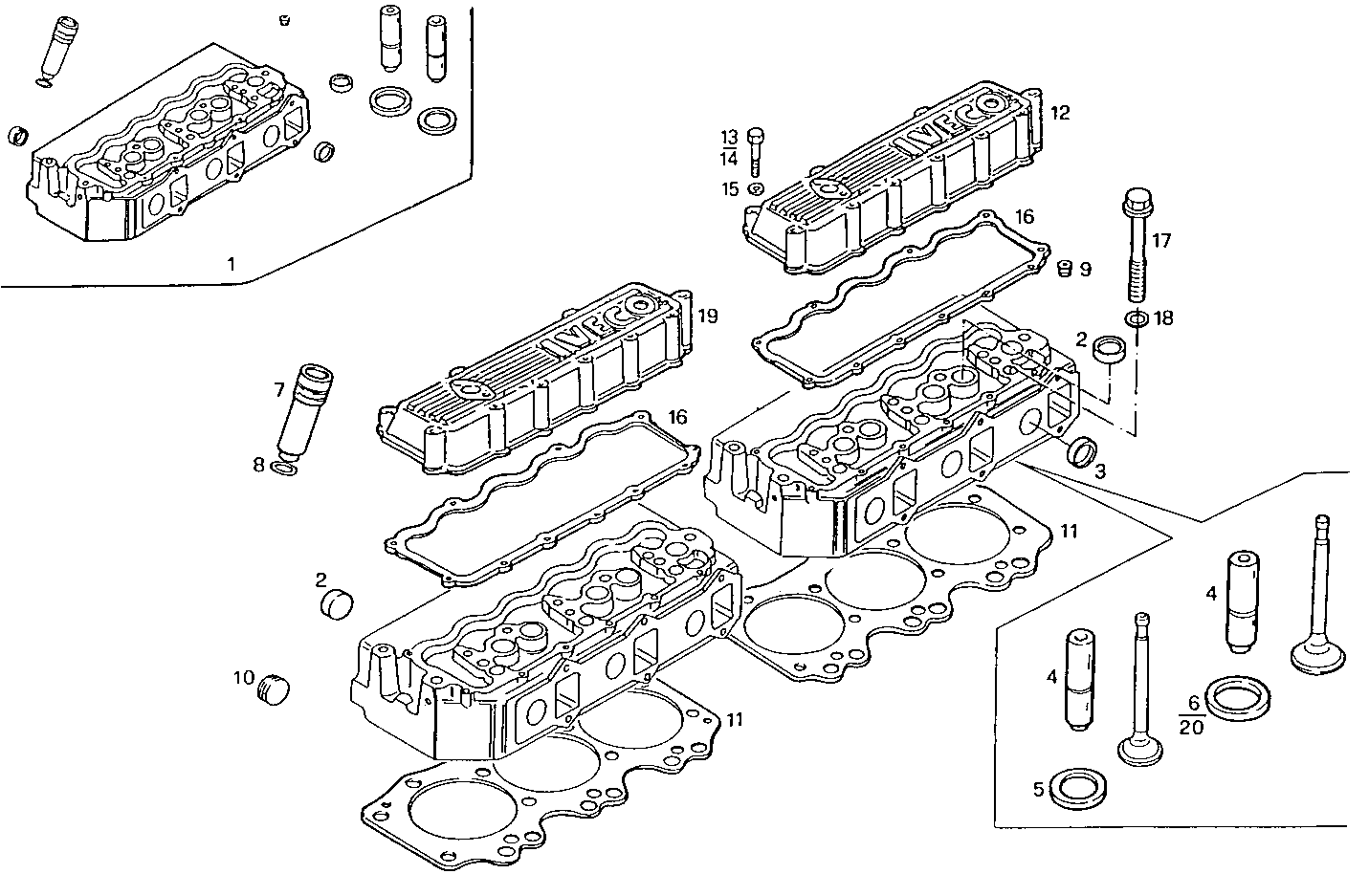

| Item |
Part number |
Description |
|
1 |
61320860 |
CYLINDER HEAD ASSY |
|
2 |
16990870 |
LOCK PLUG Ø28 MM |
|
3 |
16991070 |
LOCK PLUG Ø32 MM |
|
4 |
61585072 |
VALVE GUIDE |
|
5 |
61315085 |
VALVE SEAT STD. EXHAUST |
|
6 |
61319629 |
VALVE SEAT STD. INLET GOETZE |
|
7 |
61315088 |
NOZZLE HOLDER SEAT |
|
8 |
61582822 |
O-RING |
|
9 |
61584412 |
LOCK PLUG |
|
10 |
14326101 |
THREADED PLUG M8X1,25 |
|
11 |
61319085 |
CYL.HEAD GASKET |
|
12 |
61316819 |
CYL. HEAD COVER |
|
13 |
16606224 |
HEXAGON BOLT M8X55 MM |
|
14 |
16046724 |
SCREW |
|
15 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
16 |
61319394 |
HEAD COVER GASKET |
|
17 |
4815557 |
CYL.HEAD STUD |
|
18 |
61315656 |
WASHER |
|
19 |
61316199 |
CYL. HEAD COVER |
|
20 |
61321083 |
VALVE SEAT STD. BRICO INLET |
