8460SRC20.10

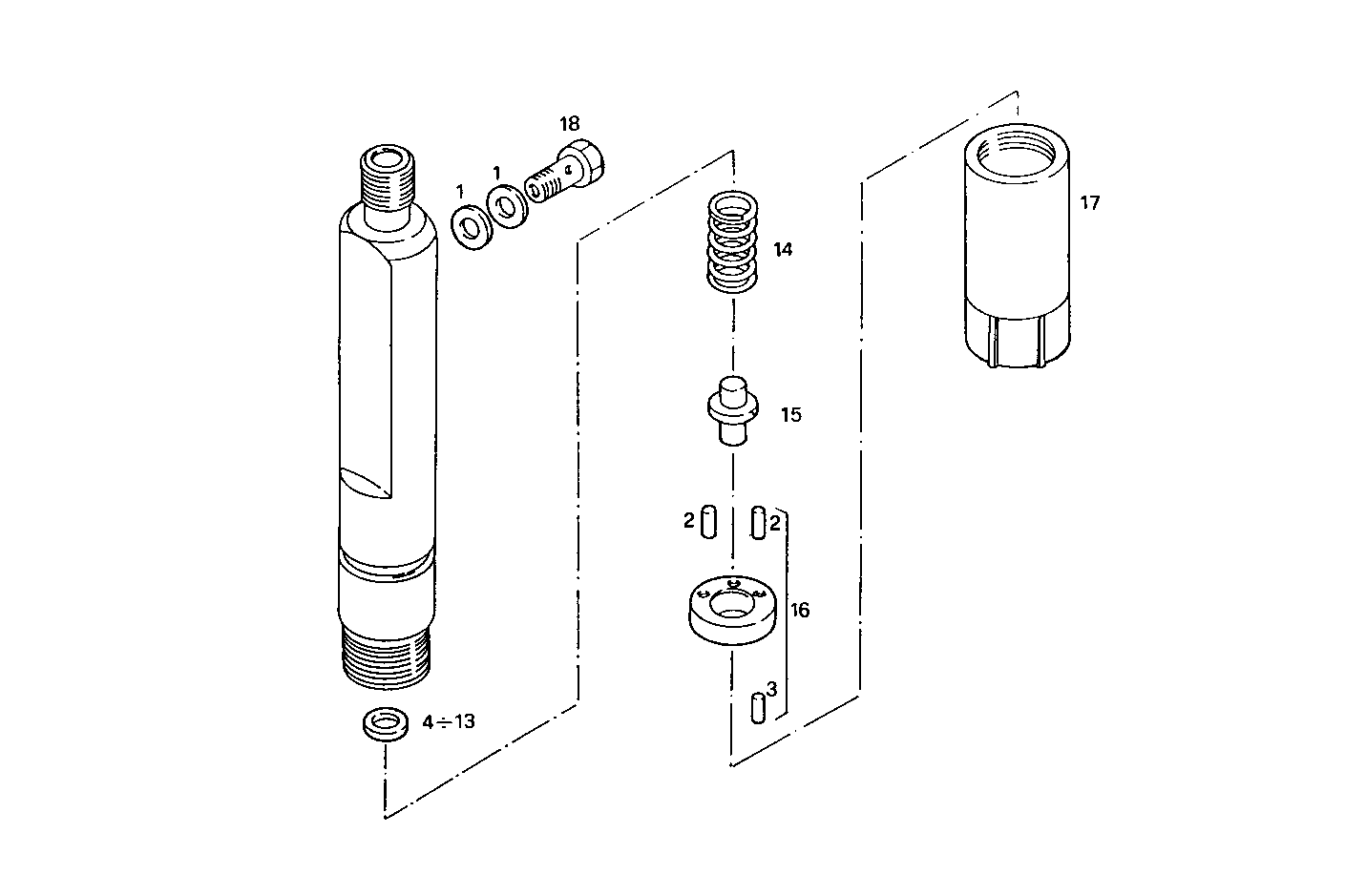

1430.056 NOZZLE HOLDER (COMPONENTS)
| Item |
Part number |
Description |
|
1 |
1118641 |
WASHER Ø6X10 MM |
|
2 |
9982960 |
PARALLEL PIN |
|
3 |
42491772 |
PARALLEL PIN |
|
4 |
42530210 |
SHIM SP=1 MM |
|
5 |
42530211 |
SHIM SP=1,1 MM |
|
6 |
42530212 |
SHIM SP=1,2 MM |
|
7 |
42530213 |
SHIM SP=1,3 MM |
|
8 |
42530214 |
SHIM SP=1,4 MM |
|
9 |
42530215 |
SHIM SP=1,5 MM |
|
10 |
42530216 |
SHIM SP=1,6 MM |
|
11 |
42530217 |
SHIM SP=1,7 MM |
|
12 |
42530218 |
SHIM SP=1,8 MM |
|
13 |
42530219 |
SHIM SP=1,9 MM |
|
14 |
42530220 |
SPRING |
|
15 |
42530221 |
WASHER/PLATE |
|
16 |
42530222 |
RING |
|
17 |
42530223 |
FASTENING RING |
|
18 |
93190600 |
SCREW CONNECTOR M6 |
