8460SRC20.10

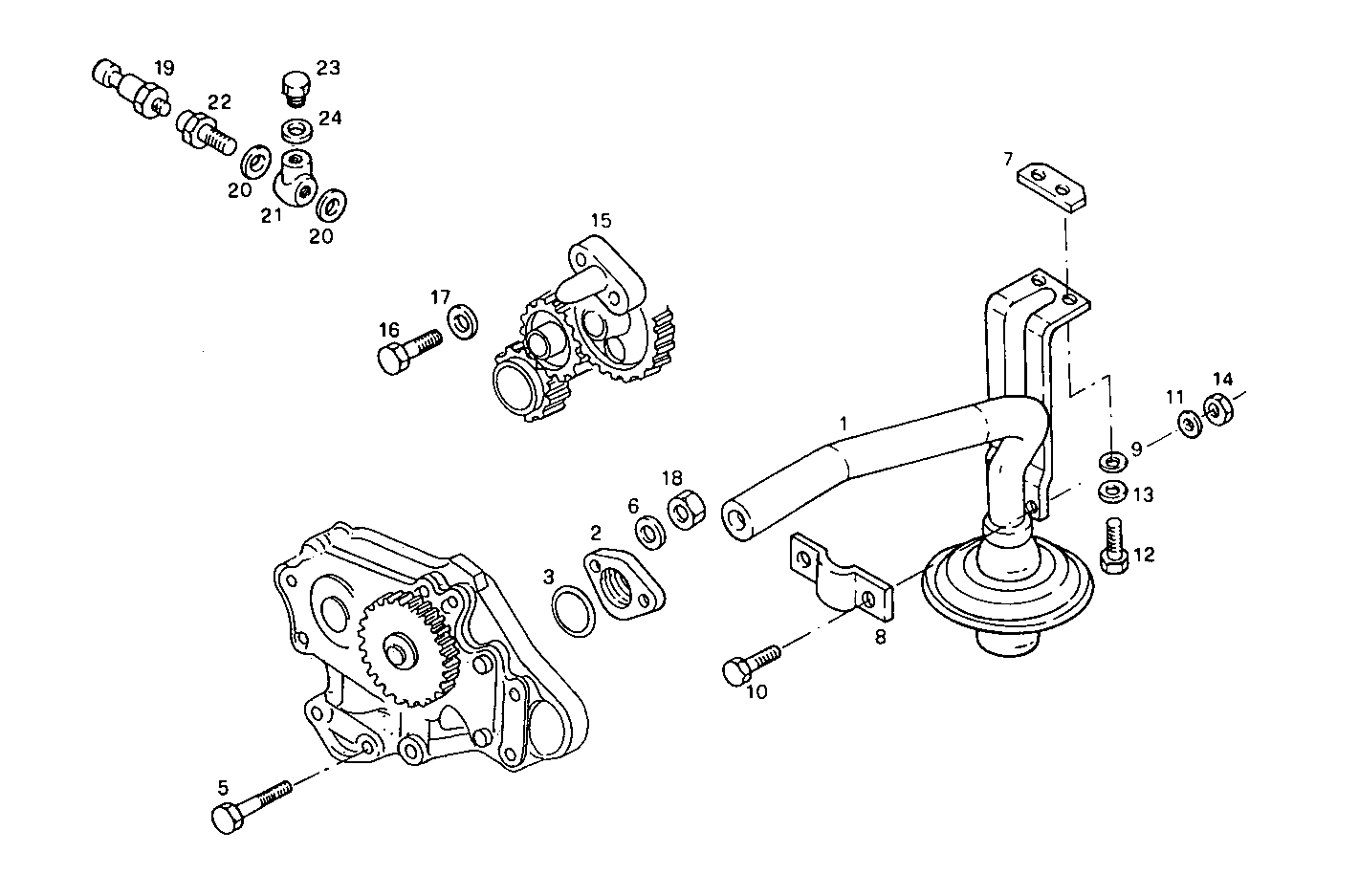

3010.154 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 61321303 SUCTION STRAINER
2 61317784 FLANGE
3 17288981 O-RING Ø29,74 MM SP=3,53 MM
5 16606424 HEXAGON BOLT M8X65 MM
6 11194074 WASHER Ø8,4 MM
7 61321574 SPACING BAR
8 61317877 PIPE CLIP
9 61321278 WASHER Ø8,4 MM
10 16043524 SCREW M8X22 MM
11 17094914 WASHER 8x16
12 16605824 HEXAGON BOLT M8X35 MM
13 11193874 WASHER Ø8X16 MM
14 13680011 NUT
15 61586093 OIL NOZZLE
16 16603724 HEXAGON BOLT M6X20 MM (8.8)
17 17799374 SPRING WASHER Ø6X12 MM
18 17037931 HEXAGON NUT M8X1,25
19 98442879 PRESSURE SWITCH SIPEA
20 98474308 SEAL GASKET Ø14X22 MM
21 61319226 BANJO COUPLING
22 61319225 SCREW CONNECTOR
23 11903211 LOCK PLUG M12X1,25
24 98474306 WASHER Ø12X20 MM SP=1,9 MM
