8460SRC20.10

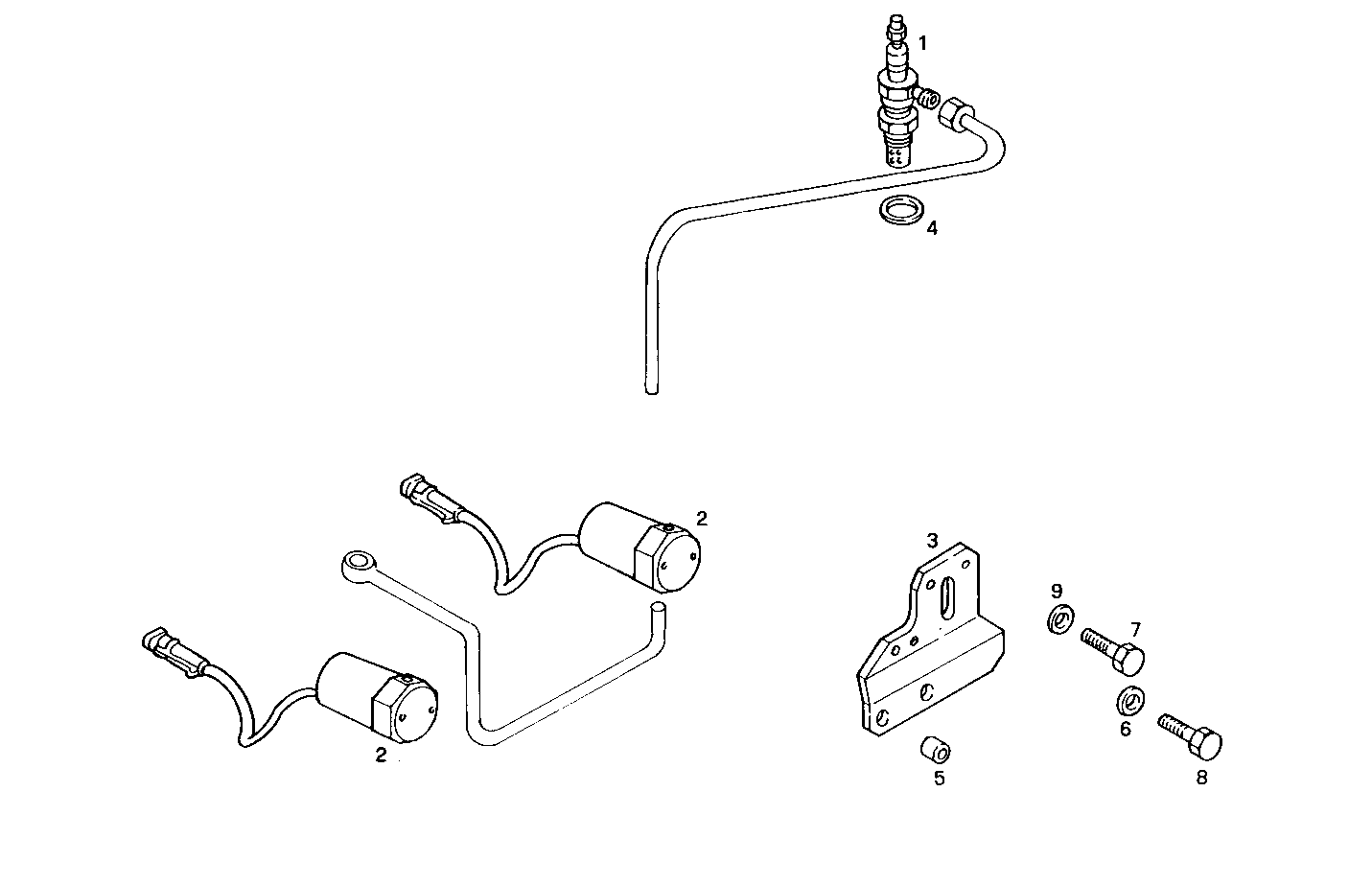

3650.026 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 99444499 | THERMO-STARTER |
| 2 | 98494898 | ELECT.V.VE.PREHEAT |
| 3 | 61321870 | RETAINER |
| 4 | 10257460 | SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...] |
| 5 | 61319288 | SPACING BAR |
| 6 | 17798174 | SPRING WASHER Ø6,1X11,8 MM |
| 7 | 16602024 | SCREW M5X12 MM (8.8) |
| 8 | 16603524 | SCREW M6X12 MM (8.8) |
| 9 | 17798074 | WASHER Ø5X9,2X1 MM |
