8460SRC20.10

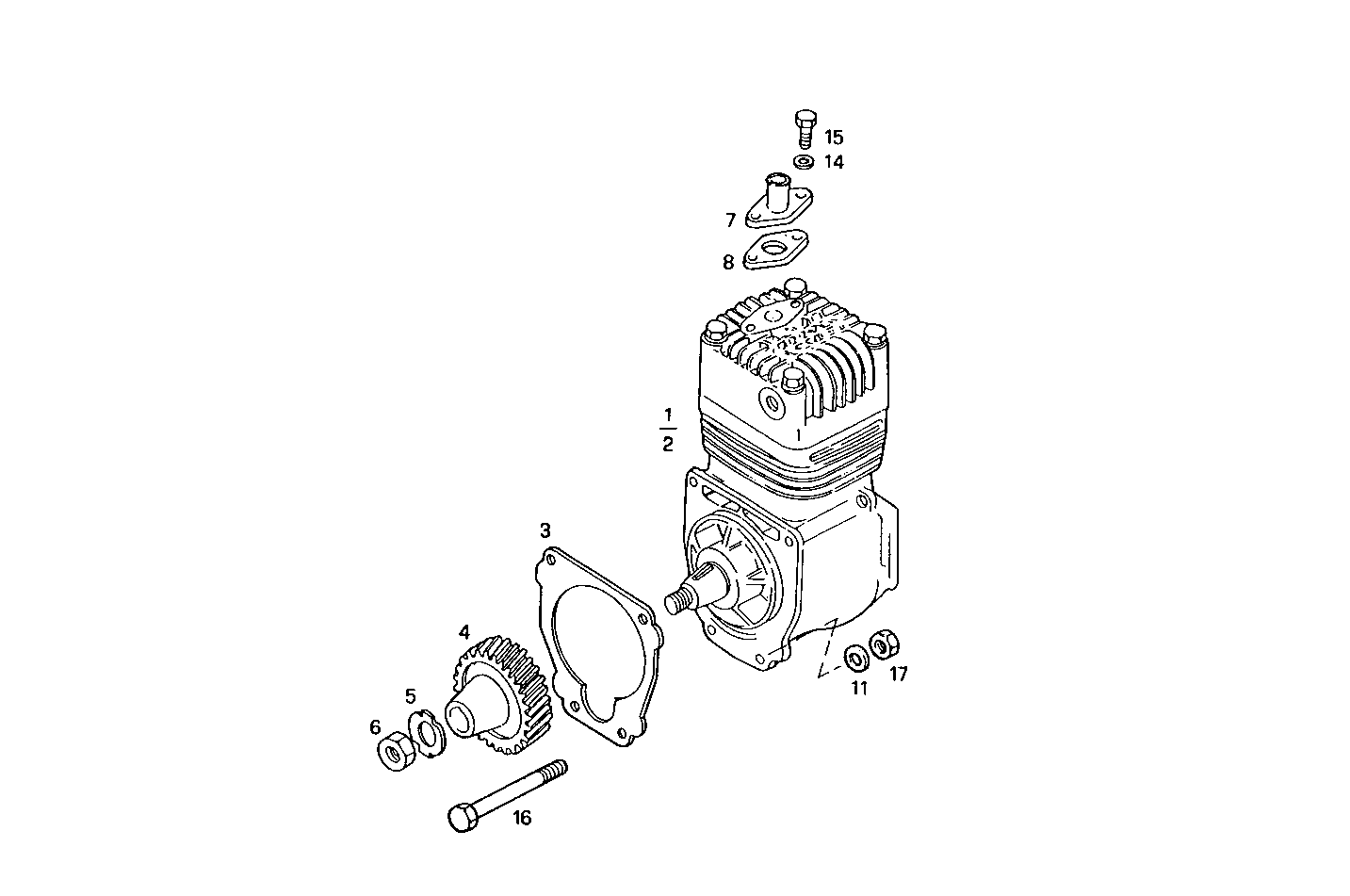

3800.022 AIR COMPRESSOR
| Item | Part number | Description |
|---|---|---|
| 1 | 500310901 | AIR COMPRESSOR ASSY KNORR |
| 2 | 500310905 | AIR COMPRESSOR ASSY WABCO |
| 3 | 61319045 | FLAT ENGINE GASKET |
| 4 | 61316311 | COMP. DRIVE GEAR |
| 5 | 4709364 | LOCKING PLATE |
| 6 | 99471892 | HEXAGON NUT |
| 7 | 61320307 | SUCTION LINE |
| 8 | 61319096 | FLAT ENGINE GASKET |
| 9 | 15972624 | HEXAGON BOLT |
| 10 | 15973424 | SCREW |
| 11 | 11198374 | SPRING WASHER Ø10X20 MM |
| 14 | 11198074 | SPRING WASHER Ø8X15 MM |
| 15 | 16605524 | HEXAGON BOLT M8X20 MM |
| 16 | 15972124 | HEXAGON BOLT M10X115 MM |
| 17 | 17038221 | HEXAGON NUT M10 |
