8460SRC20.10

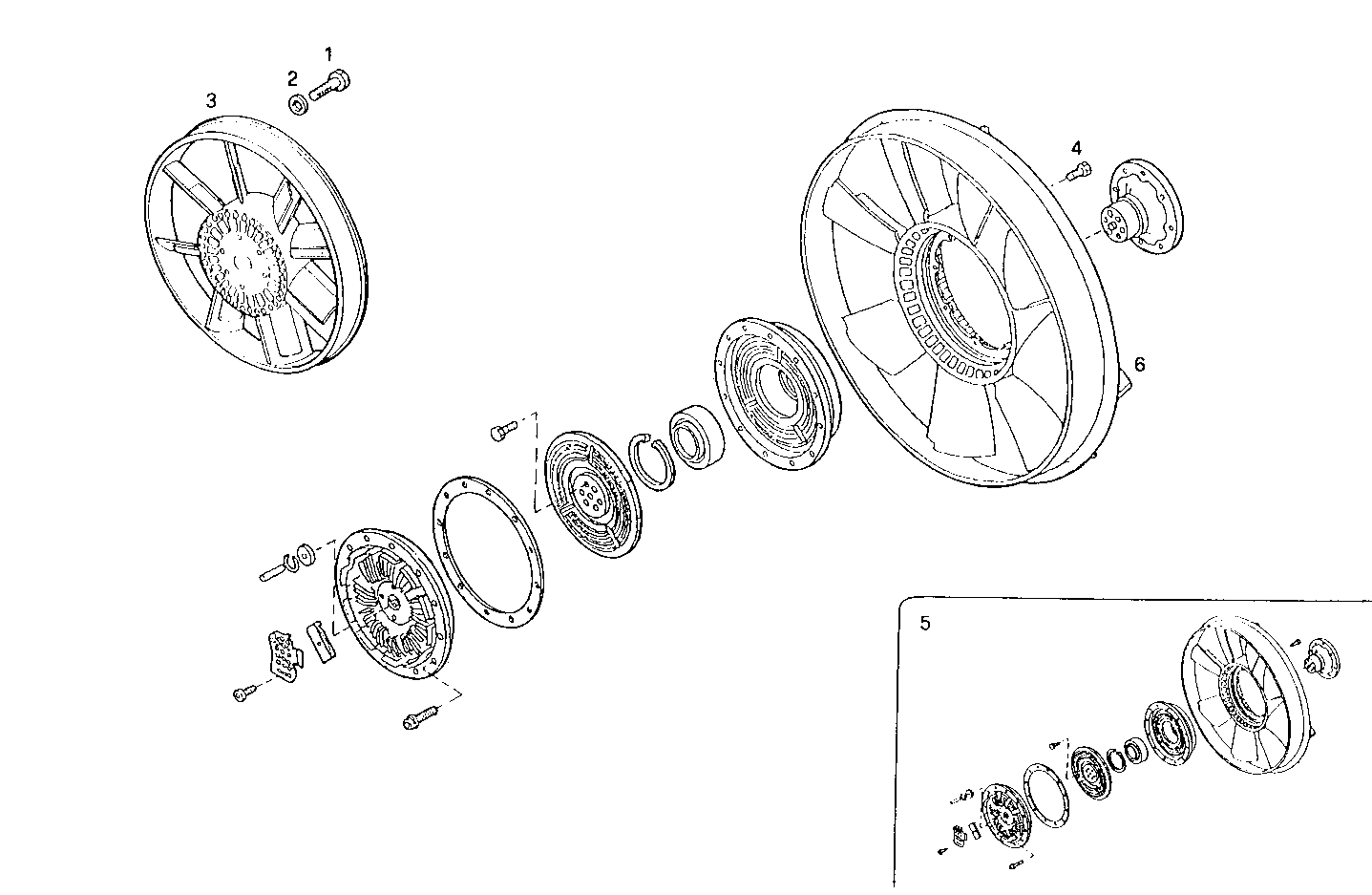

A08100008 VISCOSTATIC PULLER FAN - on water pump
| Item | Part number | Description |
|---|---|---|
| 1 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 2 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 3 | 98443041 | BLOWER Ø654 MM |
| 4 | 16605424 | SCREW M8X16 MM (8.8) |
| 5 | 93190925 | BLOWER INSERT |
| 6 | 98458607 | VANE ASSY. EIGHT BLADES |
