8460SRC21.20A001

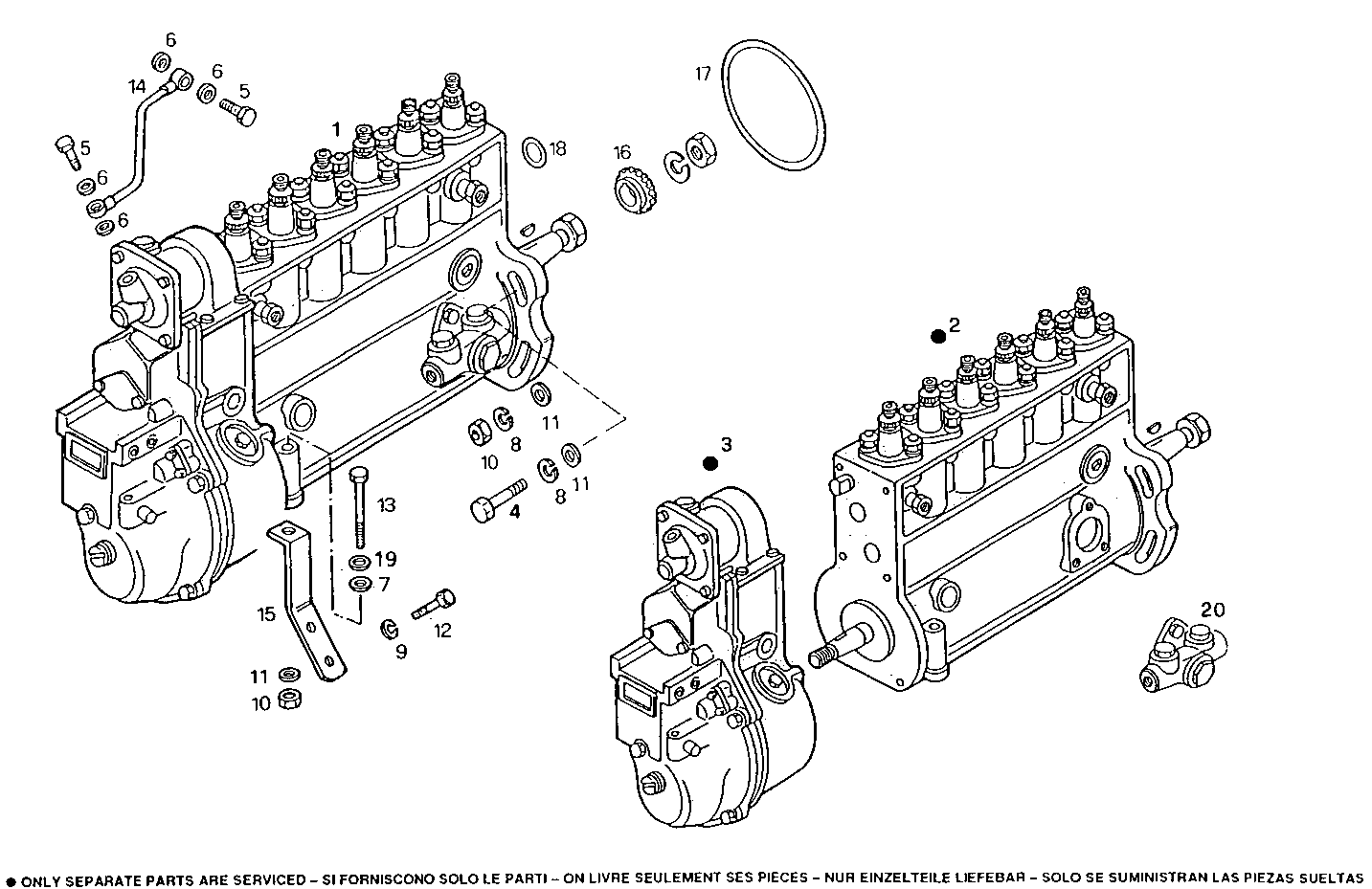

1400.210 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 98496921 | INLINE INJECT.PUMP ASSY |
| 4 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 5 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 6 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 7 | 17095114 | WASHER Ø10X21 MM |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 17089574 | WASHER Ø8X16 MM |
| 10 | 17038221 | HEXAGON NUT M10 |
| 11 | 61320297 | WASHER |
| 12 | 16043324 | HEXAGON BOLT M8X18 MM |
| 13 | 15971721 | SCREW M10X1,25X95 |
| 14 | 61319078 | FUEL LINE |
| 15 | 61329215 | SUPPORT |
| 16 | 61319214 | INJECT.PUMP BUSH |
| 17 | 61317062 | O-RING |
| 18 | 61317701 | O-RING Ø3,2X10 MM |
| 19 | 17090274 | WASHER Ø10X20 MM |
| 20 | 93160510 | FUEL PUMP OPT. |
