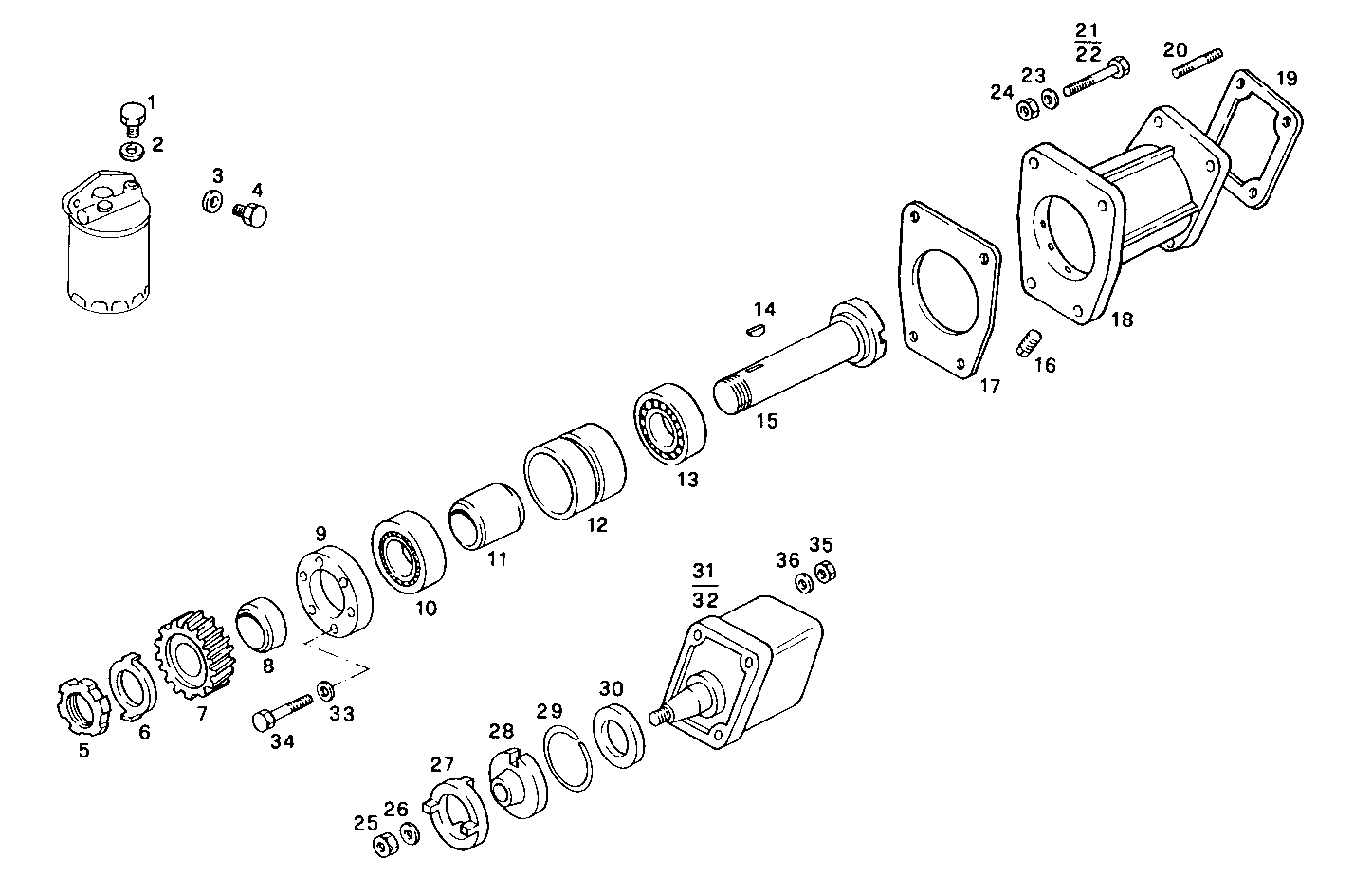

| Item |
Part number |
Description |
|
1 |
4595833 |
THREADED PLUG M20X1,5 |
|
2 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
3 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
|
4 |
16992511 |
THREADED PLUG M18X1,5 |
|
5 |
17324310 |
FASTENING RING |
|
6 |
4513025 |
LOCKING PLATE |
|
7 |
8026292 |
GEAR |
|
8 |
61586413 |
SPACING BAR |
|
9 |
61586412 |
COVER |
|
10 |
26798470 |
DRIVE BEARING |
|
11 |
61586410 |
SPACING BAR |
|
12 |
61586411 |
SPACING BAR |
|
13 |
20705250 |
DRIVE BEARING |
|
14 |
17221220 |
KEY 5X9 MM |
|
15 |
61586409 |
SHAFT |
|
16 |
16996011 |
PLUG |
|
17 |
4864032 |
FLAT ENGINE GASKET |
|
18 |
8026822 |
SUPPORT |
|
19 |
4863974 |
FLAT ENGINE GASKET |
|
20 |
17364824 |
STUD M6X30 MM |
|
21 |
11234721 |
HEXAGON BOLT M10X1,25X45 MM |
|
22 |
15972021 |
HEXAGON BOLT M10X1,25X110 MM |
|
23 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
24 |
17038221 |
HEXAGON NUT M10 |
|
25 |
8273919 |
NUT BOSCH |
|
26 |
8273920 |
WASHER BOSCH |
|
27 |
4526899 |
RING |
|
28 |
4547495 |
CONNECTOR SLEEVE |
|
29 |
4526900 |
CIRCLIP |
|
30 |
4543246 |
CENTERING RING |
|
31 |
5169772 |
HYDRAULIC PUMP ASSY PLESSEY A31 |
|
32 |
5179719 |
HYDRAULIC PUMP ASSY BOSCH |
|
33 |
17088474 |
WASHER Ø6X12 MM |
|
34 |
16689224 |
SOCKET-HEAD SCREW M6X20 MM |
|
35 |
17037821 |
HEXAGON NUT M6X1 |
