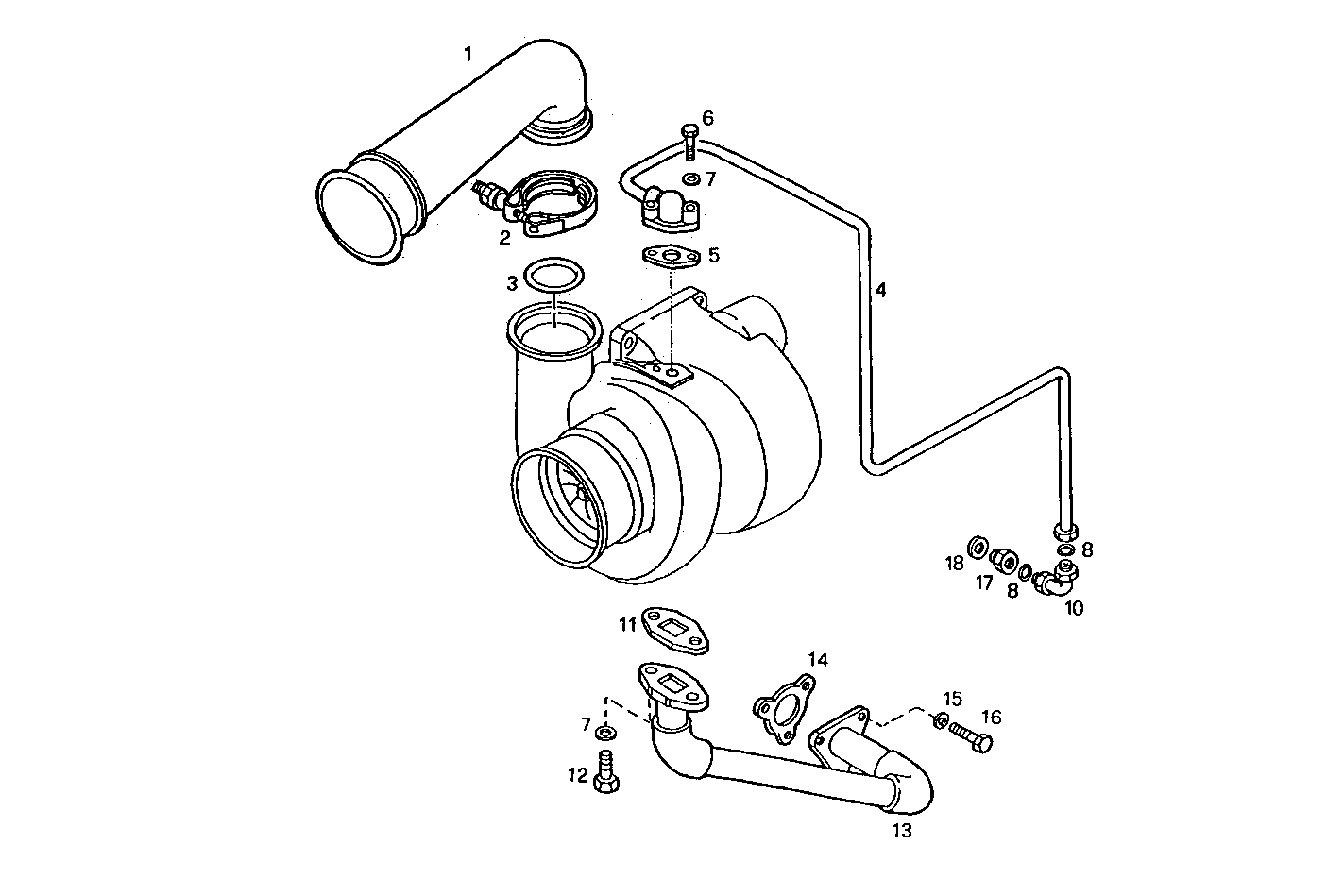

| Item |
Part number |
Description |
|
1 |
61318365 |
AIR PIPE/DUCT |
|
2 |
4800661 |
CLIP Ø 75 mm. |
|
3 |
17284681 |
O-RING Ø61,6 MM SP=2,62 MM |
|
4 |
8028368 |
OIL LINE |
|
5 |
61318303 |
GASKET |
|
6 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
7 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
8 |
8024647 |
GASKET Ø8 MM |
|
9 |
98474309 |
WASHER Ø16X24 MM SP=1,9 MM |
|
10 |
16504111 |
ELBOW COUPLING M18X1,5 |
|
11 |
98412509 |
FLAT ENGINE GASKET |
|
12 |
16043524 |
SCREW M8X22 MM |
|
13 |
61320248 |
OIL LINE |
|
14 |
61319047 |
FLAT ENGINE GASKET |
|
15 |
11193874 |
WASHER Ø8X16 MM |
|
16 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
17 |
16500311 |
PIPE SOCKET M16X1,5/M18X1,5 |
|
18 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
