8460SRC21.20A002

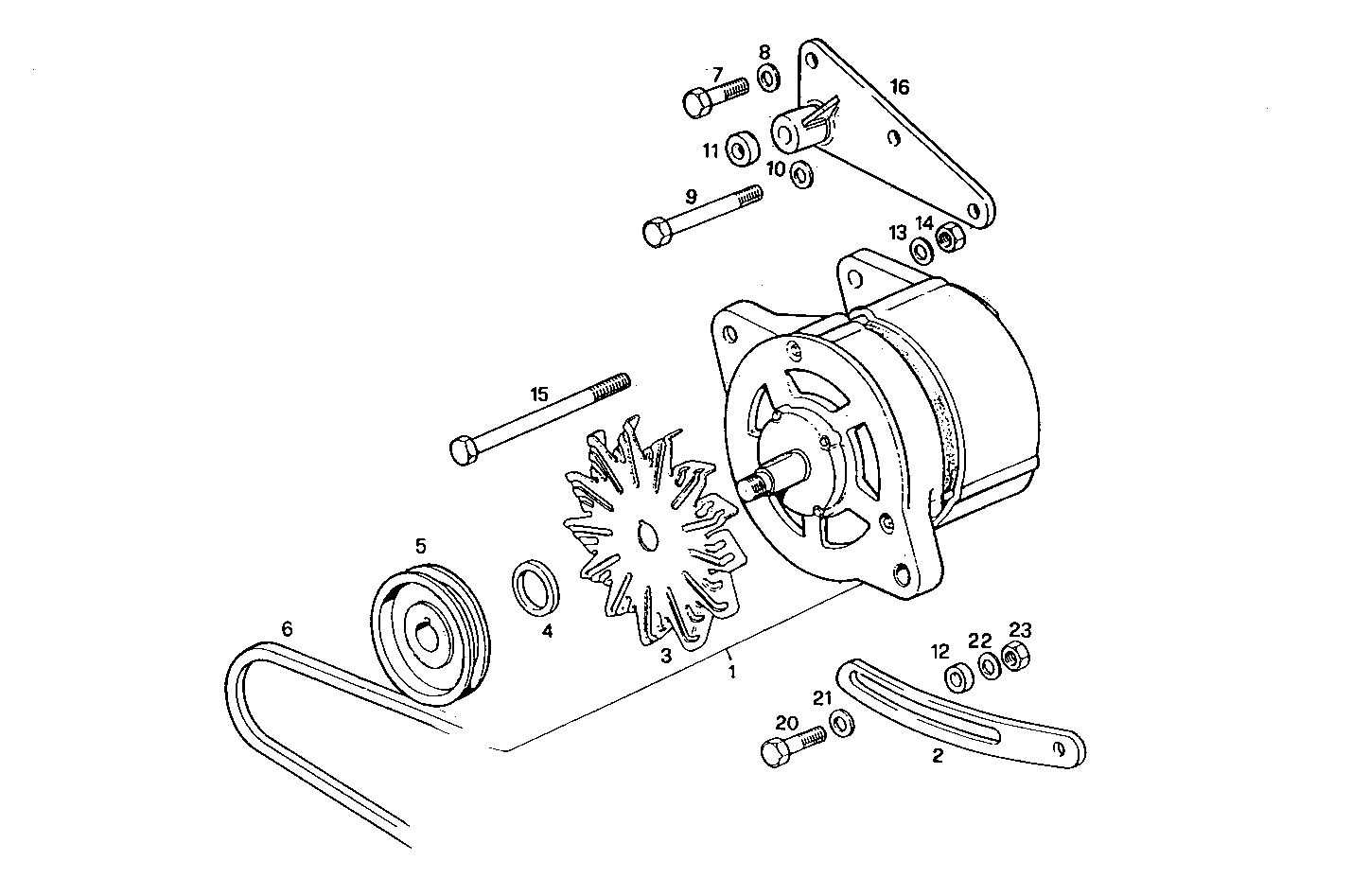

4000.113 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 98424739 | ALTERNATOR ASSY |
| 2 | 61318409 | BELT TENSIONER |
| 3 | 4757196 | GENERATOR FAN BOSCH |
| 4 | 98454596 | SPACING BAR BOSCH |
| 5 | 98418920 | GENERATOR PULLEY VALEO |
| 6 | 98459454 | ALTERNATOR BELT |
| 7 | 11306921 | SCREW M10X1,25X30 |
| 8 | 17090174 | SPRING WASHER �10X20 MM |
| 9 | 16606824 | HEXAGON BOLT M8X100 MM |
| 10 | 17094914 | WASHER 8x16 |
| 11 | 8114378 | SPACING BAR |
| 12 | 4513436 | SUPPORT RING �10X21X2 MM |
| 13 | 17090274 | WASHER �10X20 MM |
| 14 | 13680121 | NUT M10X1,25 |
| 15 | 15541921 | HEXAGON BOLT M12X1,25X130 MM |
| 16 | 8018854 | SUPPORT |
| 17 | 17097124 | WASHER 10x21 |
| 18 | 17095114 | WASHER �10X21 MM |
| 19 | 17038221 | HEXAGON NUT M10 |
| 20 | 11307021 | HEXAGON BOLT M10X40 MM |
