8460SRC21.20A002

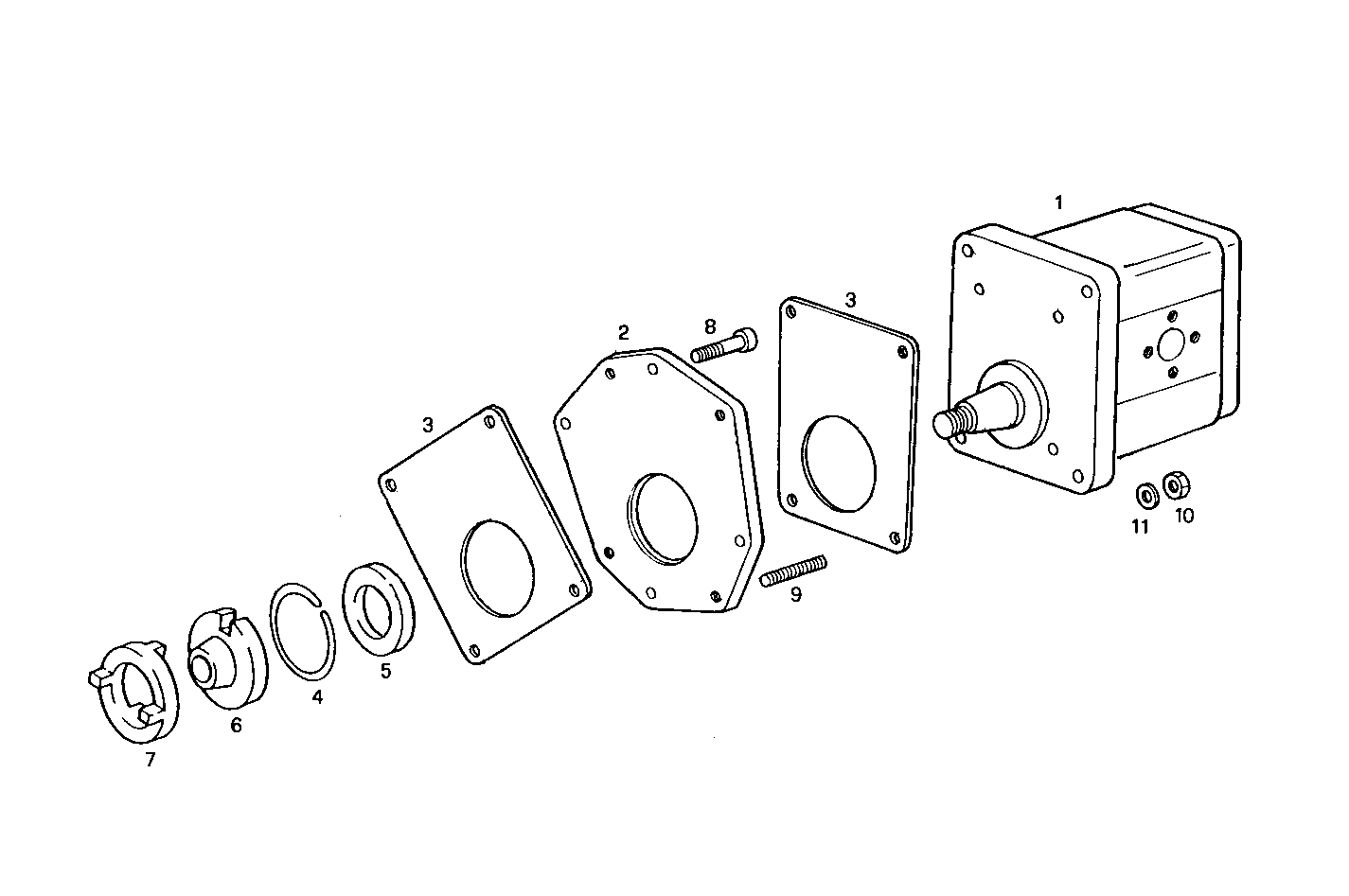

4220.018 POWER STEERING PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8023525 | HYDRAULIC PUMP ASSY |
| 2 | 8013376 | SUPPORT |
| 3 | 4850986 | FLAT ENGINE GASKET |
| 4 | 17082776 | SPRING LOCKWASHER Ø23,7 MM |
| 5 | 4609538 | CENTERING RING |
| 6 | 4621358 | RING |
| 7 | 8018856 | COUPLER |
| 8 | 16689124 | CYLIND-HEAD SCREW M6X16 MM |
| 9 | 16745224 | STUD M6X12X30 |
| 10 | 17037821 | HEXAGON NUT M6X1 |
| 11 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
