8460SRE10.00

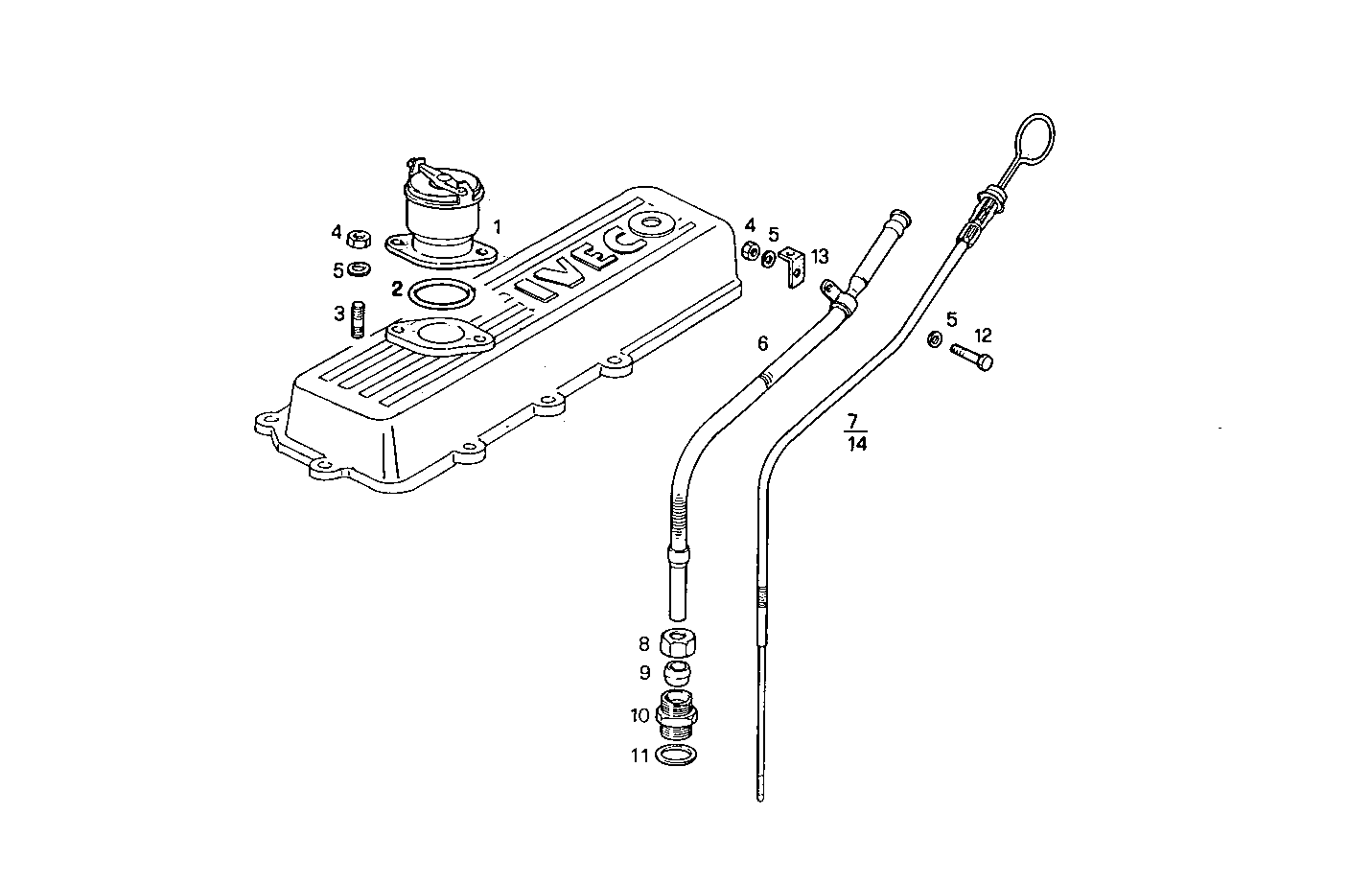

2710.040 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 8020561 | FILLER NECK |
| 2 | 17290081 | O-RING Ø56,74 MM SP=3,53 MM |
| 3 | 16746624 | STUD M8X20 MM (8.8) |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 8008820 | ROD GUIDE |
| 7 | 8015960 | OIL DIPSTICK [from 02-96] |
| 8 | 4641220 | NUT |
| 9 | 4641221 | RING |
| 10 | 61315370 | THREADED UNION |
| 11 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 12 | 16605524 | HEXAGON BOLT M8X20 MM |
| 13 | 8011585 | RETAINER |
| 14 | 8021385 | OIL DIPSTICK [up to 02-96] |
