8460SRE10.00

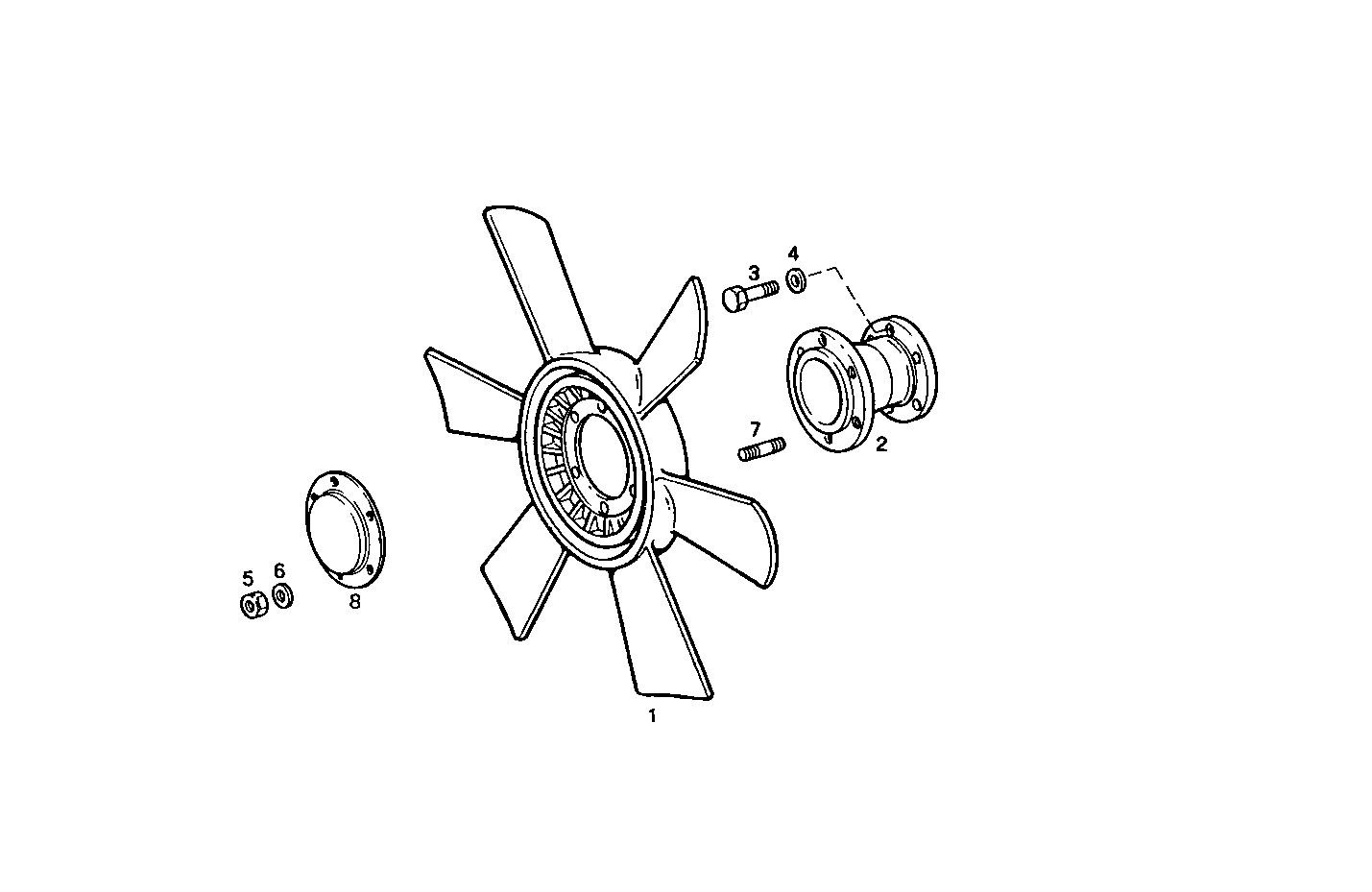

A08000037 PULLER FAN - high position
| Item | Part number | Description |
|---|---|---|
| 1 | 4935523 | FAN Ø650 MM |
| 2 | 8018279 | SPACING BAR |
| 3 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 4 | 17094914 | WASHER 8x16 |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16729224 | STUD M8X16 MM |
| 8 | 8021969 | PROTECTION |
