8460SRE10.00

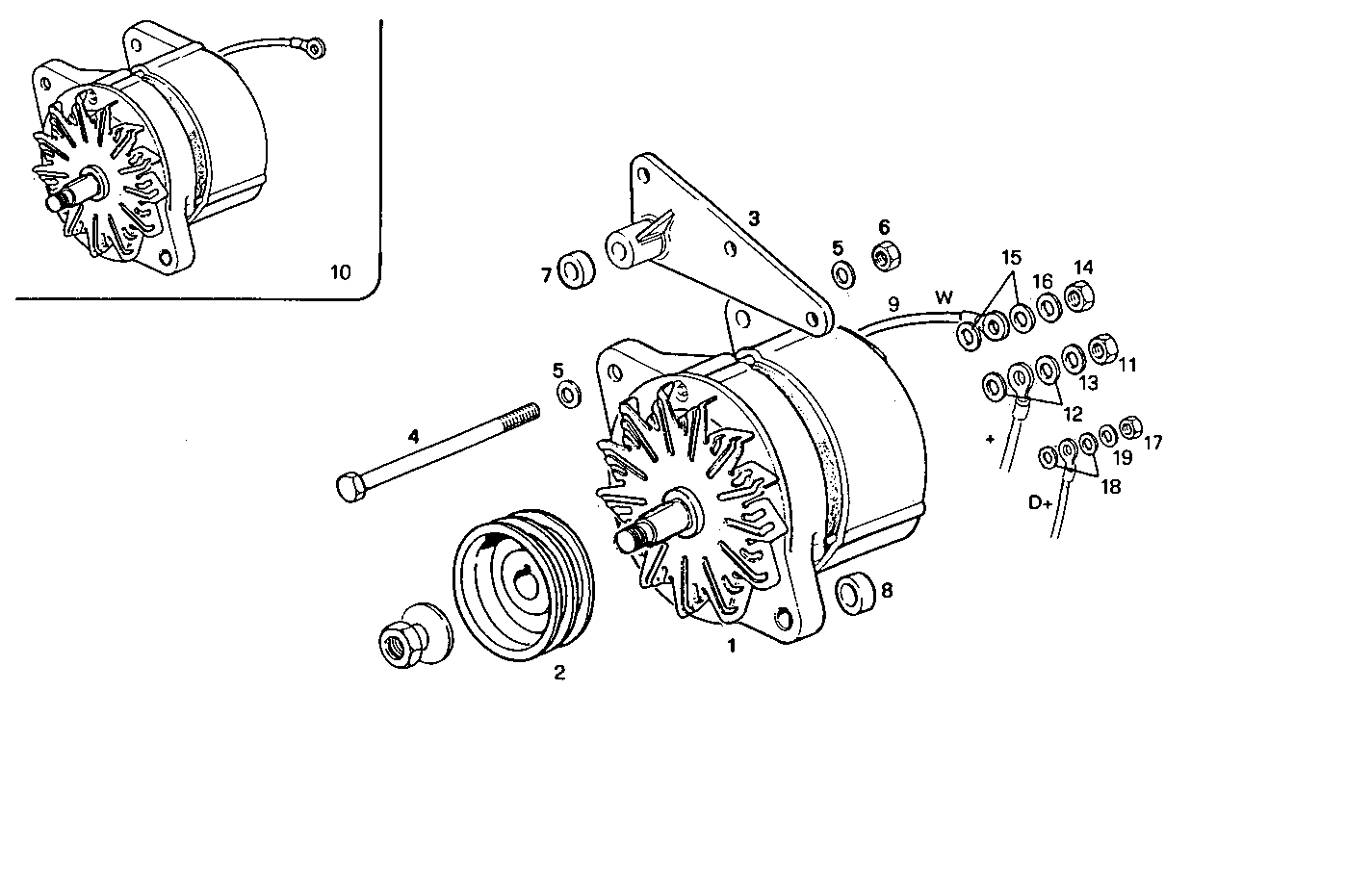

A14010007 SELF-REGULATED ALTERNATOR - 24V 80A (W)
| Item |
Part number |
Description |
|
1 |
98424453 |
ALTERNATOR ASSY BOSCH |
|
2 |
98475244 |
PULLEY |
|
3 |
8018338 |
SUPPORT |
|
4 |
16609124 |
HEXAGON BOLT M10X130 MM |
|
5 |
17095104 |
WASHER Ø10X21X2 MM |
|
6 |
17157121 |
HEXAGON NUT M10X1,5 |
|
7 |
8015577 |
SPACING BAR SP=8,00 MM |
|
8 |
7303601 |
SPACING BAR SP=10,00 MM |
|
9 |
8019531 |
WIRE/CABLE W |
|
10 |
8020683 |
ALTERNATOR ASSY |
|
11 |
17037931 |
HEXAGON NUT M8X1,25 |
|
12 |
17094914 |
WASHER 8x16 |
|
13 |
17494834 |
WASHER Ø8 MM |
|
14 |
17037721 |
NUT M5X0,8 |
|
15 |
17094504 |
WASHER Ø5,3X10 MM |
|
16 |
10615379 |
TOOTHED WASHER Ø5,3 MM |
|
17 |
17037621 |
HEXAGON NUT M4 |
|
18 |
17094204 |
WASHER Ø4X8X0,8 MM |
|
19 |
10615279 |
WASHER Ø4 MM |
