8460SRE10.00

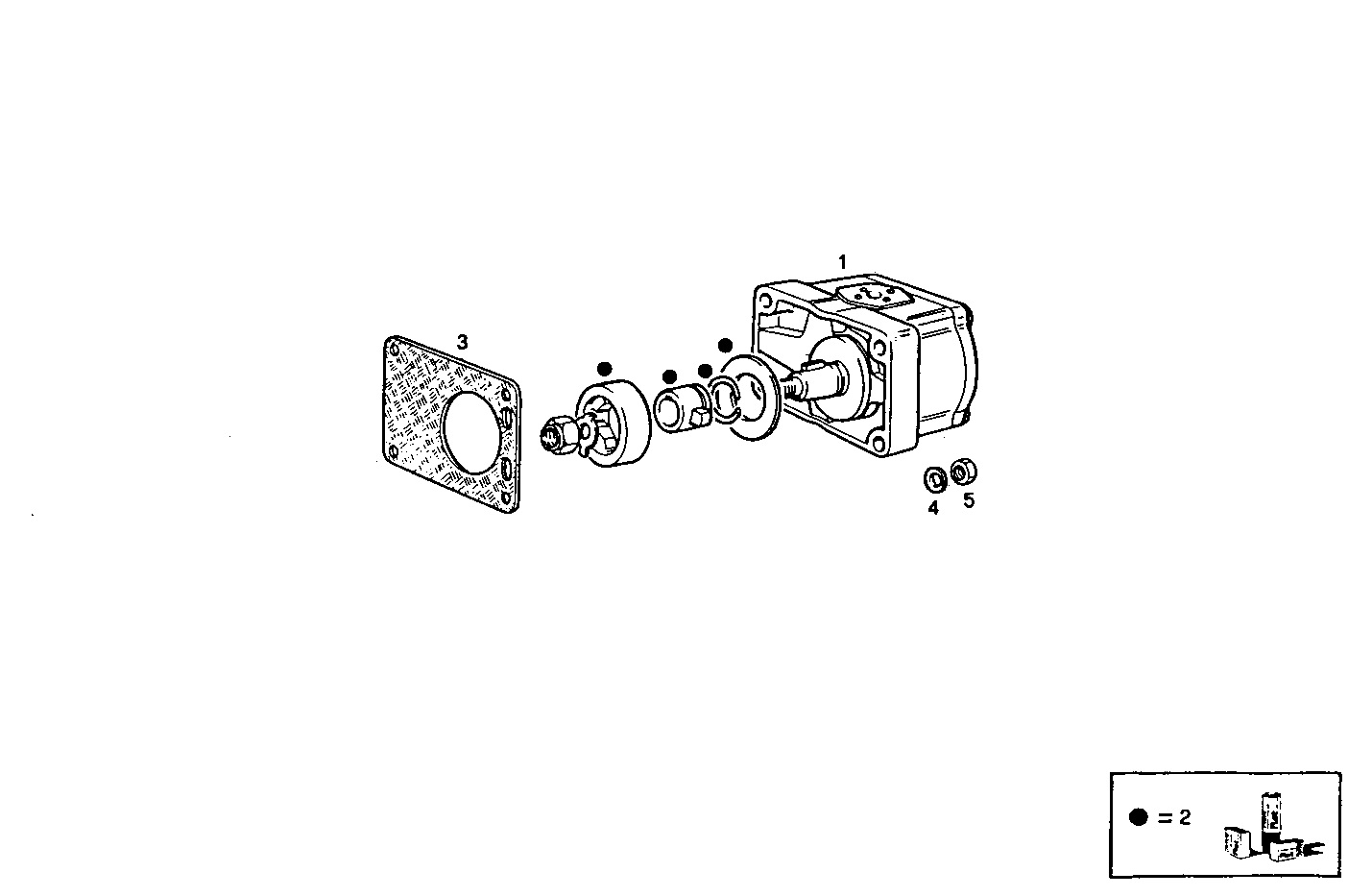

A18050012/02 AIR COMPRESSOR - with hydraulic pump - PLESSEY 25 - 250cc
| Item | Part number | Description |
|---|---|---|
| 1 | 5129478 | OIL PUMP-STEERING ASSY |
| 2 | 8090343 | KIT-HYDRAULIC PUMP |
| 3 | 4850986 | FLAT ENGINE GASKET |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 17037821 | HEXAGON NUT M6X1 |
